Bar light OPT-LIT35032-G
Manufacturer part number: OPT-LIT35032-G
Series: OPT-LIT-Serie (Balkenbeleuchtungen hoher Homogenität)
- Emitting area
- 336 × 26 mm
- Light color
- Green
- Optical design / beam angle
- Diffuse
- Connection
- JST SMR-02V-B
- Supply
- 24 V
- Power consumption
- 13.4 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LIT35032-G |
|---|---|
| Color | Green |
| Voltage | 24 V |
| Power | 13.4 W |
| Weight(KG) | 0.31 kg |
| Stock Code | 11030294110 |
| Leuchtfläche | 336 × 26 mm |
| Dimensions (L x W x H) | 350 × 32 × 24 mm |
| Connection | JST SMR-02V-B |
| Recommended controller | OPT-DPA2024E |
| Optical design | Diffuse |
| Controller required | Recommended |
| Min. bending radius of the cable | 20 mm |
| Housing length | 350 mm |
| Housing width | 32 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

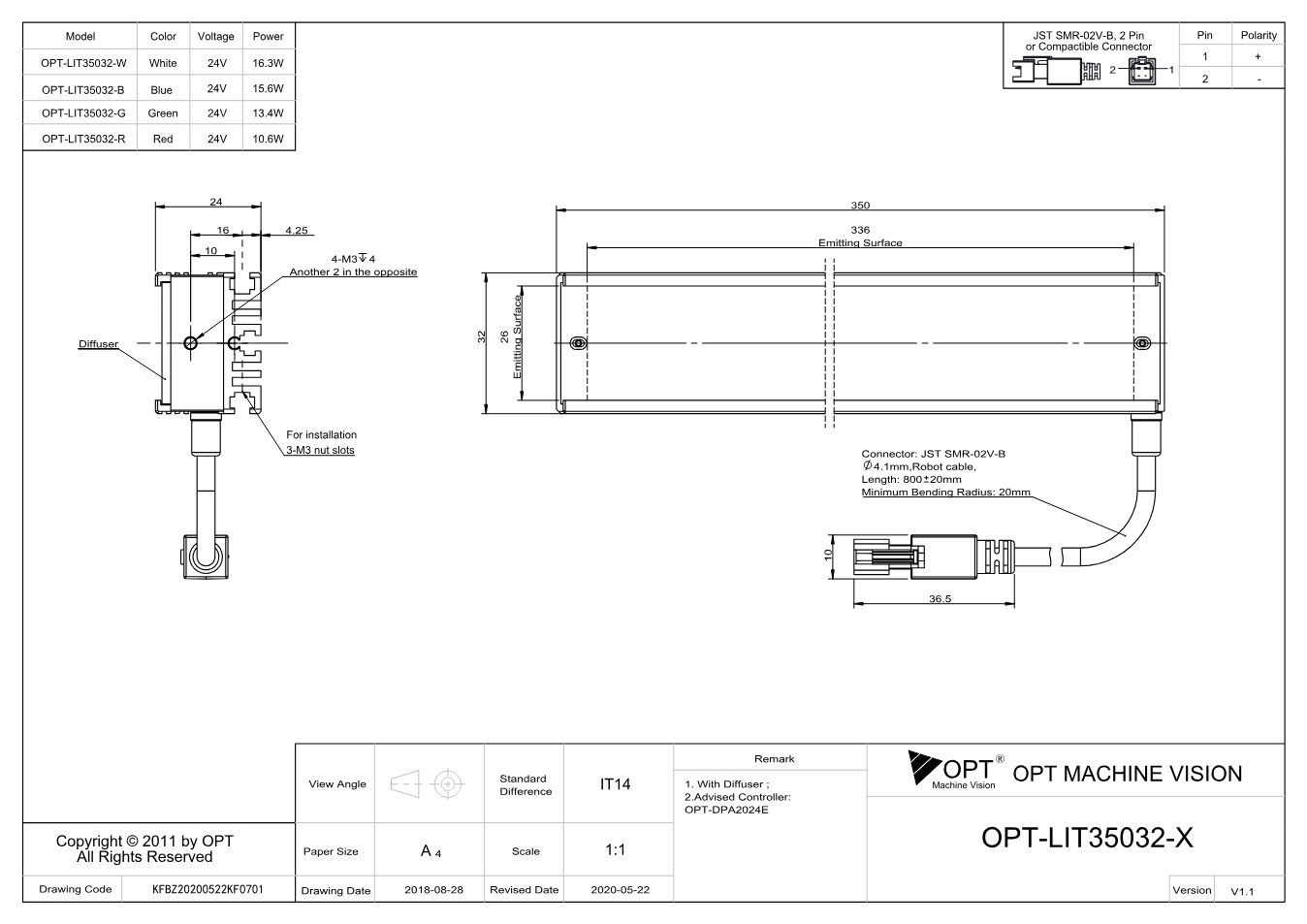

Dimensional drawing
Documents
- Download datasheet
OPT-LIT-Serie (Balkenbeleuchtungen hoher Homogenität) - Serienbroschüre OPT (EN)
Datasheet · EN · 900 KB
- Download
Maßzeichnung OPT-LIT35032 (V1.1) (PDF)
Technical drawing · EN · 92 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-LIT35032-G belongs to the OPT-LIT series from OPT - bar light. Light color: green, input voltage: 24 V, power: 13.4 W, weight: 0.31 kg.
In the OPT-LIT series the LEDs sit behind a diffuser, so that no individual light points are visible. This also allows the bar to be used as a narrow backlight. It can be mounted flexibly via threads or T-slot nuts in the profile; special lengths up to 2000 mm are possible.
Which light is the right one depends not only on design and light color but also on working distance, test object and camera choice. Tell us what you want to inspect and we will match light, lens and controller to one another and give you price and delivery time.
