Bar light OPT-LIT32328-R
Manufacturer part number: OPT-LIT32328-R
Series: OPT-LIT-Serie (Balkenbeleuchtungen hoher Homogenität)
- Emitting area
- 308 × 23.5 mm
- Light color
- Red
- Optical design / beam angle
- Diffuse
- Connection
- JST SMR-02V-B
- Supply
- 24 V
- Power consumption
- 4.8 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LIT32328-R |
|---|---|
| Color | red |
| Voltage | 24 V |
| Power | 4.8 W |
| Leuchtfläche | 308 × 23.5 mm |
| Dimensions (L x W x H) | 323 × 27.5 × 26 mm |
| Connection | JST SMR-02V-B |
| Recommended controller | OPT-AP1024F or OPT-DPA2024E |
| Optical design | Diffuse |
| Controller required | Recommended |
| Cable length | 800 ± 20 mm |
| Min. bending radius of the cable | 20 mm |
| Housing length | 323 mm |
| Housing width | 27.5 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

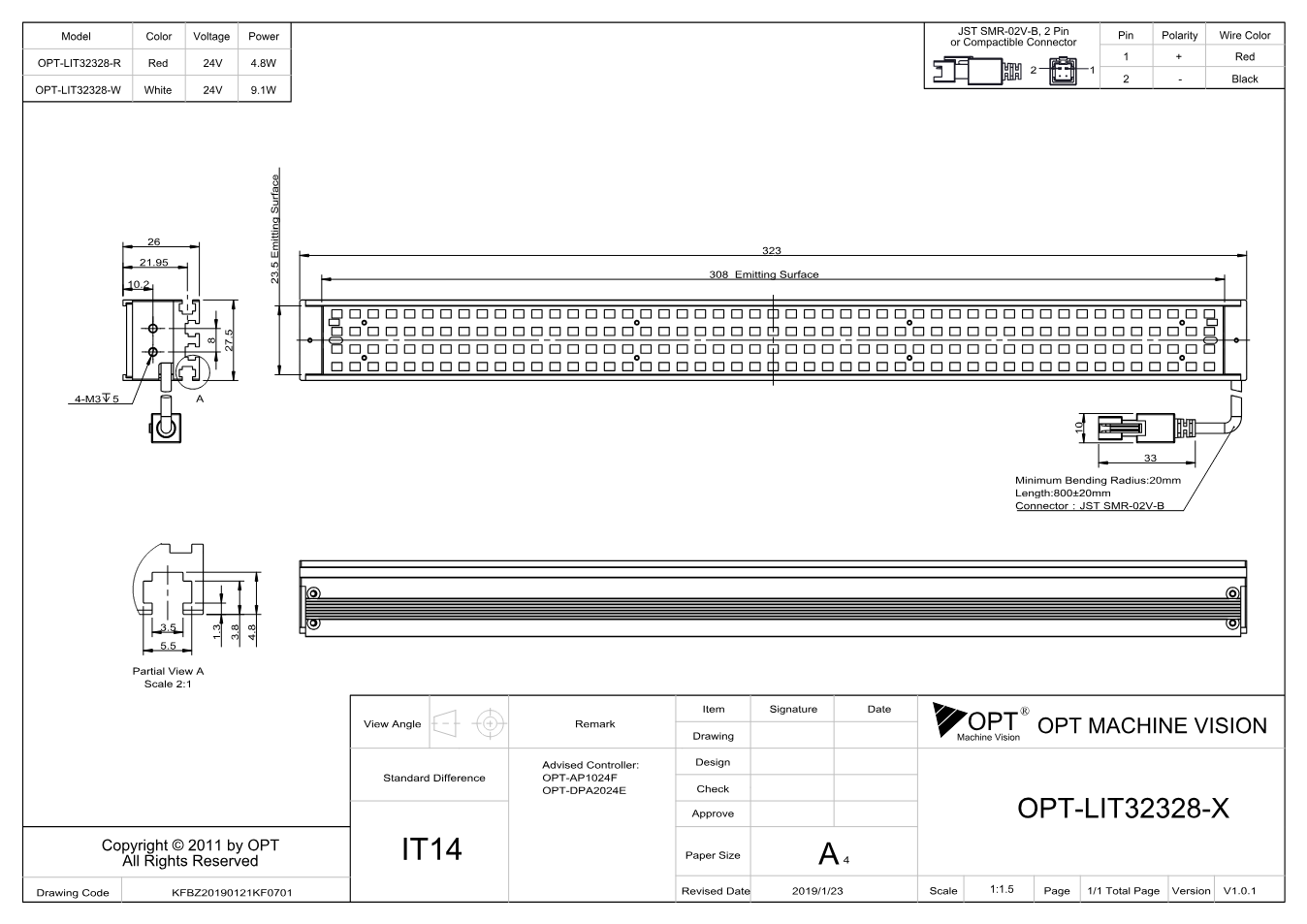

Dimensional drawing
Documents
- Download datasheet
OPT-LIT-Serie (Balkenbeleuchtungen hoher Homogenität) - Serienbroschüre OPT (EN)
Datasheet · EN · 900 KB
- Download
Maßzeichnung OPT-LIT32328 (PDF)
Technical drawing · EN · 136 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-LIT32328-R designates the product type "bar light of high uniformity" within the OPT-LIT series (bar lights of high uniformity). Its central characteristics are light color red, input voltage 24 V, power 4.8 W.
When choosing a machine vision light, not only color and power matter but also the illuminated field, mounting angle, working distance and drive. The dimensional drawing is available as an image and as a PDF.
Tell us your camera, lens and inspection task and we will check the combination and give you price and delivery time for the exact part number.
