di-soric

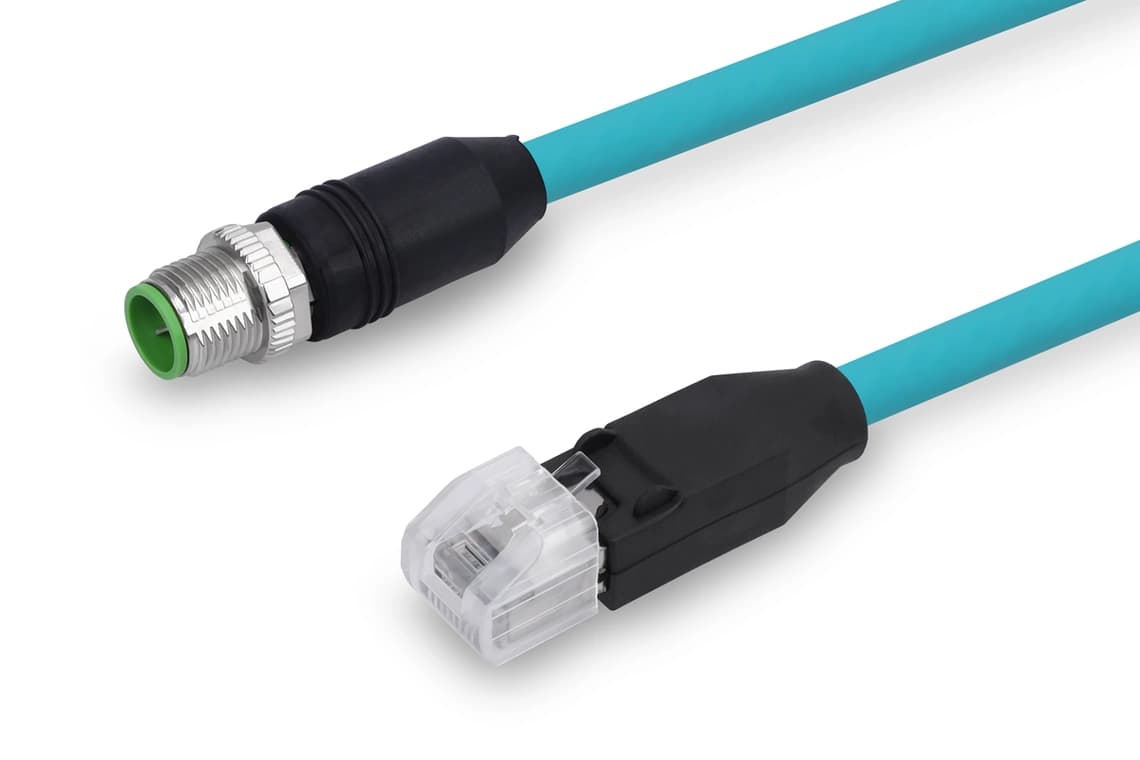

Power / I/O cable VSSM-Z-5RJ45-X

Manufacturer part number: VSSM-Z-5RJ45-X

Series: VSSM-Z

Accessory type: Power / I/O cable
Compatible with: CS
Length: 5000 mm
Connector A: Connector, M12, 8-pin and more
Connector B: Connector, RJ 45, 8-pin
Flexibility: Straight / straight
Ingress protection: IP20

Suitable for: Vision Sensoren CS

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	VSSM-Z-5RJ45-X
Elektrische Merkmale: Betriebsspannung	30 V DC
Mechanische Merkmale: Länge	5000 mm
Mechanische Merkmale: Durchmesser	Ø 6.5 mm (Durchmesser)
Mechanische Merkmale: Gewinde	M12 x 1
Mechanische Merkmale: Material Kabel	TPE, geschirmt
Mechanische Merkmale: Schleppkettenwerte	< 10 Mio. (+25 °C, Biegezyklen) 10 x Ø (min. Biegeradius)
Zertifizierungen, Zulassungen: Schutzklasse	III, operation on safety extra-low voltage
Allgemeine Merkmale: Bauform	Straight / straight
Allgemeine Merkmale: Geeignet für	Vision Sensoren CS
Umgebungsbedingungen: Umgebungstemperatur Betrieb	-20 … +80 °C (bewegt, fest)
Umgebungsbedingungen: Schutzart	IP 20
Elektrischer Anschluss: Anschluss	Connector, M12, 8-pin, X-coded
Elektrischer Anschluss: Anschluss 2	Connector, RJ 45, 8-pin

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

213119 ds VSSM-Z-5-RJ45-X de (PDF)
Datasheet · DE · 847 KB
Download datasheet

Description

Connecting cable with a connector at both ends for quick commissioning of sensors, lighting and vision and ID products. Robust metal coupling nut, clean strippability and a high degree of protection included. Further properties include: for connection to an Ethernet interface, shielded and X-coded.
