Line scan camera MV-CL084-91Y2M

Manufacturer part number: MV-CL084-91Y2M · 306302764

Interface: CoaXPress
Line resolution: 8K
Resolution: 8192 × 4
Pixel size: 7 µm × 7 µm
Max. line rate: 200 kHz
Mono / color: Mono
Lens mount: M72 × 0.75
Sensor type: CMOS
Dimensions: 132 × 76 × 51.4 mm

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CL084-91Y2M
Sensor type	CMOS
Pixel size	7 µm × 7 µm
Resolution	8192 ×4
Image mode	Supports multi-light control: 1/2/3/4 light(s) Supports 1-Line, 2-TDI, and 4-TDI
Max. line rate	1-light mode: 200 kHz (1-Line), 100 kHz (2-TDI), 50 kHz (4-TDI) 2-light mode: 52 kHz (1-Line), 26 kHz (2-TDI) 3-light mode: 34.6 kHz (1-Line) 4-light mode: 26 kHz (1-Line)
Dynamic range	63.4 dB
SNR	40.8 dB
Gain	1.0 ×
Exposure time	3 µs to 10 ms
Exposure mode	Off/Once/Continuous exposure mode, and supports trigger-width exposure
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output
Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger, frame trigger, line + frame trigger
Data interface	CXP-10 with two Micro-BNC interfaces
Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported.
Power supply	12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP
Power consumption	Typ. 15.5 W @ 24 VDC
Lens mount	M72*0.75, flange back length 12 mm, applicable to F-mount lens via adapter ring
Dimension	132 mm × 76 mm × 51.4 mm (5.2" × 3.0" × 2.0")
Weight	Approx. 520 g (1.1 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	MVS or other frame grabber softwares corresponding to CoaXPress protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

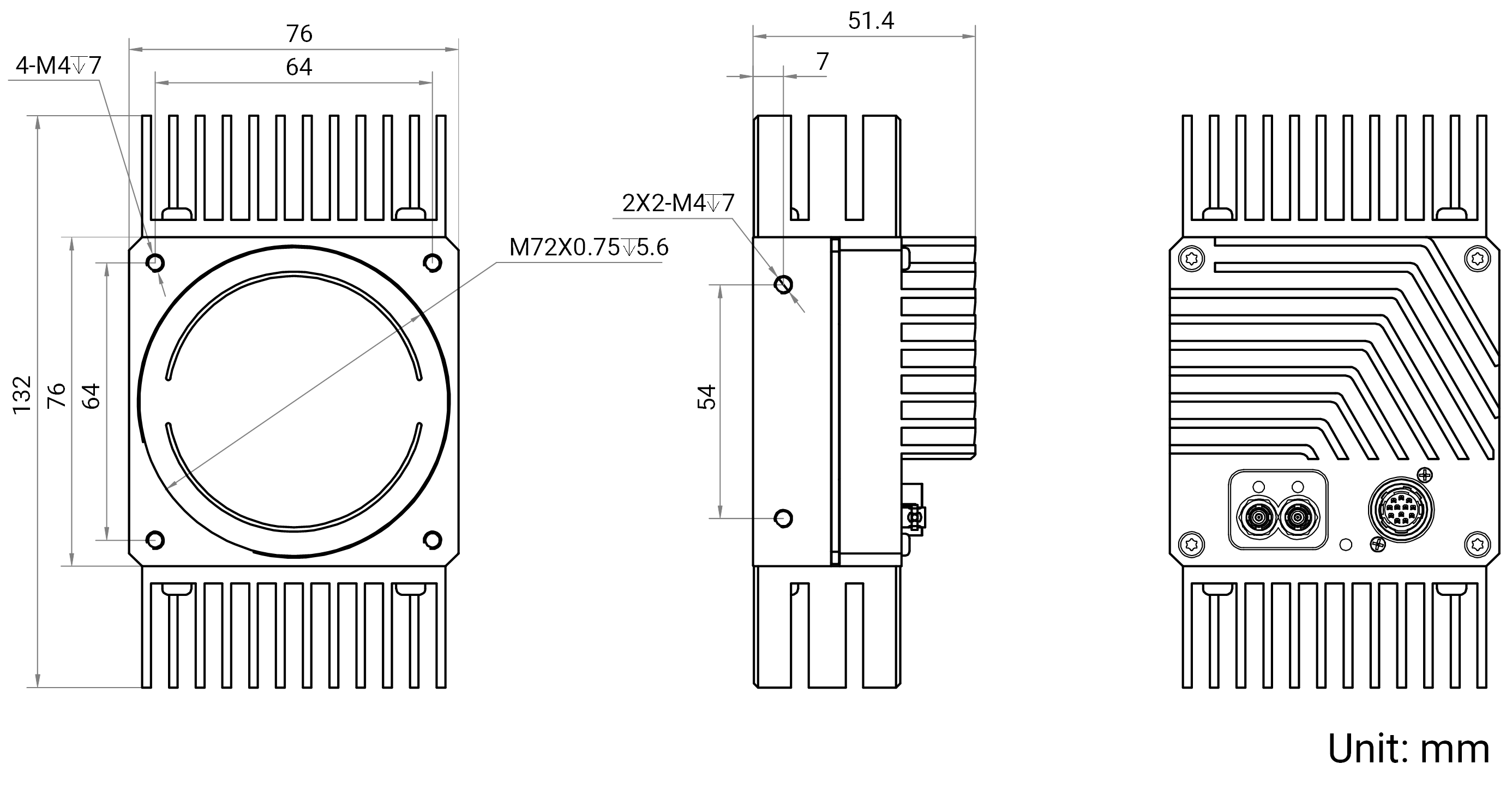

Dimensional drawing

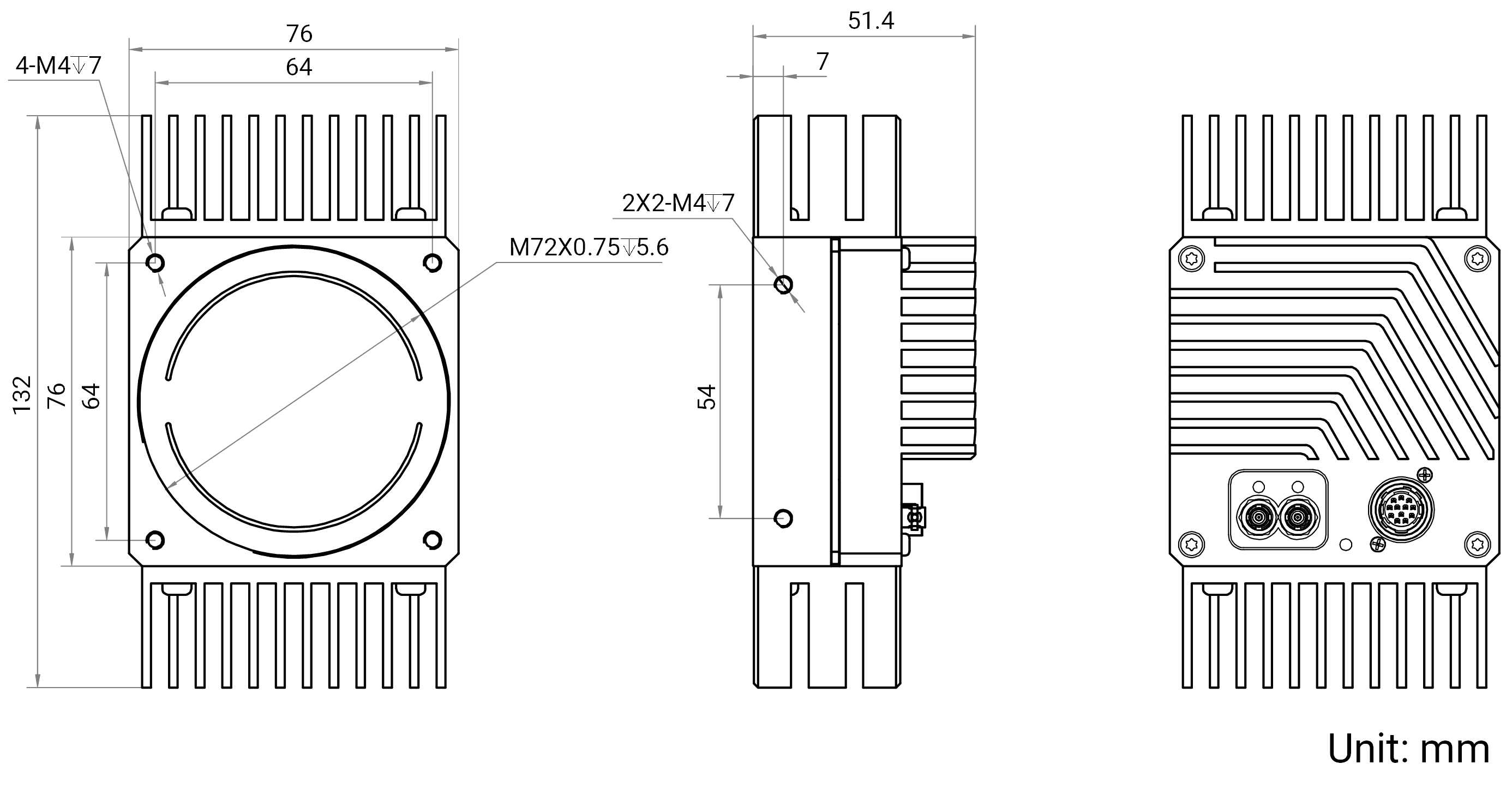

Maßzeichnung Hikrobot Zeilenkamera MV-CL084-91Y2M
