Vision sensor MV-SC3013XC-08M-WBN
Manufacturer part number: MV-SC3013XC-08M-WBN
- Device class
- Vision sensor
- AI / deep learning
- Included
- Resolution
- 1.3 MP (1216 × 1024 px)
- Max. frame rate
- 60 fps
- Image output
- Color
- Optics
- 8 mm, M12-Mount
- Focus type
- Autofocus
- Illumination
- Integriert, white; weitere Lichtfarben optional
- Communication
- Fast Ethernet
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-SC3013XC-08M-WBN |
|---|---|
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, color measurement, color size, diameter measurement, line angle Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection Count: Spot count, edge count, contour count, pattern count, learning-based count, color count Recognition: Multi-object count, code recognition, color contrast, color recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture Deep learning: DL classification, DL object detection Defect detection: Anomaly detection Industry tools: OCR and defect detection |
| Solution capacity | Supports importing and exporting project, up to 32 projects can be stored |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 6.9 µm × 6.9 µm |
| Sensor size | 1/1.45" |
| Resolution | 1216 × 1024 |
| Max. frame rate | 60 fps |
| Gain | 0 dB to 15 dB |
| Exposure time | 6 µs to 1 sec |
| Pixel format | RGB 8, Mono 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1 Supports triggering device via pressing top trigger button |
| Power supply | 24 VDC |
| Power consumption | Avg. 7 W @ 24 VDC (light source enabled) Max. 22 W @ 24 VDC (light source enabled) |
| Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 8 mm |
| Lens cap | Polarized + diffuser + full-transparent lens cap |
| Light source | White spot light source. Red/blue/IR point light source is optional |
| Aiming system | 1 LED |
| Indicator | 360° visual indicator |
| Dimension | Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6") |
| Weight | Approx. 190 g (0.4 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008. Bare device withstands 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Input voltage | 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

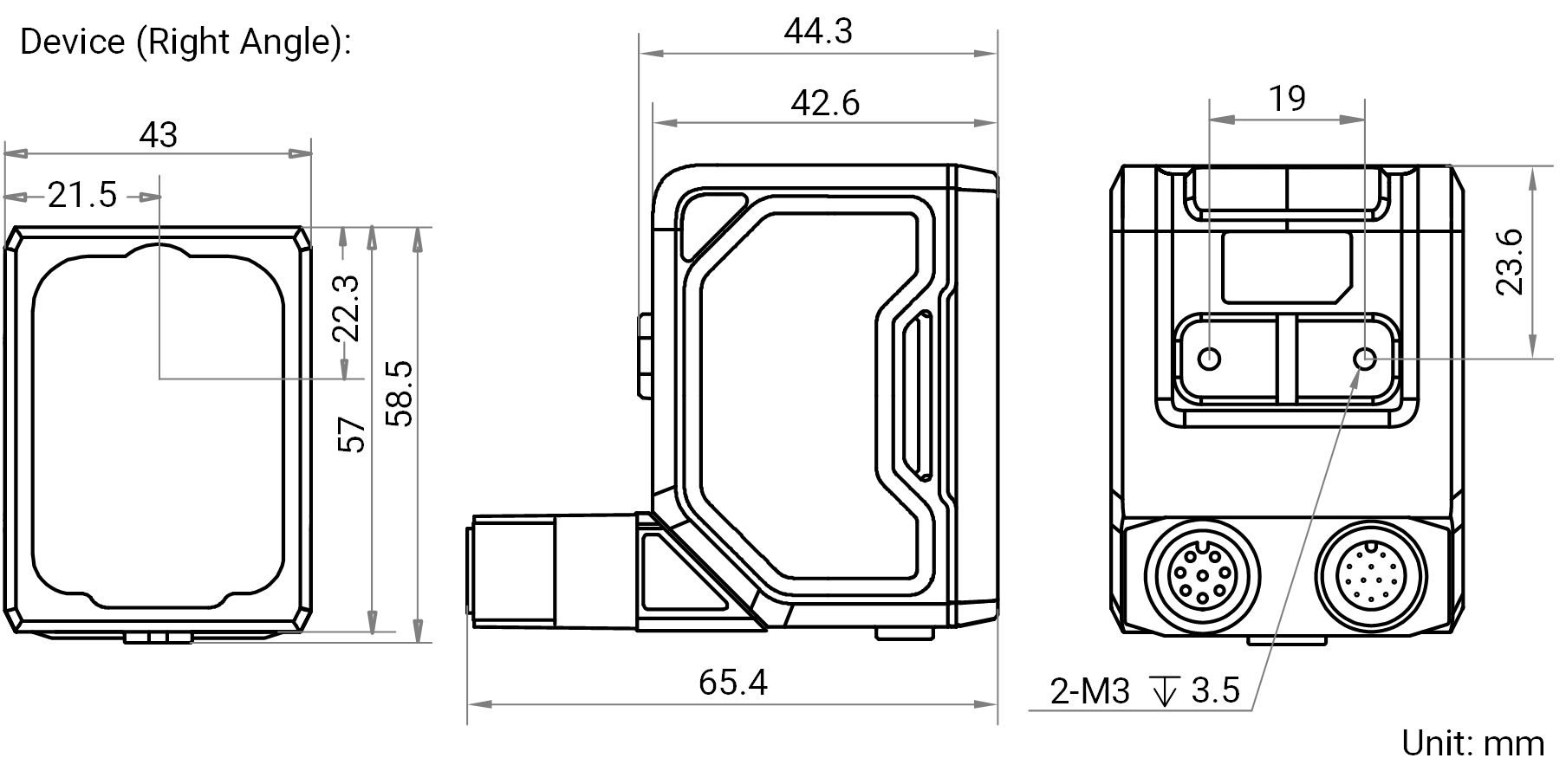

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Vision Sensor MV-SC3013XC-08M-WBN
Datasheet · DE · 678 KB
- Download
Technical drawing HikRobot Vision Sensor MV-SC3013XC-08M-WBN
Technical drawing · DE · 2 MB
Software and SDK (4)
Description
Key Feature - Adopts embedded hardware platform to realize high-speed image processing. - Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions. - Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes. - Adopts multiple IO interfaces for input and output signals. - Supports viewing the device's status in real time via 360° visual indicator, convenient for debugging and maintenance. - Rotatable cable tail design, suitable for narrow space. - Adopts polarized, diffuser, and full-transparent multiple optical lighting with good environmental adaptability. - IP67 protection without fear of harsh industrial application environments.
