HIKROBOT

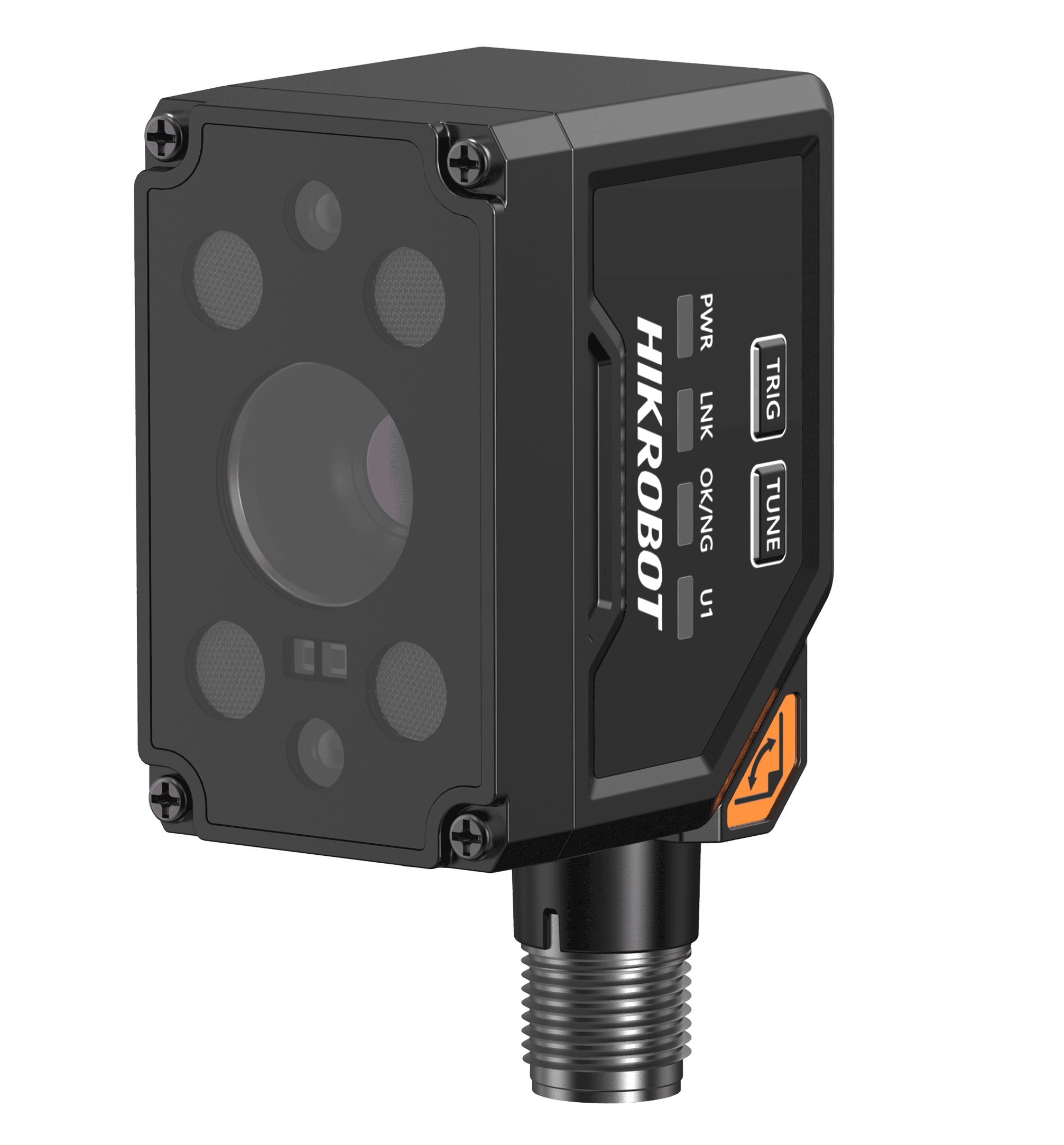

Vision sensor MV-SC2023XC-05M-WBN
Manufacturer part number: MV-SC2023XC-05M-WBN
- Device class
- Vision sensor
- AI / deep learning
- Not available
- Resolution
- 2.4 MP (1920 × 1280 px)
- Max. frame rate
- 75 fps
- Image output
- Color
- Optics
- 5 mm, M12-Mount
- Focus type
- Autofocus
- Illumination
- Integriert, white; weitere Lichtfarben optional
- Communication
- Fast Ethernet
- Ingress protection
- IP65
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-SC2023XC-05M-WBN |
|---|---|
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, color measurement, color size, diameter measurement, line angle Existence: Existence detection, anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, line existence Count: Learning-based count, spot count, edge count, contour count, pattern count, color count Recognition: Multi-object count, category recognition, code recognition, OCR, color contrast, color recognition Logic: Calculator, if module, logic judge, condition judge, string comparison, combination judge, format output Defect detection: Anomaly detection Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture |
| Solution capacity | Supports solution importing and exporting, up to 16 solutions and 40 modules can be stored. |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.2 µm × 2.2 µm |
| Sensor size | 1/3.52" |
| Resolution | 1920 × 1280 |
| Max. frame rate | 75 fps |
| Gain | 0 dB to 48 dB |
| Exposure time | 36 µs to 100 ms |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including isolated input (Line 0/1) × 2, isolated output (Line 2/3) × 2, RS-232 × 1 Supports device triggering via pressing side button. |
| Power supply | 24 VDC |
| Power consumption | Avg.: 5 W @ 24 VDC (light source enabled) Max.: 12 W @ 24 VDC (light source enabled) |
| Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 5 mm |
| Lens cap | Transparent lens cap by default. Half-polarized and fully-polarized caps are optional. |
| Light source | White light by default. Red, blue, IR, UV, and two-color (red/blue) lights are optional. |
| Aiming system | 2 green LED lights |
| Indicator | Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1) |
| Dimension | Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6") Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4") |
| Weight | 118 g (0.3 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Input voltage | 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

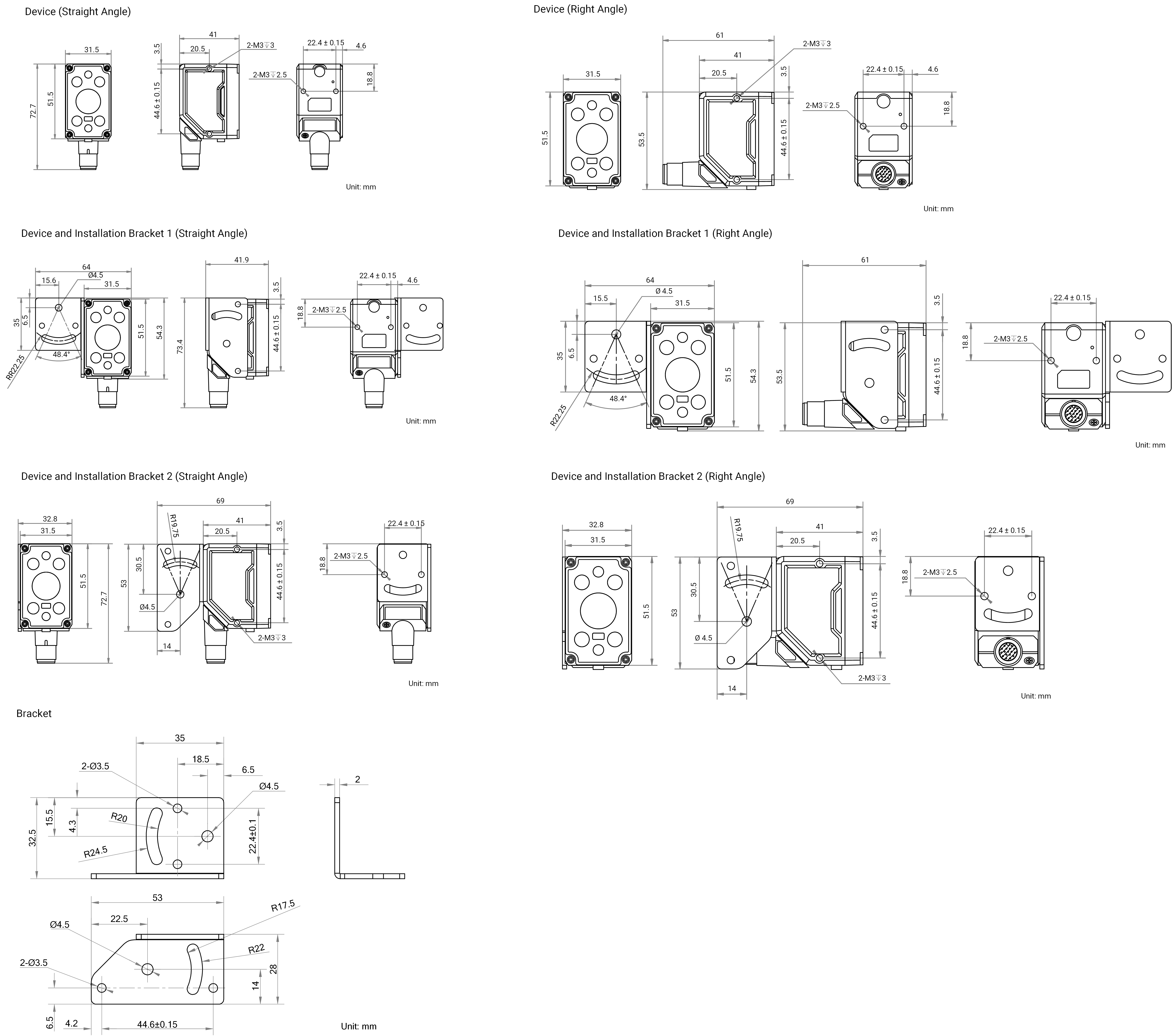

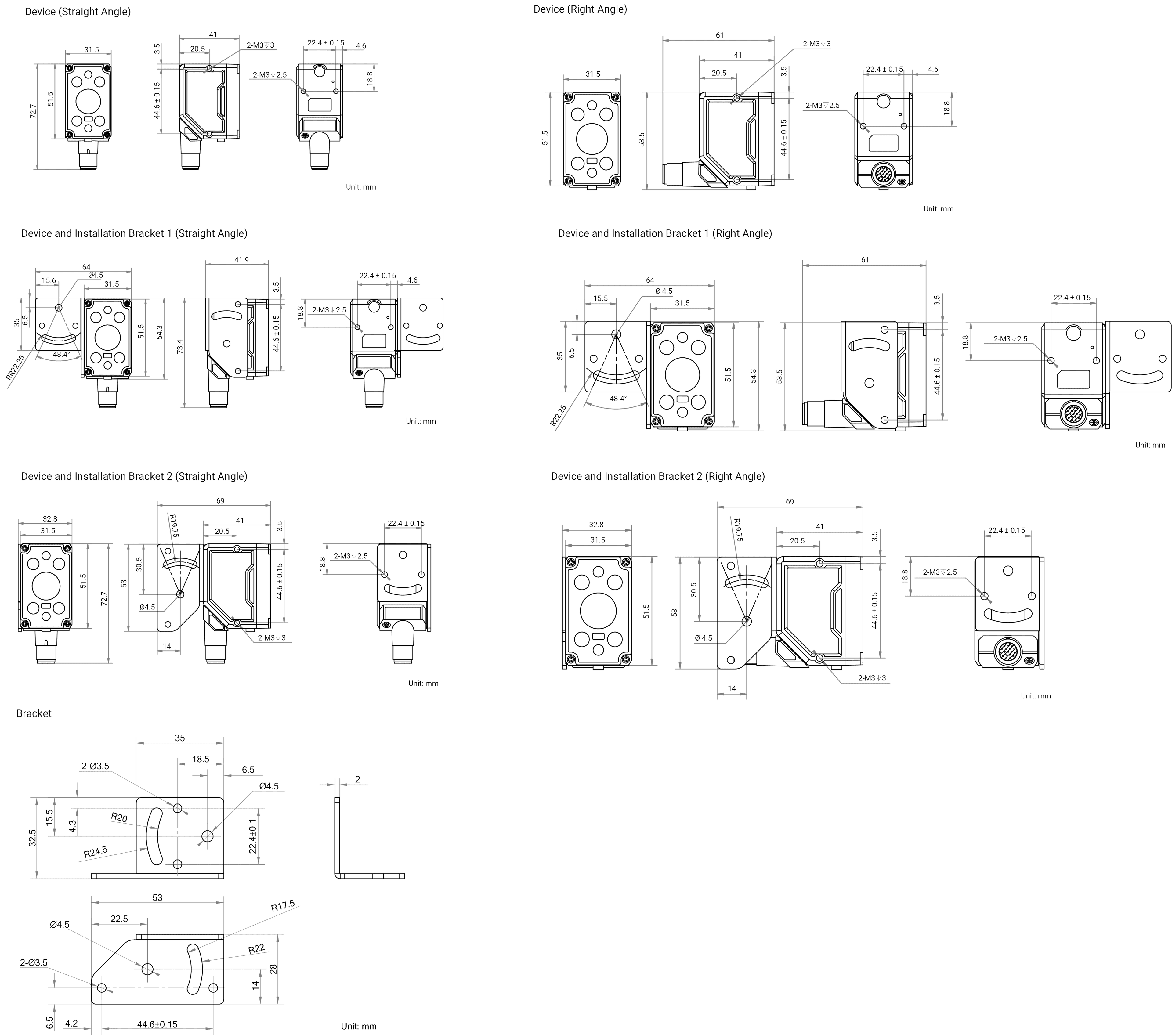

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Vision Sensor MV-SC2023XC-05M-WBN
Datasheet · DE · 725 KB
- Download
Technical drawing HikRobot Vision Sensor MV-SC2023XC-05M-WBN
Technical drawing · DE · 1855 KB
- Download
Software / Firmware V4.3.6 HikRobot Vision Sensor MV-SC2023XC-05M-WBN
Software / firmware · DE · 127135 KB
- Download
Quick start guide HikRobot Vision Sensor MV-SC2023XC-05M-WBN
Quick start guide · DE · 1266 KB
- Download
Communication protocol HikRobot Vision Sensor MV-SC2023XC-05M-WBN
Communication protocol · DE · 7132 KB
Description
Key Feature - Adopts embedded hardware platform for high-speed image processing. - Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition. - Provides multiple I/O interfaces for input and output signals. - Provides multiple indicators for displaying device status. - Adopts light source to ensure uniform brightness in the illuminated area. - Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, Ethernet/IP, etc.
