Smart camera MV-SC5020XC-16M-WBN

Manufacturer part number: MV-SC5020XC-16M-WBN

Device class: Smart camera
AI / deep learning: Included
Resolution: 2 MP (1600 × 1216 px)
Max. frame rate: 100 fps
Image output: Color
Optics: 16 mm, M12-Mount
Focus type: Manual focus
Illumination: Integriert, white; weitere Lichtfarben optional
Communication: GigE
Ingress protection: IP67

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-SC5020XC-16M-WBN
Function module	Vision Master Platform (include deep learning module)
Communication protocol	TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Sensor type	CMOS, global shutter
Pixel size	3.45 µm × 3.45 µm
Sensor size	1/2.53"
Resolution	1600 × 1216
Max. frame rate	100 fps
Gain	0 dB to 37 dB
Exposure time	15 µs to 1 sec
Pixel format	Mono 8, RGB 8
Mono/color	Color
Memory	8 GB
Storage	64 GB
Data interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), and RS-232 × 1
Power supply	24 VDC
Power consumption	Avg. 12.3 W @ 24 VDC (with included light source on) Max. 48 W @ 24 VDC (with included light source on)
Lens mount	M12-mount, mechanical focusing
Focal length	16 mm
Lens cap	Half polarization lens cap by default. Transparent or full polarization lens cap is optional.
Light source	White light source by default. Red, blue, or IR light source is optional.
Indicator	Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2)
Dimension	Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4") Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2")
Weight	Approx. 370 g (0.8 lb.)
Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance	Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Certification	CE, KC
Input voltage	24 VDC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

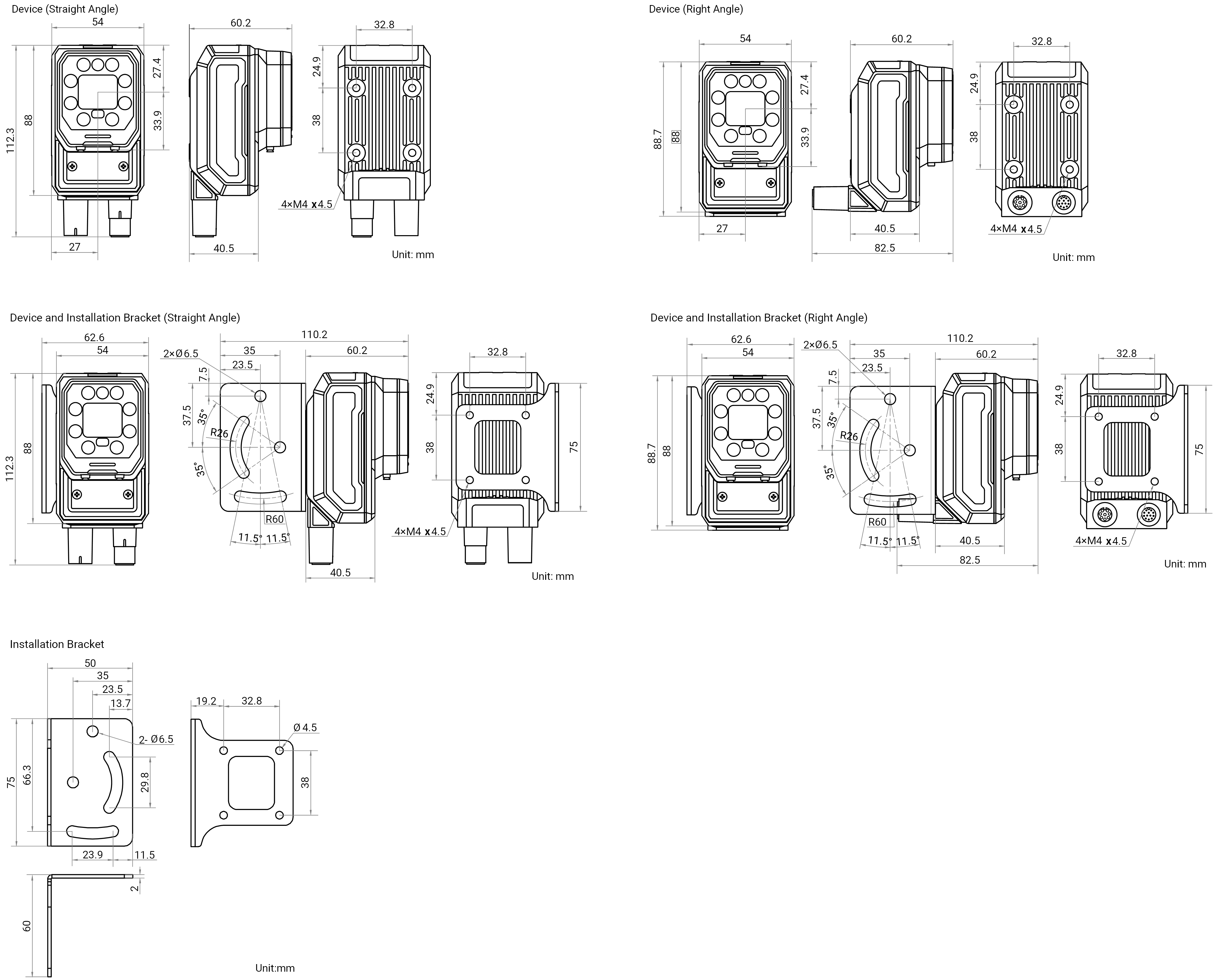

Dimensional drawing
