HIKROBOT

Smart camera MV-SC5020XC-00C-NNN

Manufacturer part number: MV-SC5020XC-00C-NNN

Device class: Smart camera
AI / deep learning: Included
Resolution: 2 MP (1600 × 1216 px)
Max. frame rate: 100 fps
Image output: Color
Optics: C-Mount, Objektiv separat
Focus type: Depends on lens
Illumination: Nicht integriert
Communication: GigE
Ingress protection: IP67

Price and availability on request

Quantity

No obligation · we usually reply within 24 hours on business days

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-SC5020XC-00C-NNN
Function module	Vision Master Platform (include deep learning module)
Communication protocol	TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Sensor type	CMOS, global shutter
Pixel size	3.45 µm × 3.45 µm
Sensor size	1/2.53"
Resolution	1600 × 1216
Max. frame rate	100 fps
Gain	0 dB to 37 dB
Exposure time	15 µs to 1 sec
Pixel format	Mono 8, RGB 8
Mono/color	Color
Memory	8 GB
Storage	64 GB
Data interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), and RS-232 × 1
Power supply	24 VDC
Power consumption	Avg. 10 W @ 24 VDC Max. 14.4 W @ 24 VDC
Lens mount	C-mount
Lens cap	Transparent lens cap
Light source	Not included
Indicator	Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2)
Dimension	Straight angle: 112.3 mm × 54 mm × 110 mm (4.4" × 2.1" × 4.3") Right angle: 88.7 mm × 54 mm × 110 mm (3.5" × 2.1" × 4.3")
Weight	Approx. 370 g (0.8 lb.)
Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)*
Shock resistance	Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)*
Certification	CE, KC
Input voltage	24 VDC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

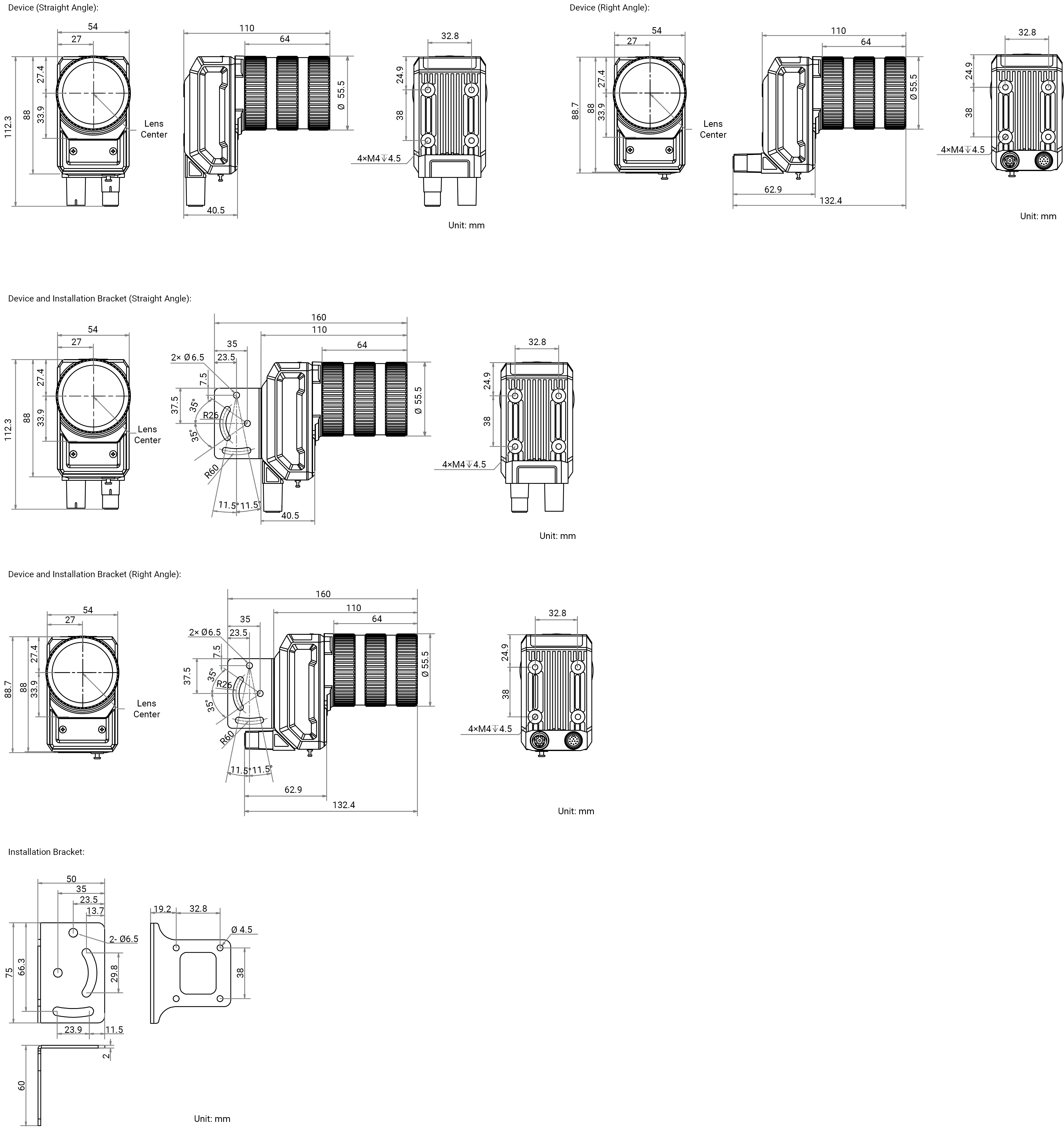

Dimensional drawing

Maßzeichnung Hikrobot SC5000X Smart Kamera MV-SC5020XC-00C-NNN

Documents

Datasheet Hikrobot SC5000X Smart Kamera MV-SC5020XC-00C-NNN
Datasheet · DE · 691 KB
Download datasheet
Technical drawing Hikrobot SC5000X Smart Kamera MV-SC5020XC-00C-NNN
Technical drawing · DE · 11 MB
Download
Software / Firmware V4.4.30 Hikrobot SC5000X Smart Kamera MV-SC5020XC-00C-NNN
Software / firmware · DE · 740 MB
Download
SC_VisionMaster V4.4.30 Basic Package (SC5000X&SC6000) (2,1 GB)
Software / firmware · EN
Download
Quick start guide Hikrobot SC5000X Smart Kamera MV-SC5020XC-00C-NNN
Quick start guide · DE · 2 MB
Download
Communication protocol Hikrobot SC5000X Smart Kamera MV-SC5020XC-00C-NNN
Communication protocol · DE · 7 MB
Download

Accessories

Data cables(25)

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45 angled-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45 angled-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45 angled-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45 angled-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 1 m

RJ45 (with locking stud) · 1 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 60 m

RJ45 (with locking stud) · 60 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45 angled-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45 angled-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Data cable

Adapterring(2)

HIKROBOT

Adapter ring M58x0.75-C T6.02

Adapter / extension ring

HIKROBOT

Adapter ring M42x1.0-C T5.5

Adapter / extension ring

Verlängerungsring(2)

HIKROBOT

Extension ring C-C T10

Adapter / extension ring

HIKROBOT

Extension ring C-C T20

Adapter / extension ring

More HIKROBOT products in this category

Description

Key Feature - Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc. - Integrates VM functions, and supports more than 140 algorithms. - Adopts multiple I/O interfaces, such as multiple input/output signals. - Supports multiple communication protocols. - Supports indicators displaying device status for easy debugging and maintenance. - Supports ingress protection IP67.
