HIKROBOT
Vision sensor MV-SC1003C-03S-WBN-NR
Manufacturer part number: MV-SC1003C-03S-WBN-NR
- Device class
- Vision sensor
- AI / deep learning
- Not available
- Resolution
- 0.3 MP (640 × 480 px)
- Max. frame rate
- 15 fps
- Image output
- Color
- Optics
- 3.1 mm, M5.8-Mount
- Focus type
- Fixed focus
- Illumination
- Integriert, white
- Communication
- Fast Ethernet
- Ingress protection
- IP54
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-SC1003C-03S-WBN-NR |
|---|---|
| Vision tool | Measurement: P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, diameter measurement, line angle, color measurement, and color size Existence: Anomaly judge, spot existence, edge existence, contour existence, circle existence, and line existence Count: Spot count, edge count, contour count, and color count Recognition: Category recognition, classification registration, and color contrast Logic: Calculator, logic judge, condition judge, combination judge, and format output Location: Fixture |
| Solution capacity | Supports solution importing and exporting, and up to 8 solutions and 40 modules can be stored. |
| Communication protocol | Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.74 µm × 3.74 µm |
| Sensor size | 1/6" |
| Resolution | 640 × 480 |
| Max. frame rate | 15 fps |
| Gain | 1 dB to 23 dB |
| Exposure time | 60 µs to 7000 µs |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | Green terminal provides power, digital I/O, and serial port, including input signal × 1 (Line 0), output signal × 1 (Line 1), and RS-232 × 1. Supports triggering device via pressing top trigger button. |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Avg. 1.5 W @ 12 VDC Max. 3 W @ 12 VDC |
| Lens mount | M5.8-mount |
| Focal length | 3.1 mm |
| Working distance | 120 mm |
| Lens cap | Transparent lens cap |
| Light source | White LED |
| Aiming system | 1 LED |
| Indicator | Power indicator (PWR), result indicator (OK/NG) |
| Dimension | 38 mm × 38 mm × 19 mm (1.5" × 1.5" × 0.7") |
| Weight | Approx. 40 g (0.1 lb.) without cable |
| Ingress protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Input voltage | 12 VDC to 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

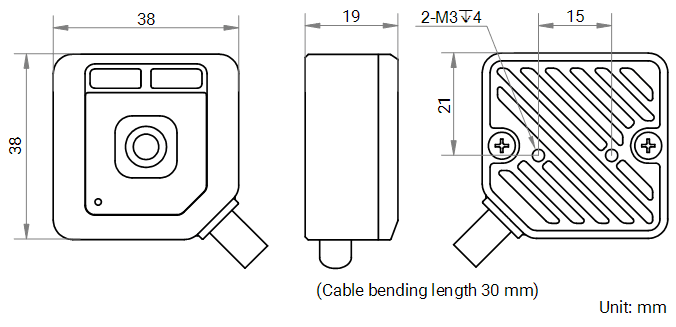

Dimensional drawing
