Vision sensor MV-SC2004EM-15S-WBN
Manufacturer part number: MV-SC2004EM-15S-WBN
- Device class
- Vision sensor
- AI / deep learning
- Not available
- Resolution
- 0.4 MP (704 × 540 px)
- Max. frame rate
- 60 fps
- Image output
- Mono
- Optics
- 14.8 mm, M12-Mount
- Focus type
- Manual focus
- Illumination
- Integriert, white
- Communication
- Fast Ethernet
- Ingress protection
- IP65
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-SC2004EM-15S-WBN |
|---|---|
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, greyscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, and line angle Existence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, and line existence Count: Spot count, edge count, contour count, and pattern count Recognition: Category recognition, classification registration, and OCR Logic: Calculator, logic judge, condition judge, combination judge, format output, If module, and character comparison Location: Fixture |
| Solution capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 6.9 µm × 6.9 µm |
| Sensor size | 1/2.9" |
| Resolution | 704 × 540 |
| Max. frame rate | 60 fps |
| Gain | 0 dB to 15 dB |
| Exposure time | 16 µs to 1 sec |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power, Ethernet, serial port, and digital I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), RS-232 × 1, and external button input × 1 (BUTTON) |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Avg. 6 W @ 24 VDC Max. 22 W @ 24 VDC |
| Lens mount | M12-mount, adjusting focus manually supported |
| Focal length | 14.8 mm |
| Lens cap | Transparent lens cap |
| Light source | White LED lamp |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0") |
| Weight | Approx. 220 g (0.5 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Input voltage | 12 VDC to 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

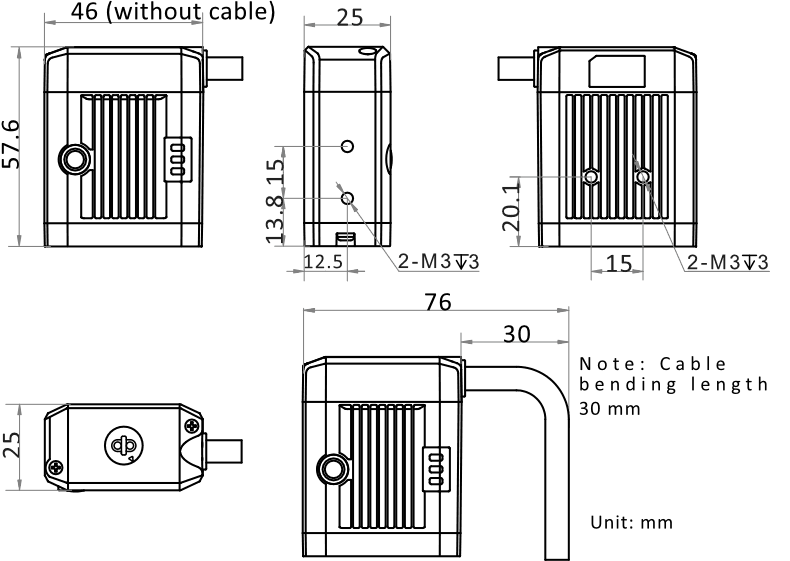

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Vision Sensor MV-SC2004EM-15S-WBN
Datasheet · DE · 757 KB
- Download
Technical drawing HikRobot Vision Sensor MV-SC2004EM-15S-WBN
Technical drawing · DE · 1 MB
Software and SDK (4)
Description
Key Feature - Adopts embedded hardware platform for high-speed image processing. - Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition. - Multiple IO interfaces for input and output signals. - Multiple indicators for displaying device status. - Adopts light source to ensure uniform brightness in the illuminated area. - Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, Ethernet/IP, etc.
