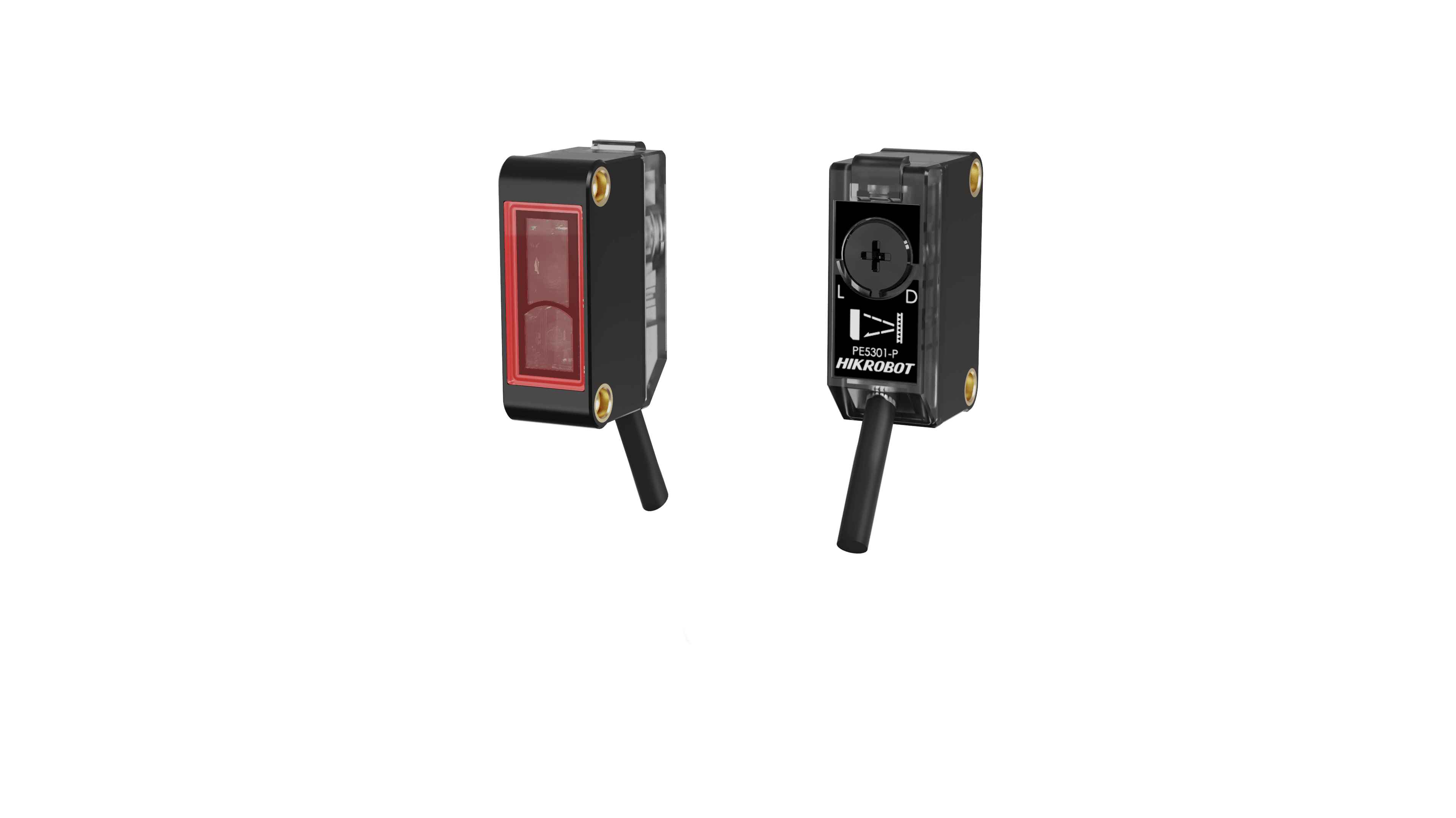

Retro-reflective sensor MV-PE5301-P

Manufacturer part number: MV-PE5301-P

Sensor function: Retro-reflective sensor
Range: 100 – 4000 mm
Light source: LED
Light color: Red
Design: Cuboid
Switching output: PNP
Switching function: NO/NC switchable
Connection: Cable, 2 m
Ingress protection: IP67

The manufacturer has announced end of life (EoL preparation) for this product. It is still regularly orderable; we will inform you in good time once a successor has been confirmed.

End of life announced - still orderable

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-PE5301-P
Type	Retro-reflective sensor(4 m,Red LED,Polarizing filter,PNP)
Detecting distance	0.1 m to 4 m
Sensing target	Opaque object, semi-transparent object, and mirror above Φ50 mm
Output	PNP (supports light-on/dark-on switch)
Light source	Red LED 650 nm
Response time	≤ 500 µs
Repeatability (perpendicular to sensing axis)	≤ 0.5 mm
Supply voltage	12 VDC to 24 VDC ± 10 %, including Ripple (P-P) 10 % or less
Residual voltage	≤ 2 VDC
Operating current	≤ 20 mA
Max. sink/source current	≤ 100 mA
Circuit protection	Reverse polarity protection, overcurrent protection, and overvoltage protection
Insulation resistance	20 MΩ or more (between the terminal block for power supply and the housing)
Withstand voltage	1000 VAC, 1 min (between the terminal block for power supply and the housing)
Dimension	20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2")
Weight	Approx. 45 g (0.1 lb.) (including cable)
Temperature	Working temperature: –25 °C to 55 °C (–13 °F to 131 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	35 % RH to 85 % RH
Ambient illumination	Sunlight: < 10000 lux Incandescent lamp: < 3000 lux
Ingress protection	IP67
Material	Housing: polycarbonate Lens: acrylic
Indicator	Operation indicator: orange Stability indicator: green
Connecting method	Cable lead-out (standard length: 2 m, 78.7")
Vibration resistance	10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions
Shock resistance	500 m/s2, 3 times in each of the X, Y, and Z directions
Certification	CE, RoHS
Input voltage	12-24 V DC
Sensor function	Retro-reflective sensor
Light color	Red
Design	Cuboid
IO-Link	No

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

Datasheet Reflexionslichtschranke MV-PE5301-P
Datasheet · EN · 729 KB
Download datasheet
Technical drawing Reflexionslichtschranke MV-PE5301-P
Technical drawing · EN · 183 KB
Download
Quick start guide Reflexionslichtschranke MV-PE5301-P
Quick start guide · EN · 663 KB
Download

Description

Key Feature

- Provides a clear red spot, and contains polarizing filters.

- Adapts to complex light environment with anti-interference capability.

- Immune to interference from highly reflective objects.
