HIKROBOT
Diffuse sensor with background suppression MV-PE5501
Manufacturer part number: MV-PE5501
- Sensor function
- Diffuse sensor with background suppression
- Range
- 5 – 100 mm
- Light source
- LED
- Light color
- Red
- Design
- Cuboid
- Switching output
- NPN
- Switching function
- NO/NC switchable
- Connection
- Cable, 2 m
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-PE5501 |
|---|---|
| Type | Diffuse-reflective sensor(5-100 mm,Red LED,settable distance,NPN) |
| Detecting distance | 5 mm to 100 mm |
| Sensing target | Standard reflector (100 mm × 100 mm) with reflectivity of 5 % |
| Output | NPN (supports light-on/dark-on switch) |
| Light source | Red LED 650 nm |
| Response time | ≤ 500 µs |
| Hysteresis | < 10 % of set distance |
| Distance setting adjustment | Multi-turn trimmer |
| Supply voltage | 12 VDC to 24 VDC ± 10 % |
| Residual voltage | ≤ 2 VDC |
| Operating current | ≤ 20 mA |
| Max. sink/source current | ≤ 100 mA |
| Circuit protection | Reverse polarity protection, overcurrent protection, and overvoltage protection |
| Insulation resistance | 20 MΩ or more (between the terminal block for power supply and the housing) |
| Withstand voltage | 1000 VAC, 1 min (between the terminal block for power supply and the housing) |
| Dimension | 20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2") |
| Weight | Approx. 45 g (0.1 lb.) (including cable) |
| Temperature | Working temperature: –25 °C to 55 °C (–13 °F to 131 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 35 % RH to 85 % RH |
| Ambient illumination | Sunlight: < 10000 lux Incandescent lamp: < 3000 lux |
| Ingress protection | IP67 |
| Material | Housing: polycarbonate Lens: acrylic |
| Indicator | Operation indicator: orange Stability indicator: green |
| Connecting method | Cable lead-out (standard length: 2 m, 78.7") |
| Vibration resistance | 10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions |
| Shock resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions |
| Certification | CE, RoHS |
| Input voltage | 12-24 V DC |
| Sensor function | Diffuse sensor with background suppression |
| Light color | Red |
| Design | Cuboid |
| IO-Link | No |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

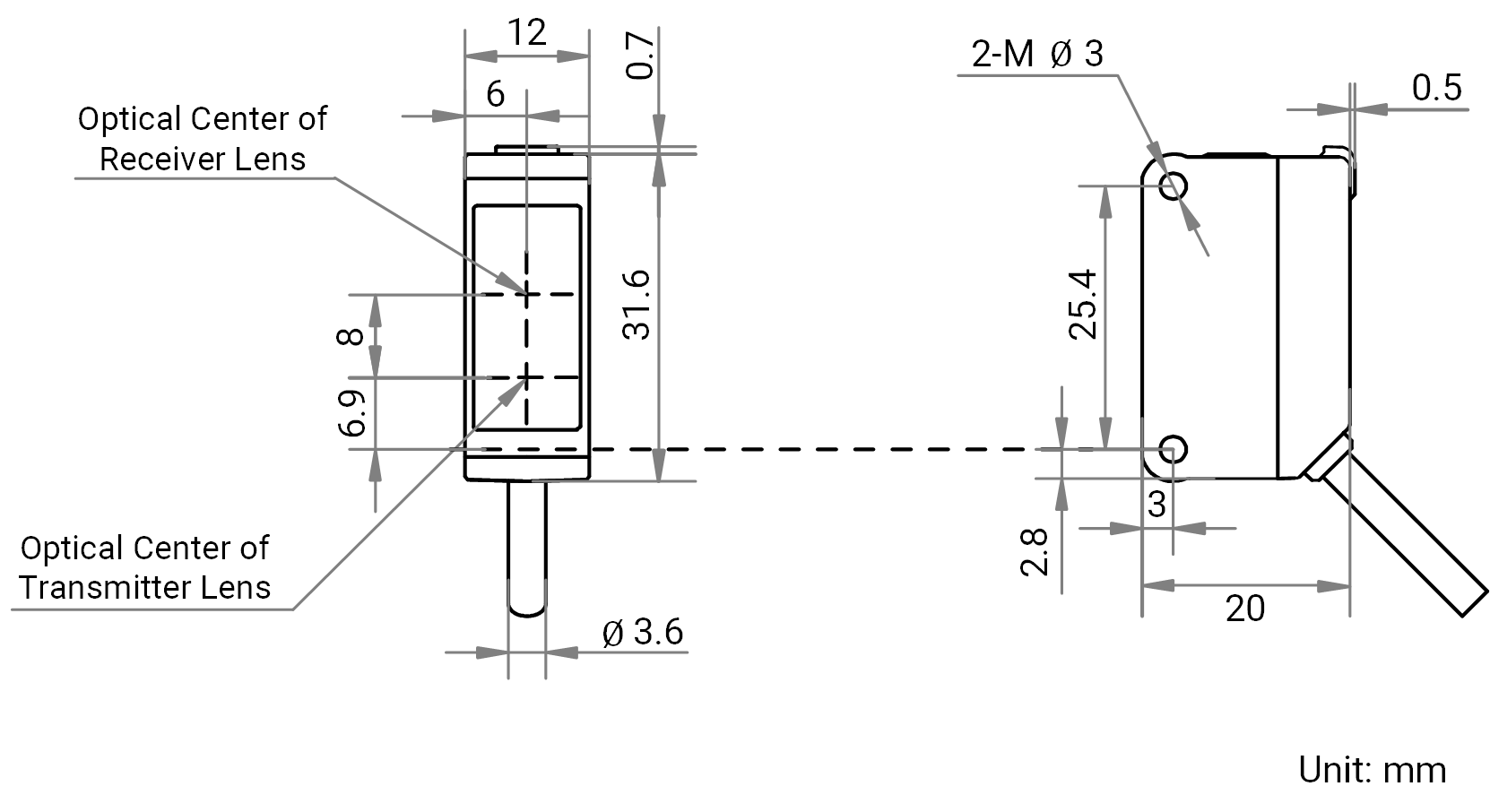

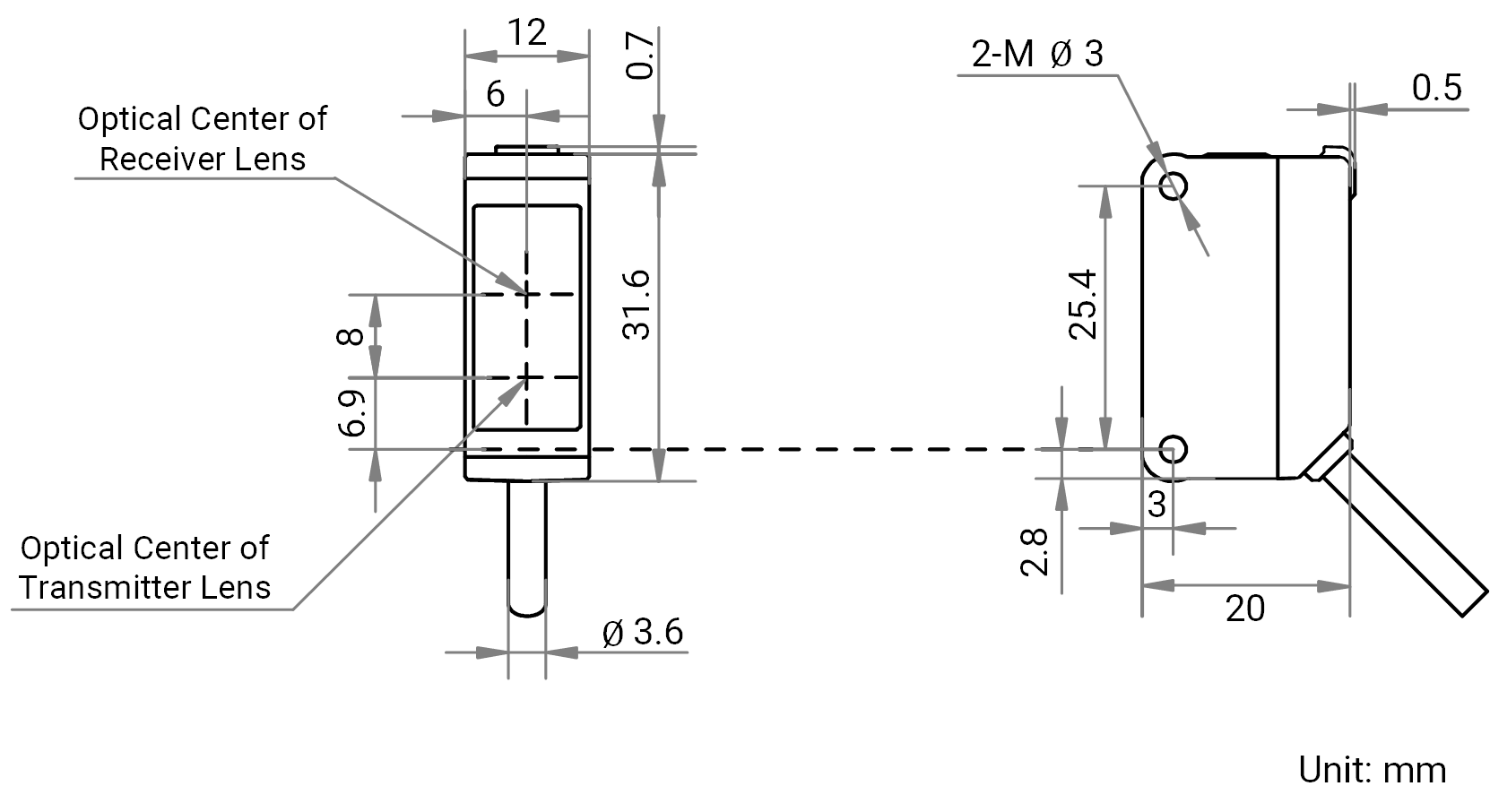

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Diffuse-Reflexions-Lichtschranke MV-PE5501
Datasheet · DE · 629 KB
- Download
Technical drawing Hikrobot Diffuse-Reflexions-Lichtschranke MV-PE5501
Technical drawing · DE · 826 KB
- Download
Quick start guide Hikrobot Diffuse-Reflexions-Lichtschranke MV-PE5501
Quick start guide · DE · 663 KB
Description
Key Feature - Provides super small round spot. - Optimized for small workpieces and uneven surfaces with high reflectivity. - Adapts to complex light environment with anti-interference capability.
