di-soric

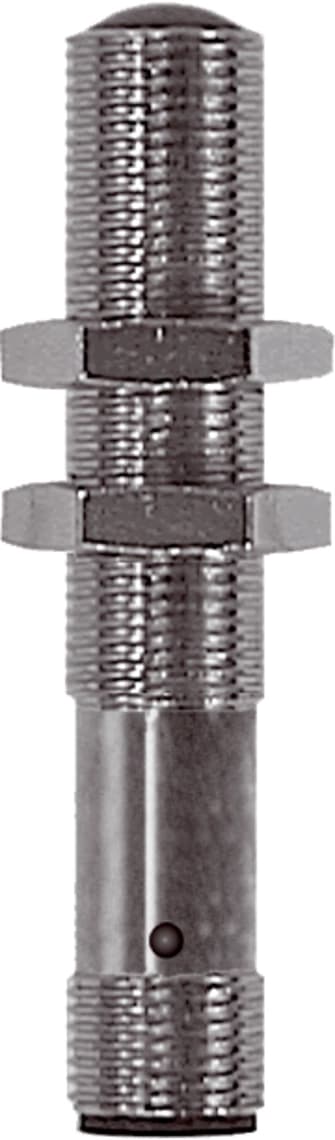

OSP-12-VLF-IBSL

Manufacturer part number: OSP-12-VLF-IBSL

Sensor function: Through-beam sensor
Emitter / receiver: Emitter
Range: 0 – 20000 mm
Light source: LED
Light color: Infrared
Design: Threaded barrel
Connection: Connector, M12
Ingress protection: IP69K

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OSP-12-VLF-IBSL
Funktionsprinzip	Optical
Bauform	Threaded barrel
Gewinde	M12 x 1
Erfassungsbereich	0 … 20000 mm (depending on the receiver)
Lichtquelle	LED
Wellenlänge	870 nm
Auswertung	digital
Anschluss	Connector, M12, 3-pin
Betriebsspannung	10 … 35 V DC
Leerlaufstrom (max.)	55 mA
Schutzklasse	III, operation on safety extra-low voltage
Schutzart	IP 67 / IP 68 / IP 69 K
Umgebungstemperatur Betrieb	-20 … +60 °C
Gehäusematerial	Stainless steel (V2A 1.4301 / AISI 304)
Gehäuselänge	66 mm
Besonderheiten	High transmission power and dirt penetration
Produktgruppe	Through-beam sensor
Model	Emitter
Wellenlänge	Infrared
Serie	OP-M12
IO-Link	No

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

Datasheet di-soric OSP-12-VLF-IBSL
Datasheet · DE · 3062 KB
Download datasheet

Description

The M12 threaded barrel design consists of an emitter and a receiver in a compact housing that is easy to mount by its thread. Thanks to the rugged stainless steel housing, the systems are insensitive to vibration and shock and therefore do not need to be readjusted constantly.

- Range up to 20 m

- Transmission power adjustable with an external resistor

- High functional reserve

- Extremely insensitive to dirt

- Easy alignment

- Different designs can be combined

- High degree of protection

- Compact design
