di-soric

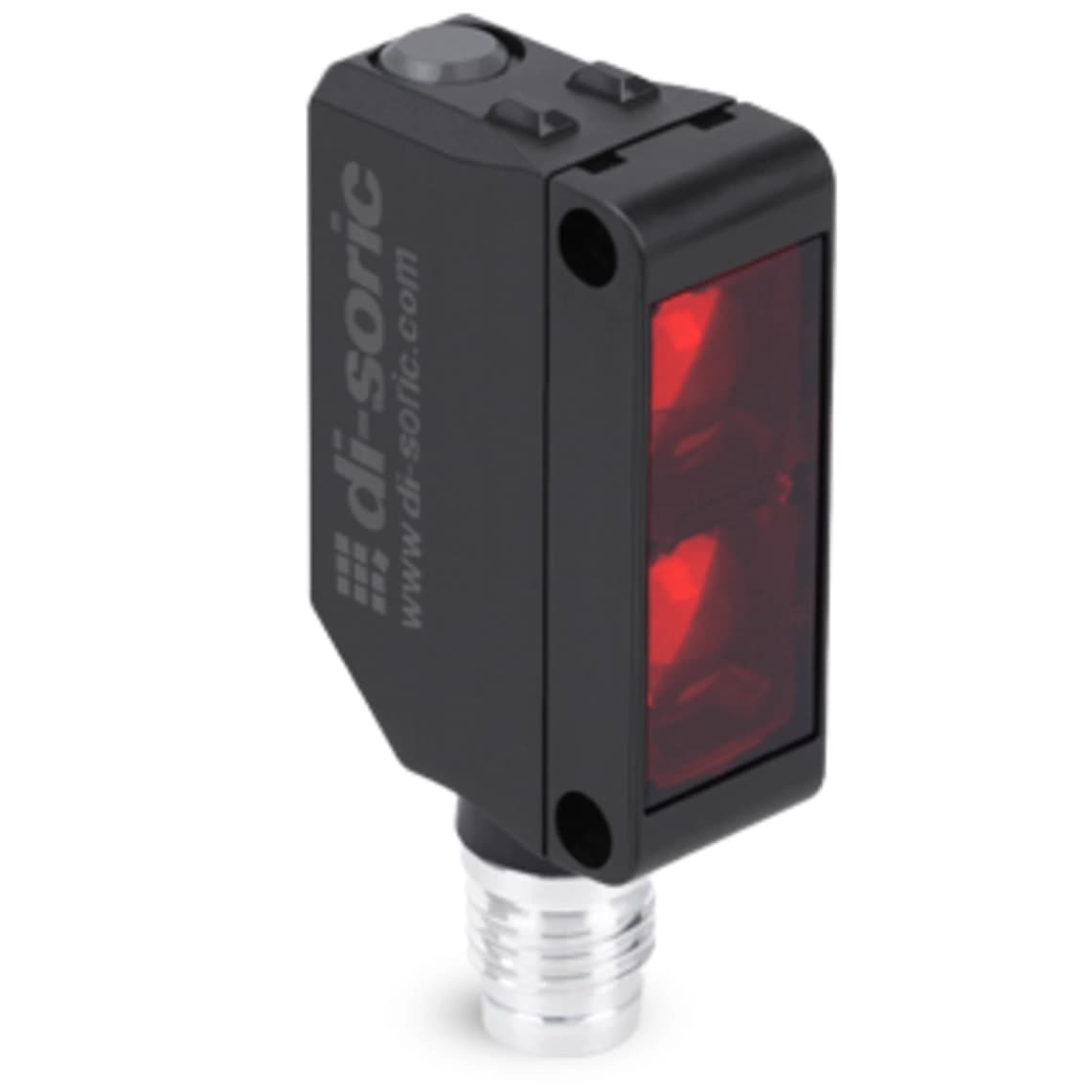

OS33-IMN-T4
Manufacturer part number: OS33-IMN-T4
- Sensor function
- Through-beam sensor
- Emitter / receiver
- Emitter
- Range
- 0 – 15000 mm
- Light source
- LED
- Light color
- Infrared
- Design
- Cuboid
- Connection
- Connector, M8
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OS33-IMN-T4 |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Cuboid |
| Erfassungsbereich | 0 … 15000 mm |
| Lichtquelle | LED |
| Wellenlänge | 850 nm |
| Auswertung | digital |
| LED Anzeige | LED green - Status |
| Anschluss | Connector, M8, 4-pin |
| Betriebsspannung | 10 … 30 V DC |
| Leerlaufstrom (max.) | < 20 mA |
| Spannungsfall (max.) | 1 V |
| Verpolschutz | Yes |
| Kurzschlussschutz | Yes |
| Schutzklasse | III |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -25 … +60 °C |
| Gehäusematerial | Plastic |
| Material | Plastic (window / optics) |
| Gehäuselänge | 20 mm |
| Gewicht | 20 g |
| Funktionsprinzip | Through-beam sensor |
| Model | Emitter |
| Wellenlänge | Infrared |
| Serie | O-33 Universell |
| IO-Link | No |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric OS33-IMN-T4
Datasheet · DE · 980 KB
Description
The compact light barriers and diffuse sensors of the O-33 series in a rugged plastic housing with an IO-Link interface solve even the most demanding detection tasks reliably and precisely. Many sensors have an IO-Link interface and are available with either powerful laser or LED light sources, which provide a long range and a high functional reserve.
- Compact design
- Long range
- High functional reserve
- Infrared LED with a large light spot
