di-soric

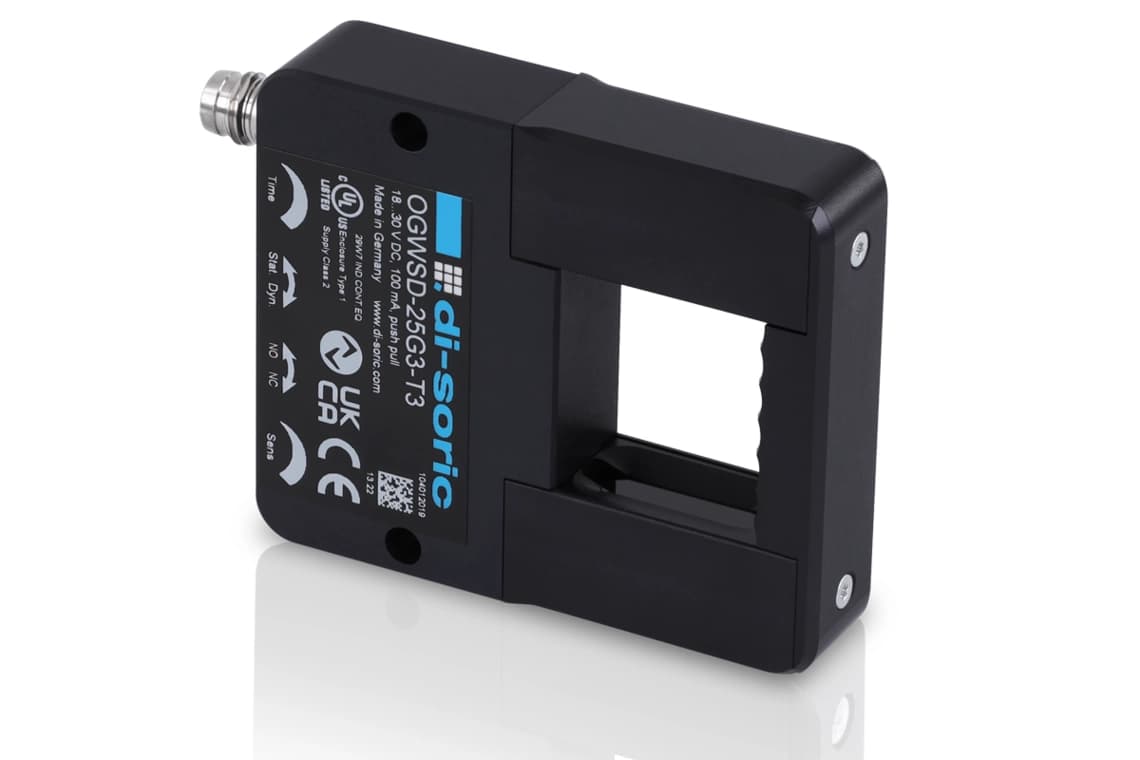

OGWSD-25G3-T3
Manufacturer part number: OGWSD-25G3-T3
- Sensor function
- Frame light barrier
- Range
- 22 mm
- Light source
- LED
- Light color
- Infrared
- Design
- Rahmen
- Switching output
- Push-pull / Push-Pull
- Switching function
- NO/NC switchable
- Connection
- Connector, M8
- Interface
- IO-Link 1.1.3
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OGWSD-25G3-T3 |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Rahmen |
| Erfassungsbereich | 25 x 22 mm |
| Ansprechzeit | 0.05 ms |
| Lichtquelle | LED |
| Auswertung | Schaltend, Dynamisch/statisch switchable |
| Schaltausgang | Push-pull, 100 mA, NO/NC, switchable |
| Schnittstelle | IO-Link V1.1.3, COM2 (Smart Sensor Profile), 2nd Edition V1.1 SSP 4.1.1 |
| LED Anzeige | LED yellow - switching output |
| Anschluss | Connector, M8, 3-pin |
| Betriebsspannung | 18 … 30 V DC |
| Leerlaufstrom (max.) | 40 mA |
| Spannungsfall (max.) | 2 V |
| Verpolschutz | Yes |
| Kurzschlussschutz | Yes |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -10 … +60 °C |
| Gehäusematerial | Aluminum (black, anodized) |
| Material | Plastic (Fenster) |
| Gehäuselänge | 65.5 mm |
| Gewicht | 86 g |
| Produktgruppe | Frame light barrier |
| Farbe | Infrared |
| Serie | OGWSD Rahmen Bauform |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric OGWSD-25G3-T3
Datasheet · DE · 999 KB
Description
OGWSD series frame light barriers have a frame design and detect objects within an area of up to 300 x 397 mm. The devices are ideal for harsh machine environments with heavy mechanical loads. The OGWSD has a rugged metal housing with impact protection and crossbar and can be set quickly using a potentiometer. IO-Link provides advantages for configuration and diagnostics.
- IO-Link
- Frame design
- Rugged metal housing
- Impact protection on the optics
- Removable crossbar
- High resolution
- Short response time
- Potentiometer for adjustment
- Operating principle: dynamic or static
- 4 operating modes as IO-Link parameters
