di-soric

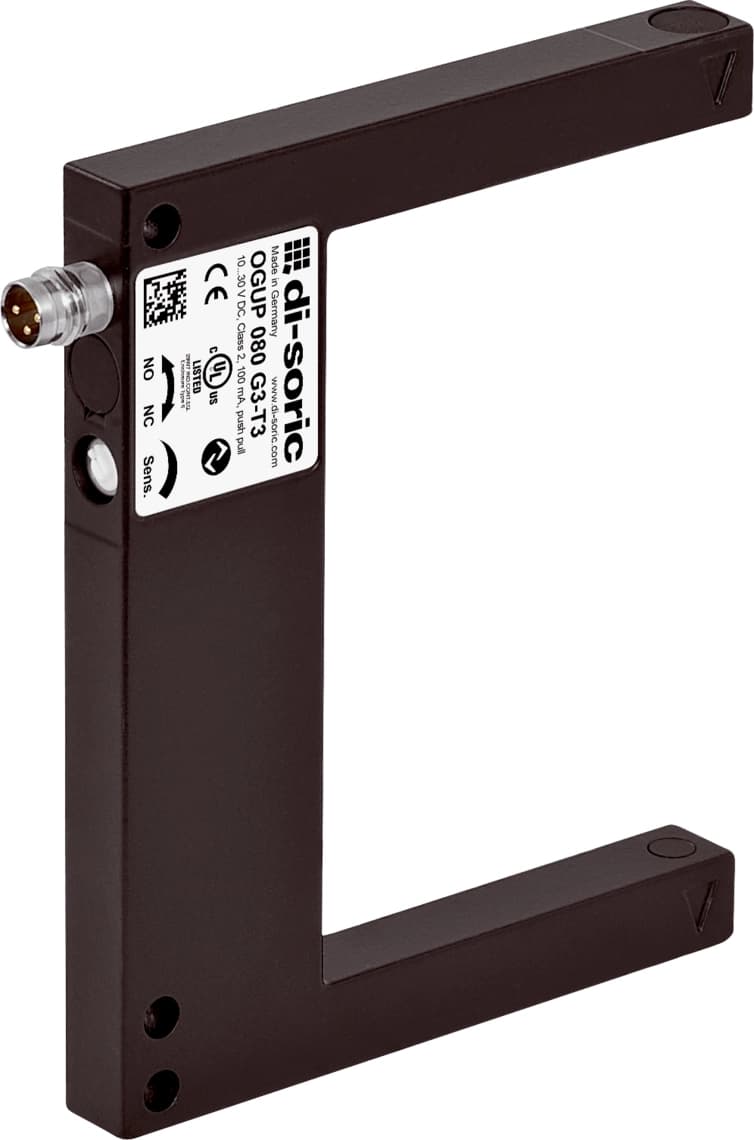

OGUP-080-G3-T3
Manufacturer part number: OGUP-080-G3-T3
- Sensor function
- Fork light barrier
- Fork width
- 80 mm
- Light source
- LED
- Light color
- Infrared
- Design
- Fork
- Switching output
- Push-pull / Push-Pull
- Switching function
- NO/NC switchable
- Connection
- Connector, M8
- Interface
- IO-Link
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OGUP-080-G3-T3 |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Fork |
| Lichtquelle | LED |
| Auswertung | digital |
| Schaltausgang | Push-pull, 100 mA, NO/NC, switchable |
| Schnittstelle | IO-Link |
| Anschluss | Connector, M8, 3-pin |
| Betriebsspannung | 10 … 30 V DC (Supply Class 2) |
| Leerlaufstrom (max.) | 30 mA |
| Spannungsfall (max.) | 1 V |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -25 … +60 °C |
| Gehäusematerial | Die-cast zinc (black, powder-coated) |
| Gehäuselänge | 80 mm |
| Besonderheiten | High transmission power and dirt penetration |
| Produktgruppe | Fork light barrier |
| Gabelweite | 80 mm |
| Serie | OGUP Schmutzunempfindlich |
| Farbe | Infrared |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric OGUP-080-G3-T3
Datasheet · DE · 1 MB
Description
These high-performance fork light barriers have an increased functional reserve, which reduces cleaning cycles to a minimum. They are operated intuitively using a potentiometer or IO-Link. Four preset operating modes allow the sensor to be matched precisely to the application, while IO-Link provides important advantages for configuration and diagnostics.
More information
- High functional reserve
- Extremely insensitive to dirt
- Collimator optics
- Metal housing
- Integrated electronics
- Adjustable sensitivity
- Light-on / dark-on switching
- Bright ring LED
- High degree of protection
