di-soric

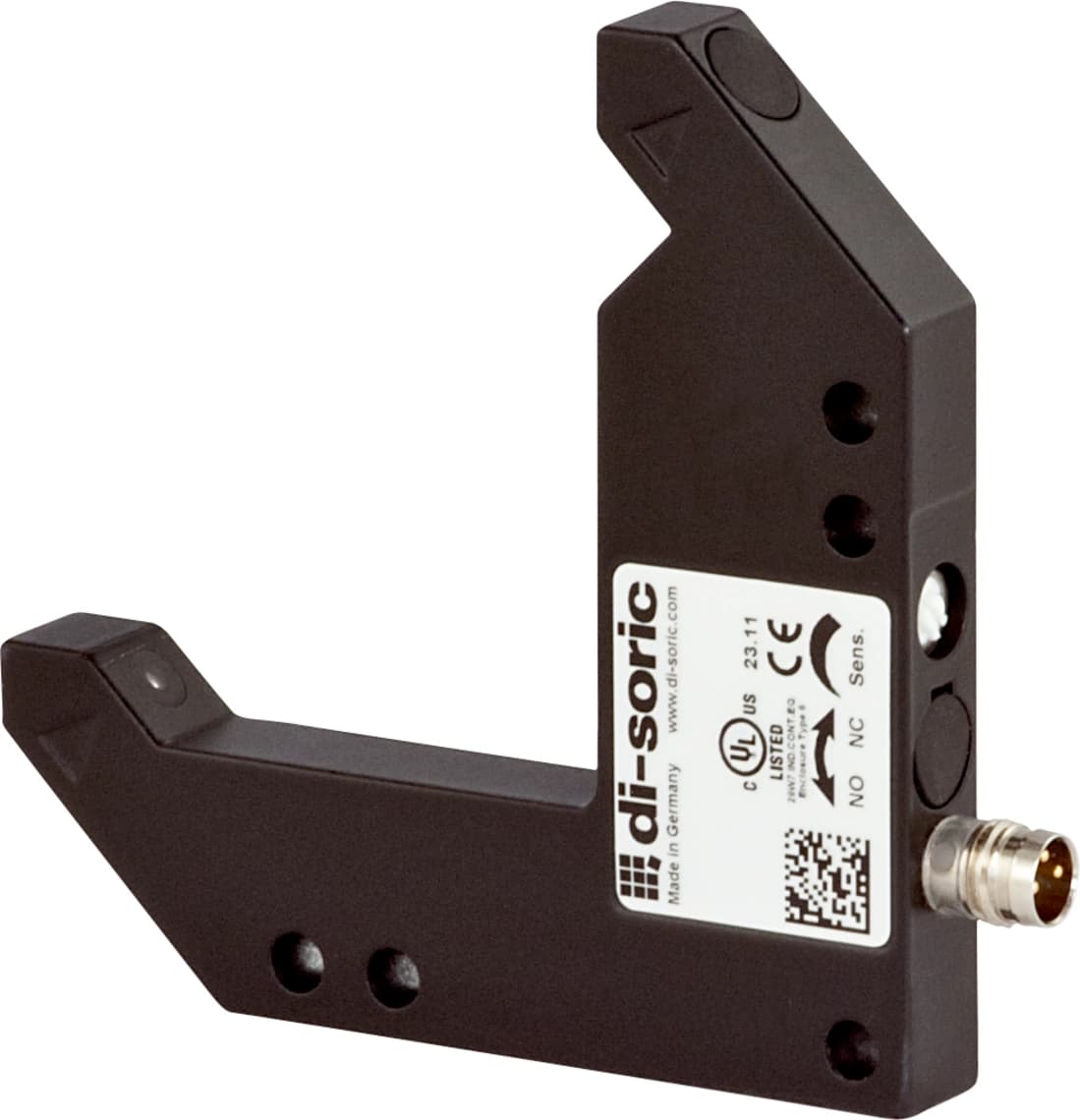

OGLP-050-G3-T3

Manufacturer part number: OGLP-050-G3-T3

Sensor function: Angle light barrier
Range: 60 mm
Light source: LED
Light color: Infrared
Design: Winkel
Switching output: Push-pull / Push-Pull
Switching function: NO/NC switchable
Connection: Connector, M8
Interface: IO-Link
Ingress protection: IP67

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OGLP-050-G3-T3
Funktionsprinzip	Optical
Bauform	Winkel
Erfassungsbereich	60 mm (optische Achse)
Lichtquelle	LED
Wellenlänge	860 nm
Auswertung	digital
Schaltausgang	Push-pull, 100 mA, NO/NC
Schnittstelle	IO-Link
Anschluss	Connector, M8, 3-pin
Betriebsspannung	10 … 30 V DC (Supply Class 2)
Leerlaufstrom (max.)	30 mA
Spannungsfall (max.)	1 V
Isolationsspannungsfestigkeit	500 V
Schutzklasse	III, operation on safety extra-low voltage
Schutzart	IP 67
Umgebungstemperatur Betrieb	-25 … +60 °C
Gehäusematerial	Die-cast zinc (powder-coated)
Gehäuselänge	75 mm
Besonderheiten	Seitlich anreihbar
Produktgruppe	Angle light barrier
Wellenlänge	Infrared
Serie	OGLP Schmutzunempfindlich

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

Datasheet di-soric OGLP-050-G3-T3
Datasheet · DE · 1442 KB
Download datasheet

Description

di-soric's high-performance angle light barriers have an increased functional reserve. On devices with a contamination indicator, cleaning cycles are reduced to a minimum.

- High functional reserve

- Extremely insensitive to dirt

- Collimator optics

- Optical axis can be positioned in the x, y and z directions

- Adjustable sensitivity

- Light-on / dark-on switching
