di-soric

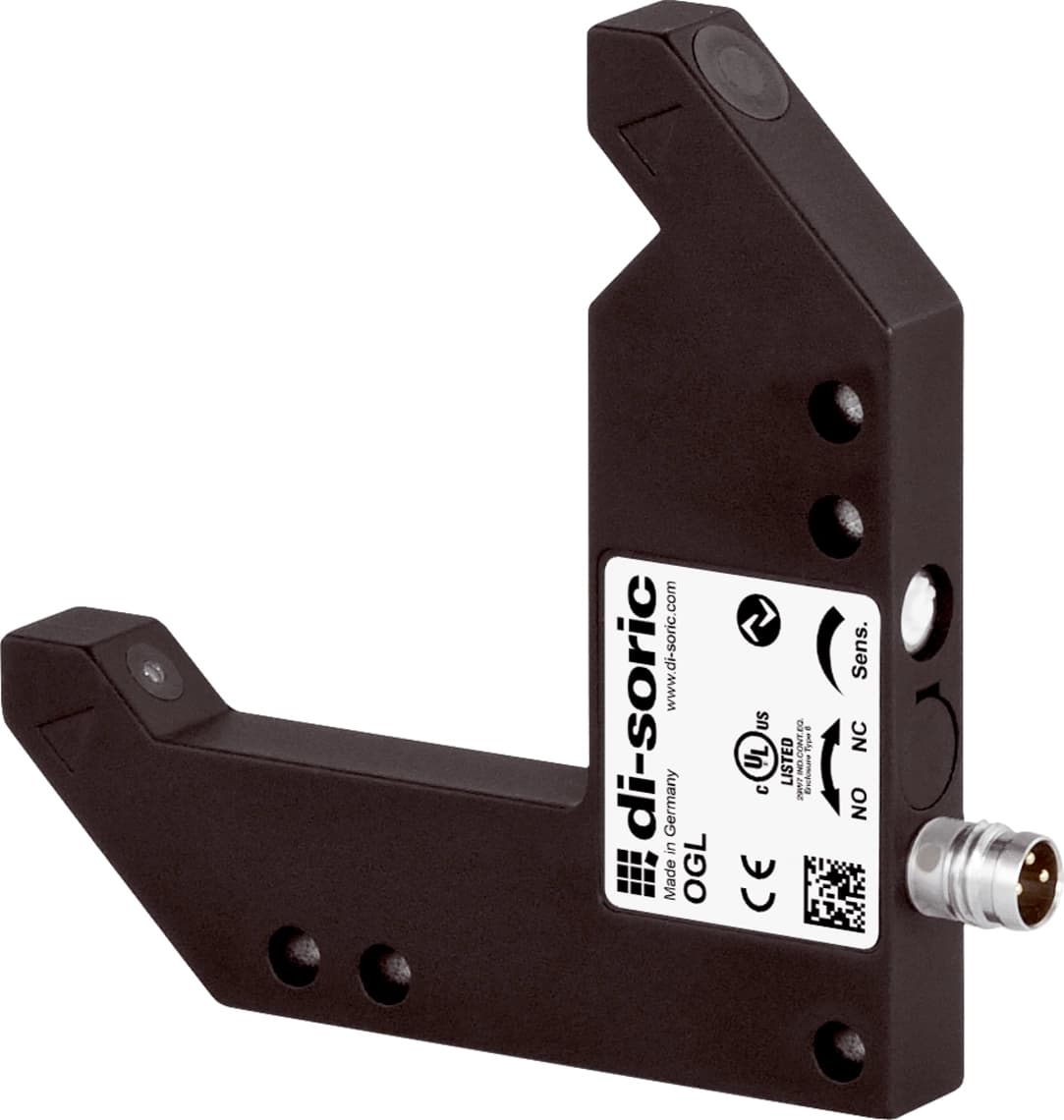

OGLL-051-G3-T3
Manufacturer part number: OGLL-051-G3-T3
- Sensor function
- Angle light barrier
- Range
- 60 mm
- Light source
- Laser
- Light color
- Red
- Design
- Winkel
- Switching output
- Push-pull / Push-Pull
- Switching function
- NO/NC switchable
- Connection
- Connector, M8
- Interface
- IO-Link 1.1
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OGLL-051-G3-T3 |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Winkel |
| Erfassungsbereich | 60 mm (optische Achse) |
| Lichtquelle | Laser |
| Wellenlänge | 655 nm (Pp < 0.3 mW t = 3.4 µs) |
| Auswertung | digital |
| Schaltausgang | Push-pull, 100 mA, NO/NC, switchable |
| Schnittstelle | IO-Link (V1.1, COM2 (38.4 kBd), Smart Sensor Profile) |
| Anschluss | Connector, M8, 3-pin |
| Betriebsspannung | 10 … 30 V DC |
| Leerlaufstrom (max.) | 30 mA |
| Spannungsfall (max.) | 1 V |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -25 … +60 °C |
| Gehäusematerial | Die-cast zinc (black, powder-coated) |
| Gehäuselänge | 75 mm |
| Gewicht | 88 g |
| Produktgruppe | Angle light barrier |
| Wellenlänge | Red |
| Serie | OGLL Laser |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric OGLL-051-G3-T3
Datasheet · DE · 1 MB
Description
The OGLL laser angle light barrier is particularly suitable for detecting small parts from 0.05 mm. Collimated red laser light achieves a high accuracy of the switching point between emitter and receiver across the entire fork width. The devices work with a pulsed red laser of eye-safe laser class 1. The clearly visible, small laser spot allows the sensor to be aligned to the object quickly even in bright ambient light.
- IO-Link
- 4 operating modes as IO-Link parameters
- Switch-on and switch-off delay as IO-Link parameters
- Diagnostics via IO-Link
- Metal housing
- Integrated electronics
- Adjustable sensitivity
- High switching frequency
- Light-on / dark-on switching
- Bright ring LED
