di-soric

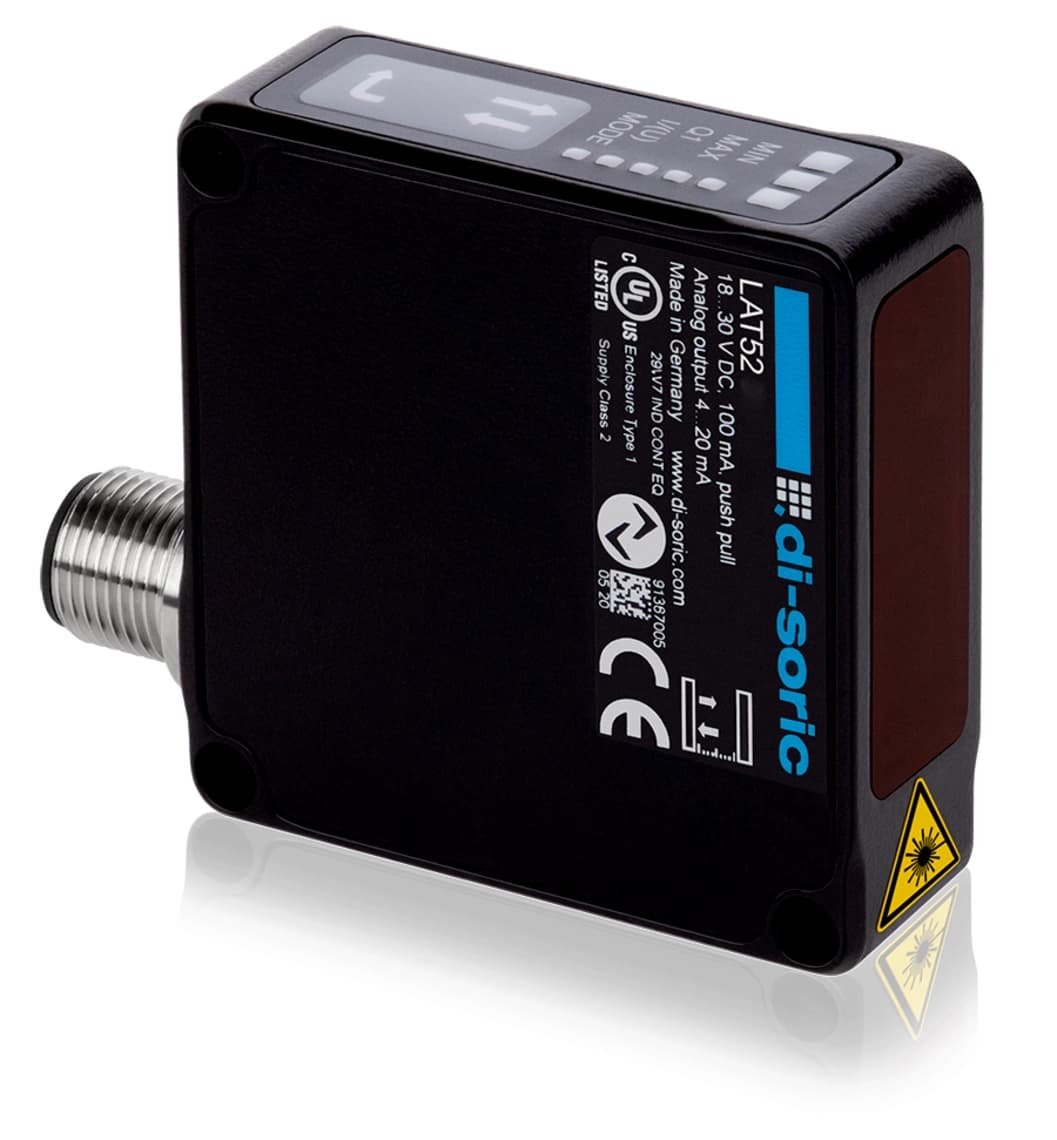

LAT52-200IU-B5
Manufacturer part number: LAT52-200IU-B5
- Sensor function
- Distance sensor
- Range
- 50 – 200 mm
- Light source
- Laser
- Light color
- Red
- Design
- Cuboid
- Switching output
- Push-pull / Push-Pull
- Switching function
- NO/NC switchable
- Connection
- Connector, M12
- Interface
- IO-Link 1.1
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | LAT52-200IU-B5 |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Cuboid |
| Erfassungsbereich | 50 … 200 mm (6 ... 90 % reflectance) |
| Lichtquelle | Laser (getaktet) |
| Wellenlänge | 650 nm (Pp < 0.65 mW t = 4 µs) |
| Schaltausgang | Push-pull (1x), 100 mA, NO/NC |
| Schnittstelle | IO-Link V1.1, COM2, Smart Sensor Profile |
| LED Anzeige | LED green - Status, yellow - switching output, red - weak signal |
| Anschluss | Connector, M12, 5-pin |
| Betriebsspannung | 18 … 30 V DC (Supply Class 2) |
| Leerlaufstrom (max.) | 60 mA |
| Spannungsfall (max.) | 2 V |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | 0 … +50 °C |
| Gehäusematerial | Die-cast zinc (black, powder-coated) |
| Gehäuselänge | 51 mm |
| Gewicht | 102 g |
| Produktgruppe | Distance sensor |
| Wellenlänge | Red |
| Serie | LAT-52 Kompakt |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric LAT52-200IU-B5
Datasheet · DE · 2 MB
Description
The LAT-52 Compact is a compact, universal distance sensor with a metal housing for medium distances up to 500 mm. It is fast and is used in applications in the millimeter and sub-millimeter range. The LAT-52 is available in three different measuring ranges. The version with a measuring range from 30 mm to 80 mm has a resolution of 0.01 mm. The small laser spot makes it possible to determine small changes in distance. The LAT-52 is operated either via the keypad or IO-Link, and laser class 1 guarantees full eye safety.
- IO-Link
- Precise, linearized object detection
- Wide detection range
- 3 operating modes as IO-Link parameters
- Laser class 1
- Red laser with a small laser spot
- Easy operation
- Rugged metal housing
