di-soric

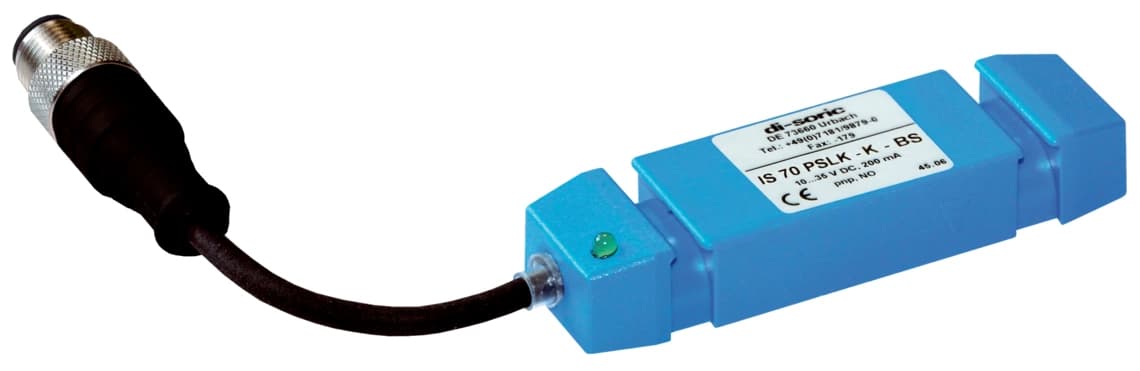

IS-70-PSLK-K-BS
Manufacturer part number: IS-70-PSLK-K-BS
- Sensor function
- Tube sensor
- Switching distance
- 14 mm
- Switching output
- PNP
- Switching function
- Normally open (NO)
- Connection
- Pigtail, 0.04 m
- Housing material
- Plastic (PC)
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | IS-70-PSLK-K-BS |
|---|---|
| Funktionsprinzip | Inductive |
| Bauform | Cuboid |
| Schaltabstand (SN) | 14 mm |
| Ansprechzeit | 0.50 ms |
| Auswertung | Statisch |
| Schaltausgang | pnp, 200 mA, NO |
| LED Anzeige | LED green - operation, yellow - switching output |
| Anschluss | Pigtail, 0.04 m, M12, 3-pin |
| Betriebsspannung | 10 … 35 V DC (Supply Class 2) |
| Leerlaufstrom (max.) | 15 mA |
| Spannungsfall (max.) | 2 V |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -25 … +70 °C |
| Gehäusematerial | Plastic (PC) |
| Material Kabel | PUR |
| Gehäuselänge | 70 mm |
| Produktgruppe | Tube sensor |
| Serie | IS Statisch |
| IO-Link | No |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric IS-70-PSLK-K-BS
Datasheet · DE · 797 KB
Description
Our inductive hose sensors in the static version reliably detect even the smallest metal parts. They are very well suited to rapidly fed parts and to detecting material jams. They are available in the size 70 x 20 x 12 mm.
- Compact design
- High resolution
- Low weight
- Cable with M12 connector
- Mounting slot for easy installation
- Cable ties included
- Static operating principle
