OPT-VGP116/4.8-0.75X V58 lens
Manufacturer part number: OPT-VGP116/4.8-0.75X
Series: Grampus-Zeilenobjektive
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k / 12k / 16k at 5 µm/7 µm µm
- Bildkreis
- Ø82 mm
- Abbildungsmaßstab
- 0.65 × | 0.75 × | 0.85 ×
- Focal length
- 116 mm
- Arbeitsabstand
- 248.4 (0.65×) | 224.6 (0.75×) | 206.4 (0.85×)
- Mount
- V58 (V-Mount)
- Aperture
- F4.8 - F22
- Verzeichnung
- 0.08 (0.65×) | 0.01 (0.75×) | 0.04 (0.85×)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-VGP116/4.8-0.75X |
|---|---|
| Zeilenauflösung | 16k (5 µm) | 12k (5 µm) | 8k (7 µm) |
| Focal Length(mm) | 116 mm |
| Aperture(F/#) | F4.8 – F22 |
| Image Circle Ø(mm) | Ø82 mm |
| Mount | V58 |
| Weight(kg) | 0.63 kg |
| Size(mm) | 68 × 60.01 |
| Filter Thread | M58×P0.75 |
| Working Temperature | -20 °C-60 °C |
| Distortion | 0.08 (0.65 ×) | 0.01 (0.75 ×) | 0.04 (0.85 ×) |
| Magnification（X） | 0.65 × | 0.75 × | 0.85 × |
| Working Distance(mm) | 248.4 (0.65 ×) | 224.6 (0.75 ×) | 206.4 (0.85 ×) |
| Flange Focal Distance(mm) | 176.94 (0.65 ×) | 188.54 (0.75 ×) | 200.14 (0.85 ×) |
| Object To Image Distance(mm) | 485.35 (0.65 ×) | 473.15 (0.75 ×) | 466.55 (0.85 ×) |
| Coaxial | no |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

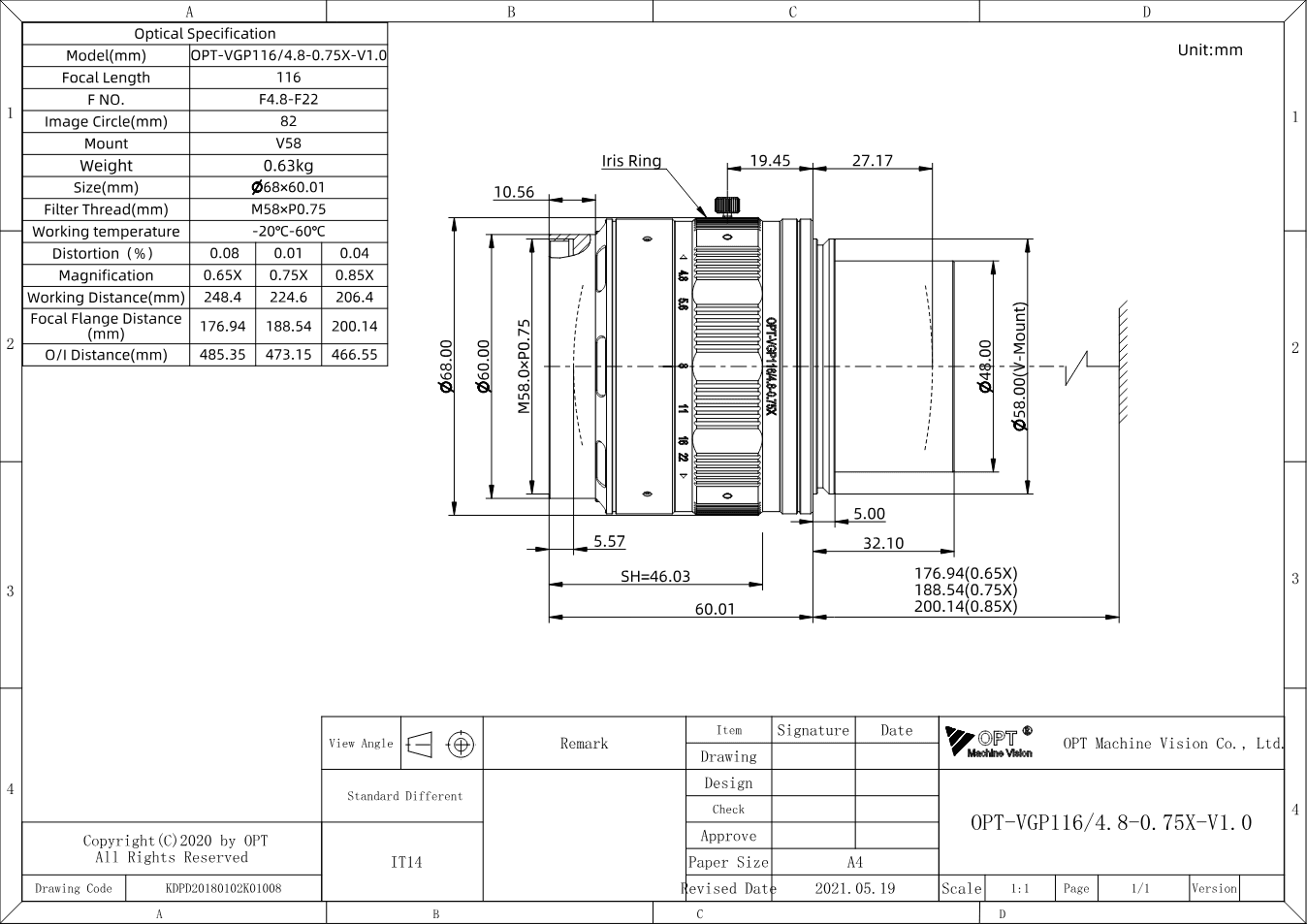

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-VGP116/4.8-0.75X (PDF)
Datasheet · EN · 204 KB
- Download datasheet
Optische Daten (MTF) OPT-VGP116/4.8-0.75X
Datasheet · EN · 383 KB
- Download datasheet
Grampus-Zeilenobjektive - Serienbroschüre OPT
Datasheet · EN · 1519 KB
- Download
3D-Modell OPT-VGP116/4.8-0.75X (STEP)
Technical drawing · EN · 4650 KB
Description
The OPT-VGP116/4.8-0.75X is listed in OPT's series “Grampus Line Scan Lenses” with focal length 116 mm, aperture F4.8 - F22, image circle Ø82 mm. In addition: working distance 248.4 (0.65 ×) | 224.6 (0.75 ×) | 206.4 (0.85 ×), V58.
At Ø82 mm, the Grampus series has the largest image circle in OPT's line scan range and suits 16k/5 µm, 12k/5 µm and 8k/7 µm line scan cameras. Distortion stays as low as 0.01 %, and the magnification ranges from 0.22 to 1.56×. It is made for the longest line sensors - wide webs and large panels in a single pass.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
