OPT-RN01705-171-064110C C-Mount lens
Manufacturer part number: OPT-RN01705-171-064110C
Series: Rhino-Bi-Telezentrik
- Objektivbauart
- Bi-telecentric
- Abbildungsmaßstab
- 0.1705 ×
- Max. Sensorformat
- 2/3"
- Objektfeld
- Ø 64.52 mm at 2/3"
- Arbeitsabstand
- 171 mm ± 3 mm
- Auflösungsvermögen
- 200 lp/mm
- Koaxiale Einkopplung
- No
- Mount
- C-Mount
- Baulänge
- 175.83 mm
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-RN01705-171-064110C |
|---|---|
| Working Distance(mm) | 171 mm ± 3 mm |
| Aperture(F/#) | F4.8 – F22 |
| Magnification（X） | 0.1705 × |
| Coaxial | no |
| Image Circle Ø(mm) | Ø11 mm (2/3") |
| Kleinste sinnvolle Pixelgröße | 2.5 µm |
| MTF30(lp/mm) | 200 lp/mm |
| Distortion | <0.03 % |
| Depth Of Field(mm) | 13.62 mm |
| Telecentricity | 0.10° |
| Flange Focal Distance(mm) | 17.526 mm |
| Object To Image Distance(mm) | 364.4 mm |
| Mount | C-Mount |
| Field Of View∅(mm) | 64.52 mm |
| Objektivbauart | Bi-telecentric |
| Max. Sensorformat | 2/3" |
| Gewicht | 1.79 kg |
| Abmessungen | 104 × 175.83 |
| Betriebstemperatur | -20 °C – +60 °C |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

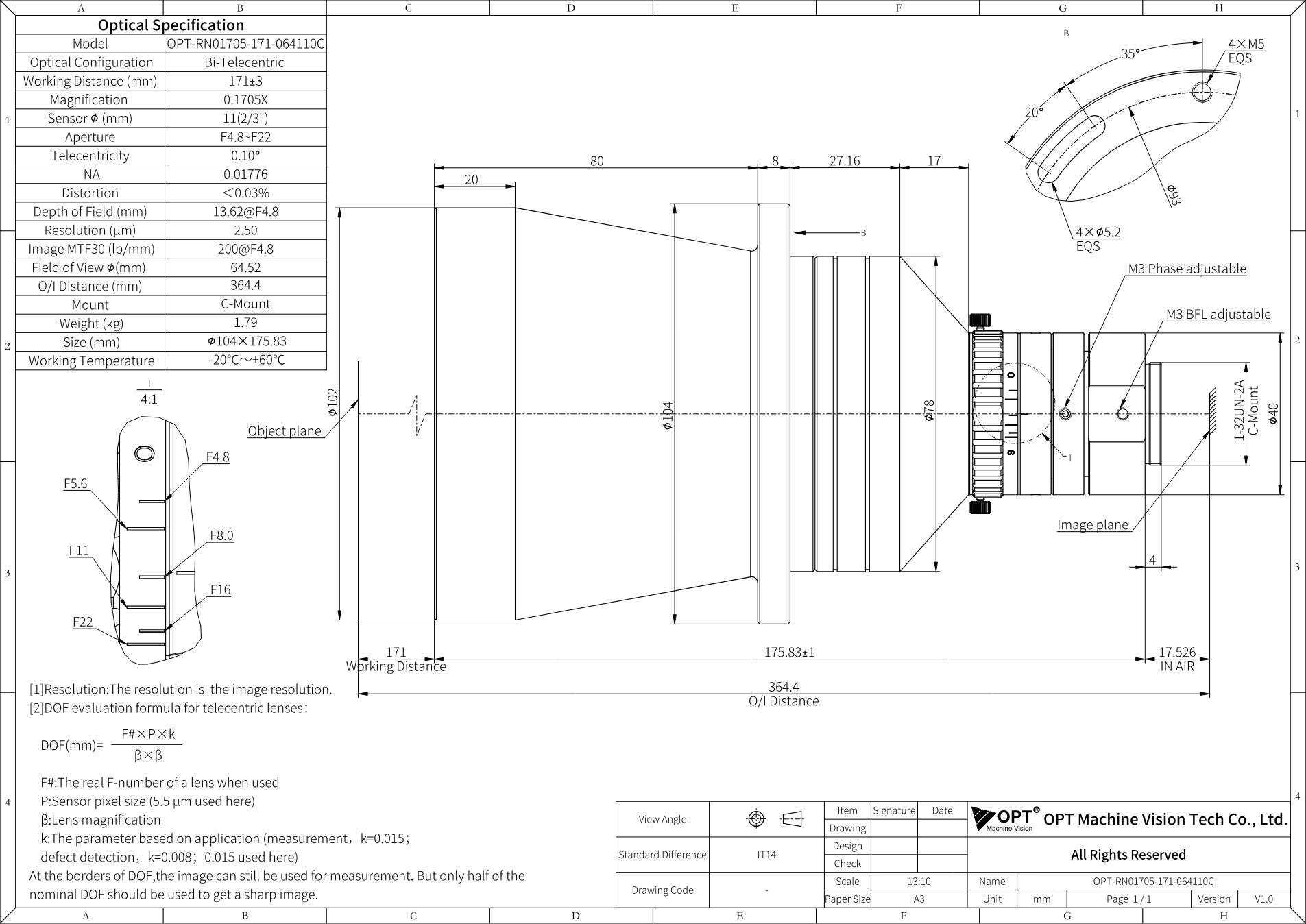

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-RN01705-171-064110C (PDF)
Datasheet · EN · 229 KB
- Download
3D-Modell OPT-RN01705-171-064110C (STEP)
Technical drawing · EN · 1568 KB
Description
The OPT-RN01705-171-064110C is listed in OPT's series “Rhino Bi-Telecentric” with magnification 0.1705 ×, aperture F4.8 - F22, image circle Ø11 mm (2/3"). Further key data: working distance 171 mm ± 3 mm, C-Mount, telecentricity 0.10°.
The Rhino series is telecentric on both sides: perspective and focus errors disappear, and the object is imaged at its true size. Large apertures bring plenty of light onto the sensor, and the field of view ranges, depending on the model, from Ø36 to Ø150 mm - for sensors from 1/2.5" to Ø82 mm. It is made for metrology: edges, holes, contours and height offsets that must be measured regardless of the object's position.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
