OPT-COBR1216-V1.0 Vibration-Resistant Fixed Focal Length Lens
Manufacturer part number: OPT-COBR1216-V1.0
Series: Cobra Ruggedized
- Focal length
- 12 mm
- Max. Sensorformat
- 1/1.8" (5 µm)
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 100 mm
- Aperture
- F16
- Filtergewinde
- M25 × 0.5
- Resolution
- 1.6 MP (berechnet)
- Fokusbereich (ab Objektivvorderseite)
- 100 mm up to ∞
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-COBR1216-V1.0 |
|---|---|
| Focal Length (mm) | 12 mm |
| Adjustion Type | manuell |
| Aperture | F16 |
| Sensor Ø (mm) | Ø9 mm (1/1.8") |
| Working Distance (mm) | 100 mm – ∞ |
| Mag. at MOD | 0.101 × at WD 100 |
| Resolution (µm) | 5.00 µm |
| TV Distortion | <0.16 % at WD 300 |
| Back Focal Length (mm) | 14.00 mm at WD 100 | 12.76 mm at ∞ |
| Effective Front Ø (mm) | 19.1 mm |
| Diameter Back Ø (mm) | 12.0 mm |
| Chief Ray Angle | <5° |
| Mount | C-Mount |
| Weight (kg) | 0.064 kg |
| Size (mm) | Ø29 × 34.6 mm |
| Filter Thread (mm) | M25×0.5-6g |
| Working Temperature | -20 °C – +60 °C |
| Max. Sensorformat | 1/1.8" |
| Auflösung | 1.6 MP (von uns berechnet) |
| Spektralbereich | Nicht angegeben |
| Blendensteuerung | Nicht zutreffend |
| Vibrationsfest | Yes |
| Minimum object distance (MOD) | 100 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

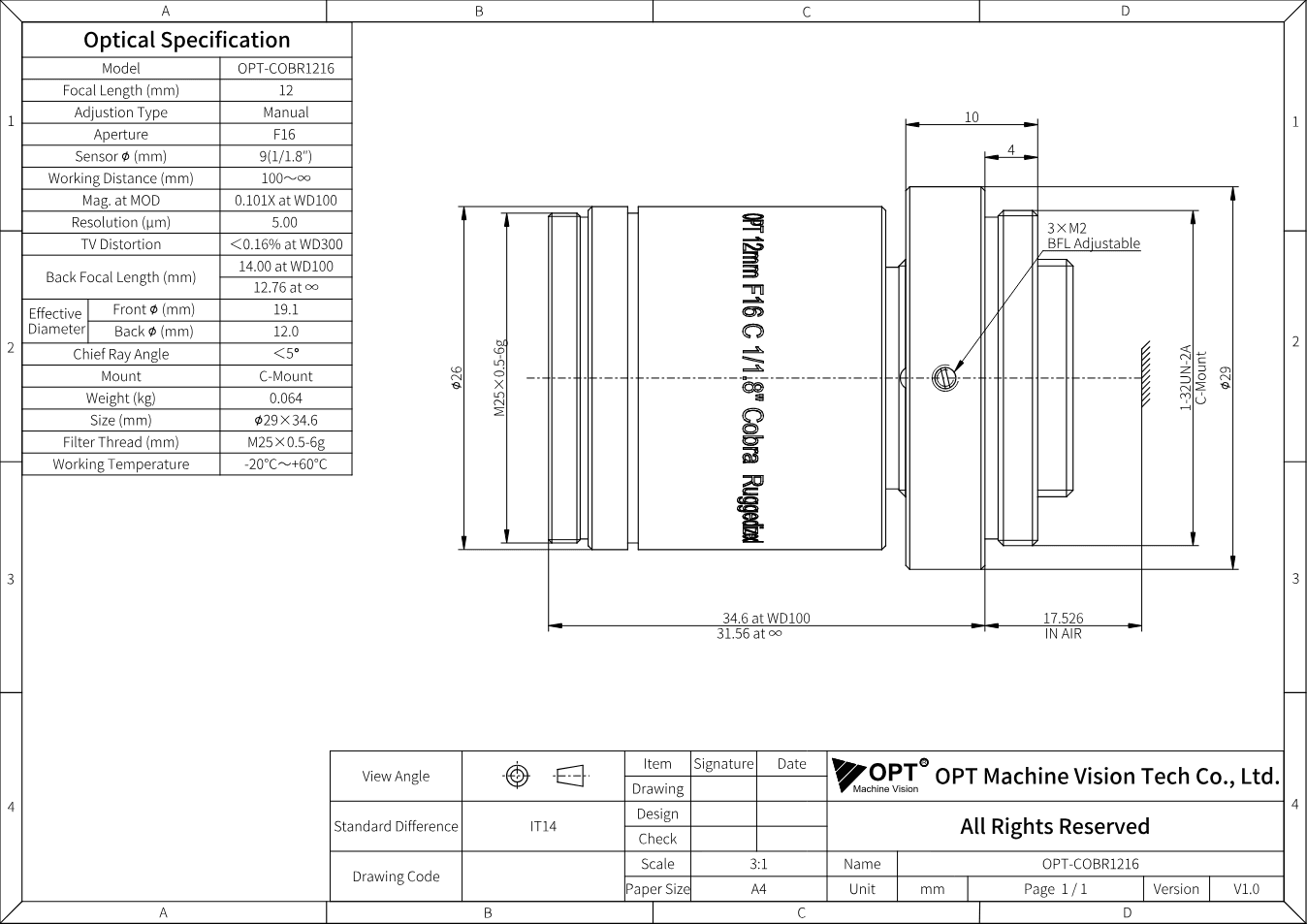

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-COBR1216-V1.0 (PDF)
Datasheet · EN · 185 KB
- Download datasheet
Optische Daten (MTF) OPT-COBR1216
Datasheet · EN · 1 MB
- Download
3D-Modell OPT-COBR1216-V1.0 (STEP, Grundmodell OPT-COBR1228-V1.0)
Technical drawing · EN · 3 MB
More variants in this series
- OPT-COBR0828-V1.0 Vibration-Resistant Fixed Focal Length Lens
- OPT-COBR0840-V1.0 Vibration-Resistant Fixed Focal Length Lens
- OPT-COBR0856-V1.0 Vibration-Resistant Fixed Focal Length Lens
- OPT-COBR0880-V1.0 Vibration-Resistant Fixed Focal Length Lens
- OPT-COBR1211-V1.0 Vibration-Resistant Fixed Focal Length Lens
- OPT-COBR1211B C-Mount lens
- OPT-COBR1216B C-Mount lens
- OPT-COBR1228-V1.0 Vibration-Resistant Fixed Focal Length Lens
- OPT-COBR1228B-V1.0 C-Mount lens
- OPT-COBR1240-V1.0 Vibration-Resistant Fixed Focal Length Lens
- OPT-COBR1240B C-Mount lens
- OPT-COBR1256-V1.0 Vibration-Resistant Fixed Focal Length Lens
Description
OPT-COBR1216-V1.0, a vibration-resistant fixed focal length lens of the series “Cobra Ruggedized” by OPT, comes with focal length 12 mm, aperture F16, image circle Ø9 mm (1/1.8"). In addition: working distance 100 mm - ∞ and C-Mount.
Cobra Ruggedized is the vibration-resistant version of the Cobra series: fixed aperture, bonded lens groups and a robust housing. Shocks and continuous vibration shift neither focus nor optical axis; the resolution stays at up to 200 lp/mm for sensors up to 2/3". Intended for robots, vehicles, presses and anything that vibrates - wherever an adjustable lens would need readjusting after a short time.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
