OPT-COBR0828 Vibration-Resistant Fixed Focal Length Lens
Manufacturer part number: OPT-COBR0828
Series: Cobra Ruggedized
- Focal length
- 8 mm
- Max. Sensorformat
- 1/1.8" (2.5 µm)
- Mindestobjektdistanz (MOD)
- 100 mm
- Aperture
- F2.8
- Filtergewinde
- M25 × 0.5
- Resolution
- 6.2 MP (berechnet)
- Fokusbereich (ab Objektivvorderseite)
- 100 mm up to ∞
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-COBR0828 |
|---|---|
| Focal length (mm) | 8 mm |
| Aperture | F2.8 |
| Working Distance（mm） | 100 mm – ∞ |
| Sensor ∅(mm) | Ø9 mm (1/1.8") |
| Resolution (µm) | 2.5 µm |
| TV Distortion | <0.18 % at WD 300 |
| Back Focal Length (mm) | 12.99 mm at WD 100 | 12.34 mm at ∞ |
| Magnification | 0.071 × at WD 100 |
| Chief Ray Angle | <5° |
| Filter Thread (mm) | M25×0.5-6g |
| Weight (kg) | 0.06 kg |
| Max. Sensorformat | 1/1.8" |
| Auflösung | 6.2 MP (von uns berechnet) |
| Pixelgröße | 2.5 µm |
| Anschluss | Nicht angegeben |
| Mindestobjektdistanz (MOD) | 100 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 0.18 % |
| Blendensteuerung | Nicht zutreffend |
| Vibrationsfest | Yes |
| Baulänge | Nicht angegeben |
| Durchmesser | Nicht angegeben |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

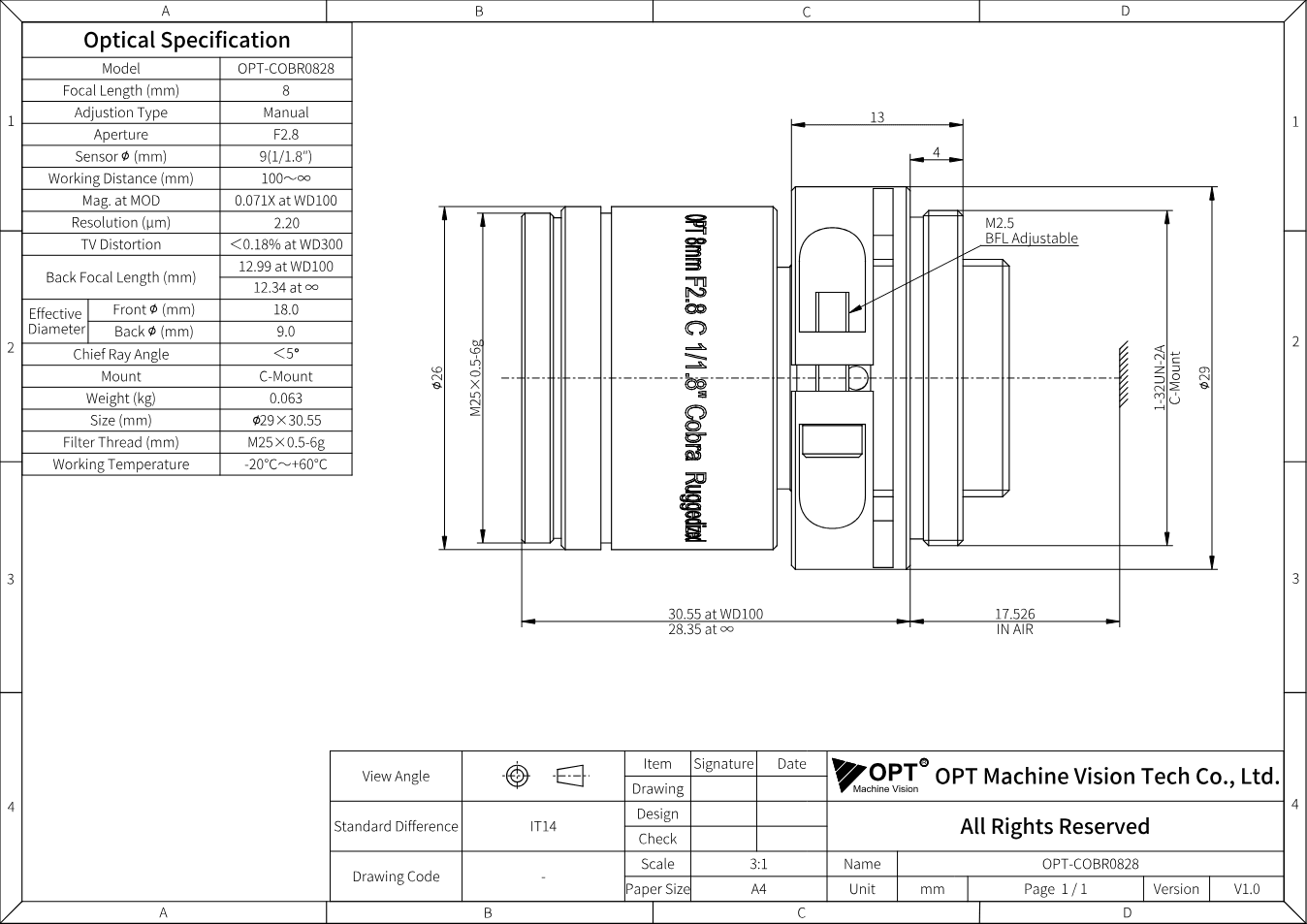

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-COBR0828 (PDF)
Datasheet · EN · 205 KB
- Download datasheet
Optische Daten (MTF) OPT-COBR0828
Datasheet · EN · 1226 KB
- Download
3D-Modell OPT-COBR0828 (STEP)
Technical drawing · EN · 3685 KB
Description
OPT-COBR0828 is a vibration-resistant fixed focal length lens from the series “Cobra Ruggedized” by OPT: focal length 8 mm, aperture F2.8, image circle Ø9 mm (1/1.8"). Also: working distance 100 mm - ∞.
Cobra Ruggedized is the vibration-resistant version of the Cobra series: fixed aperture, bonded lens groups and a housing under Ø26 × 42.6 mm. Shocks and continuous vibration shift neither focus nor optical axis; the resolution stays at up to 200 lp/mm for sensors up to 2/3". Intended for robots, vehicles, presses and anything that vibrates - wherever an adjustable lens would need readjusting after a short time.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
