OPT-COB0828 C-Mount lens
Manufacturer part number: OPT-COB0828
Series: Cobra-Festbrennweiten
- Focal length
- 8 mm
- Max. Sensorformat
- 1/1.8" (2.2 µm)
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 100 mm
- Aperture
- F2.8 - F16
- Filtergewinde
- M27 × 0.5
- Resolution
- 8 MP (berechnet)
- Fokusbereich (ab Objektivvorderseite)
- 100 mm up to ∞
- Fokuseinstellung
- Manual
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-COB0828 |
|---|---|
| Focal Length(mm) | 8 mm |
| Sensor Format | 1/1.8" |
| Image Resolution(µm) | 2.2 µm |
| Adjustion Type | manuell |
| Aperture(F/#) | F2.8 – F16 |
| Working Distance(mm) | 100 mm – ∞ |
| Magnification（X） | 0.071 × at WD 100 |
| TV Distortion(%) | <0.18 % at WD 300 |
| Back Focal Length(mm) | 12.99 mm at WD 100 | 12.34 mm at ∞ |
| Chief Ray Angle | <5° |
| Mount | C-Mount |
| Filter Thread | M27×P0.5 |
| Size(mm) | Ø29.00 × 30.00 |
| Weight(kg) | 0.052 kg |
| Working Temperature | -20 °C – 60 °C |
| Coaxial | no |
| Image Circle Ø(mm) | Ø9 mm (1/1.8") |
| Flange Focal Distance(mm) | 17.526 mm |
| Max. Sensorformat | 1/1.8" |
| Auflösung | 8 MP (von uns berechnet) |
| Pixelgröße | 2.2 µm |
| Mindestobjektdistanz (MOD) | 100 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 0.18 % |
| Blendensteuerung | Nicht angegeben |
| Vibrationsfest | No |
| Baulänge | 30 mm |
| Durchmesser | Ø 29 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

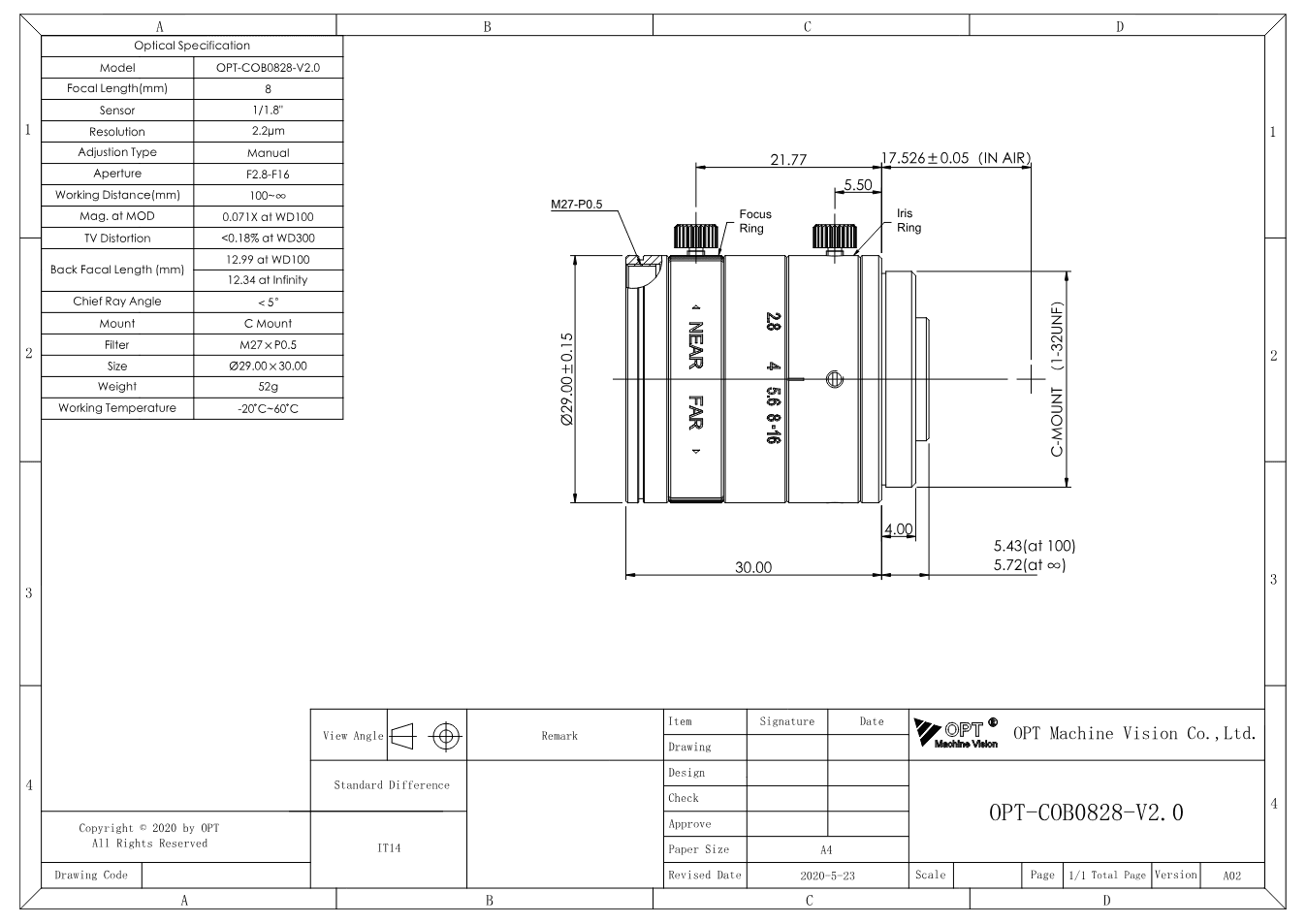

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-COB0828 (PDF)
Datasheet · EN · 145 KB
- Download datasheet
Optische Daten (MTF) OPT-COB0828
Datasheet · EN · 349 KB
- Download datasheet
Cobra-Festbrennweiten - Serienbroschüre OPT
Datasheet · EN · 2 MB
- Download
3D-Modell OPT-COB0828 (STEP)
Technical drawing · EN · 4 MB
Description
OPT-COB0828, a fixed focal length lens of the series “Cobra Fixed Focal Length Lenses” by OPT, comes with focal length 8 mm, aperture F2.8 - F16, image circle Ø9 mm (1/1.8"). Further key data: working distance 100 mm - ∞, C-Mount.
At Ø29 mm, the Cobra series is as slim as a compact camera and yet designed for pixels from 2.2 µm - up to 230 lp/mm across the full image field. The coating covers 400 to 1000 nm, TV distortion stays below 0.2 %, and a chief ray angle below 5° keeps the illumination uniform right into the corners. It fits wherever little space and high resolution come together: character inspection on plastic parts, chip and display inspection, particle control.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
