OPT-CDP5028 C-Mount lens
Manufacturer part number: OPT-CDP5028
Series: Dolphin 20-MP-Festbrennweiten
- Focal length
- 50 mm
- Max. Sensorformat
- 1.1" (2.4 µm)
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 250 mm
- Aperture
- F2.8 - F16
- Filtergewinde
- M32.5 × 0.5
- Resolution
- 20 MP
- Fokusbereich (ab Objektivvorderseite)
- 250 mm up to ∞
- Fokuseinstellung
- Manual
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-CDP5028 |
|---|---|
| Focal Length(mm) | 50 mm |
| Image Circle Ø(mm) | 1.1"(17.6 mm) |
| Image Resolution(µm) | 2.4 µm |
| Adjustion Type | manuell |
| Aperture(F/#) | F2.8 – F16 |
| Working Distance(mm) | 250 mm – ∞ |
| Magnification（X） | 0.206 × at WD 250 |
| TV Distortion(%) | <0.19 % at WD 250 | <0.08 % at WD 500 |
| Back Focal Length(mm) | 13.05 mm |
| Chief Ray Angle | <3.64°y=8.8 mm |
| Mount | C-Mount |
| Filter Thread | M32.5×P0.5 |
| Size(mm) | Ø40 × 71.05 |
| Weight(kg) | 0.17 kg |
| Working Temperature | -20 °C – 60 °C |
| Coaxial | no |
| Flange Focal Distance(mm) | 17.526 mm |
| Max. Sensorformat | 1.1" |
| Auflösung | 20 MP |
| Pixelgröße | 2.4 µm |
| Mindestobjektdistanz (MOD) | 250 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 0.19 % |
| Blendensteuerung | Nicht angegeben |
| Vibrationsfest | No |
| Baulänge | 71.05 mm |
| Durchmesser | Ø 40 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

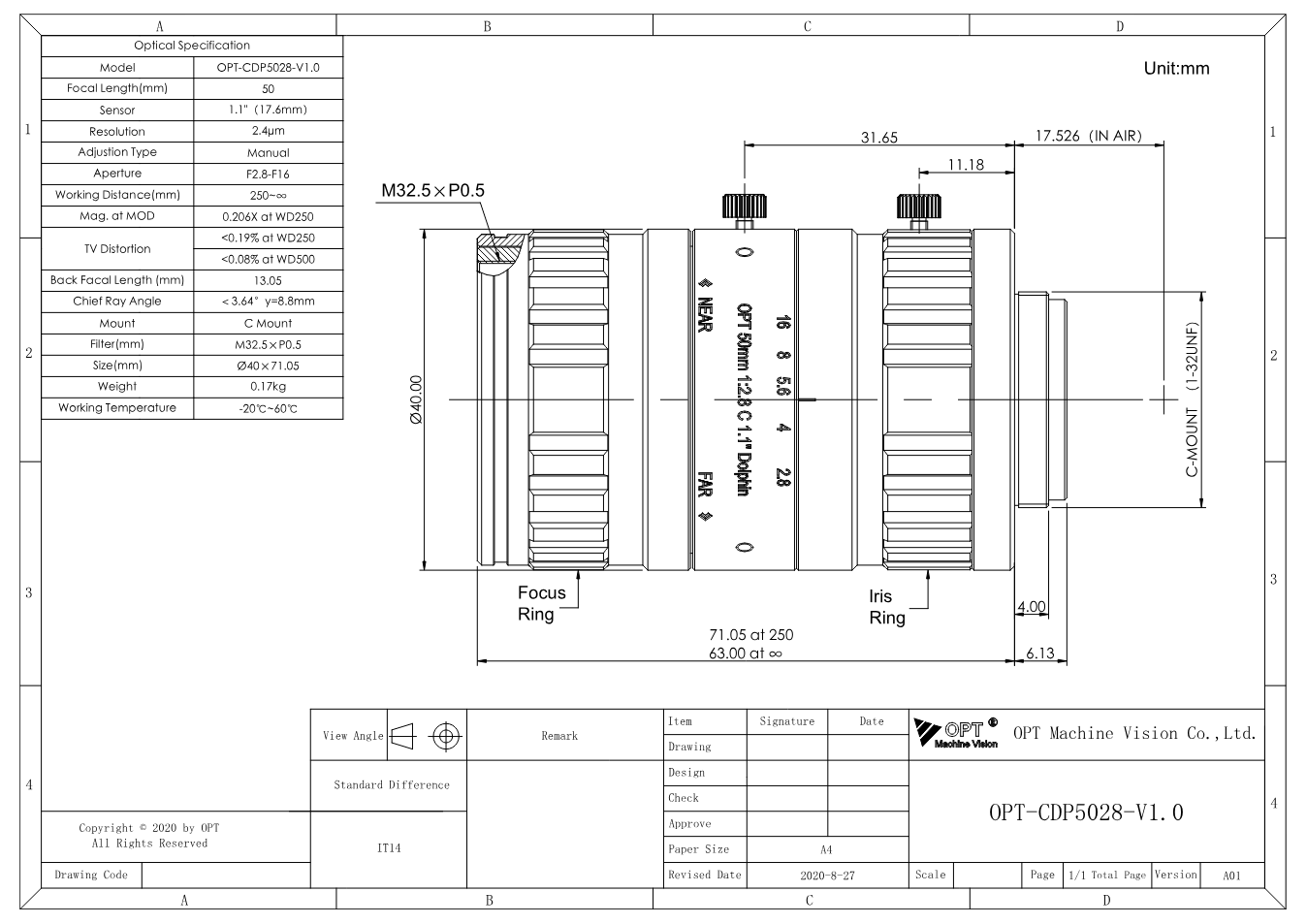

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-CDP5028 (PDF)
Datasheet · EN · 157 KB
- Download datasheet
Optische Daten (MTF) OPT-CDP5028
Datasheet · EN · 344 KB
- Download datasheet
Dolphin 20-MP-Festbrennweiten - Serienbroschüre OPT
Datasheet · EN · 3094 KB
- Download
3D-Modell OPT-CDP5028 (STEP)
Technical drawing · EN · 2828 KB
Description
OPT-CDP5028, a fixed focal length lens of the series “Dolphin 20 MP Fixed Focal Length Lenses” by OPT, comes with focal length 50 mm, aperture F2.8 - F16, image circle 1.1"(17.6mm). Further key data: working distance 250 mm - ∞, C-Mount.
The Dolphin series is designed for 20 megapixel cameras with pixels from 2.4 µm and sensors up to 1.1" (Ø17.6 mm) and reaches up to 208 lp/mm across the entire image field. A chief ray angle below 5° ensures uniform illumination without edge fall-off; the coating covers 400 to 1000 nm. It is the first choice for high-resolution area scan cameras of the 1.1" class in electronics, battery and precision inspection.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
