HIKROBOT
lens SA8520M-10MP
Manufacturer part number: 310100708
- Focal length
- 85 mm
- Max. Sensorformat
- 4/3"
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 1200 mm
- Aperture
- F2.0 - F22
- Filtergewinde
- M77 × 0.75
- Resolution
- 10 MP
- Fokuseinstellung
- Manual
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310100708 |
|---|---|
| Focal length | 85 mm |
| Max. sensor format | 4/3" |
| Resolution | 10 MP |
| Pixel size | 5.0 µm (calculated) |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Minimum object distance | 1.2 m |
| F-number | F2.0 to F22 |
| Field of view | D (22.6 mm): 15.4°; H (18.13 mm): 12.1°; V (13.6 mm): 9.3° |
| Optical distortion | −0.04 % |
| Image size | Ø23 mm (4/3") |
| Filter thread | M77 × 0.75 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 111.7 mm |
| Diameter | Ø80 mm |
| Weight | 666 g (1.5 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

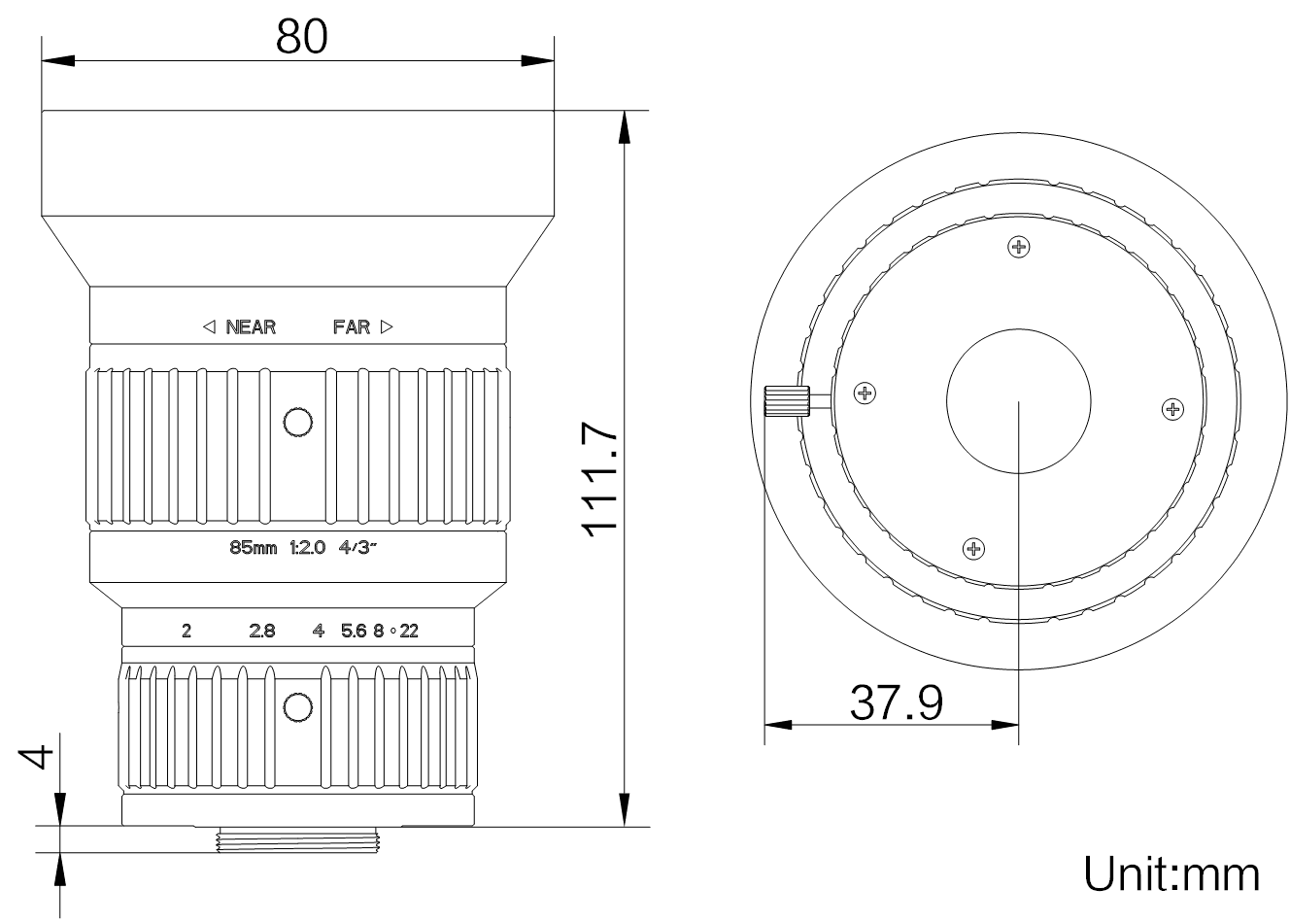

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv SA8520M-10MP
Datasheet · DE · 641 KB
- Download
Technical drawing HikRobot Objektiv SA8520M-10MP
Technical drawing · DE · 2 MB
Accessories
More HIKROBOT products in this category
Description
Key Feature - High resolution and excellent image uniformity - F2.0, Maximum image circle of 4/3'' - Low distortion to improve measurement accuracy - High peripheral brightness ratio to ensure image brightness consistency
