Area scan camera MV-CS020-10GC
Manufacturer part number: MV-CS020-10GC · 306301906
- Resolution
- 2 MP
- Pixels
- 1624 × 1240
- Max. frame rate
- 60 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1/1.7"
- Pixel size
- 4.5 µm × 4.5 µm
- Interface
- GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CS020-10GC |
|---|---|
| Type | 2MP Area Scan Camera, GigE, IMX430, Color |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX430 |
| Pixel size | 4.5 µm × 4.5 µm |
| Sensor size | 1/1.7" |
| Resolution | 1624 × 1240 |
| Max. frame rate | 60 fps @1624 × 1240 Bayer RG 8 |
| Dynamic range | 72.1 dB |
| SNR | 43.8 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 µs to 5 µs Standard exposure mode: 6 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Color |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 3.0 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

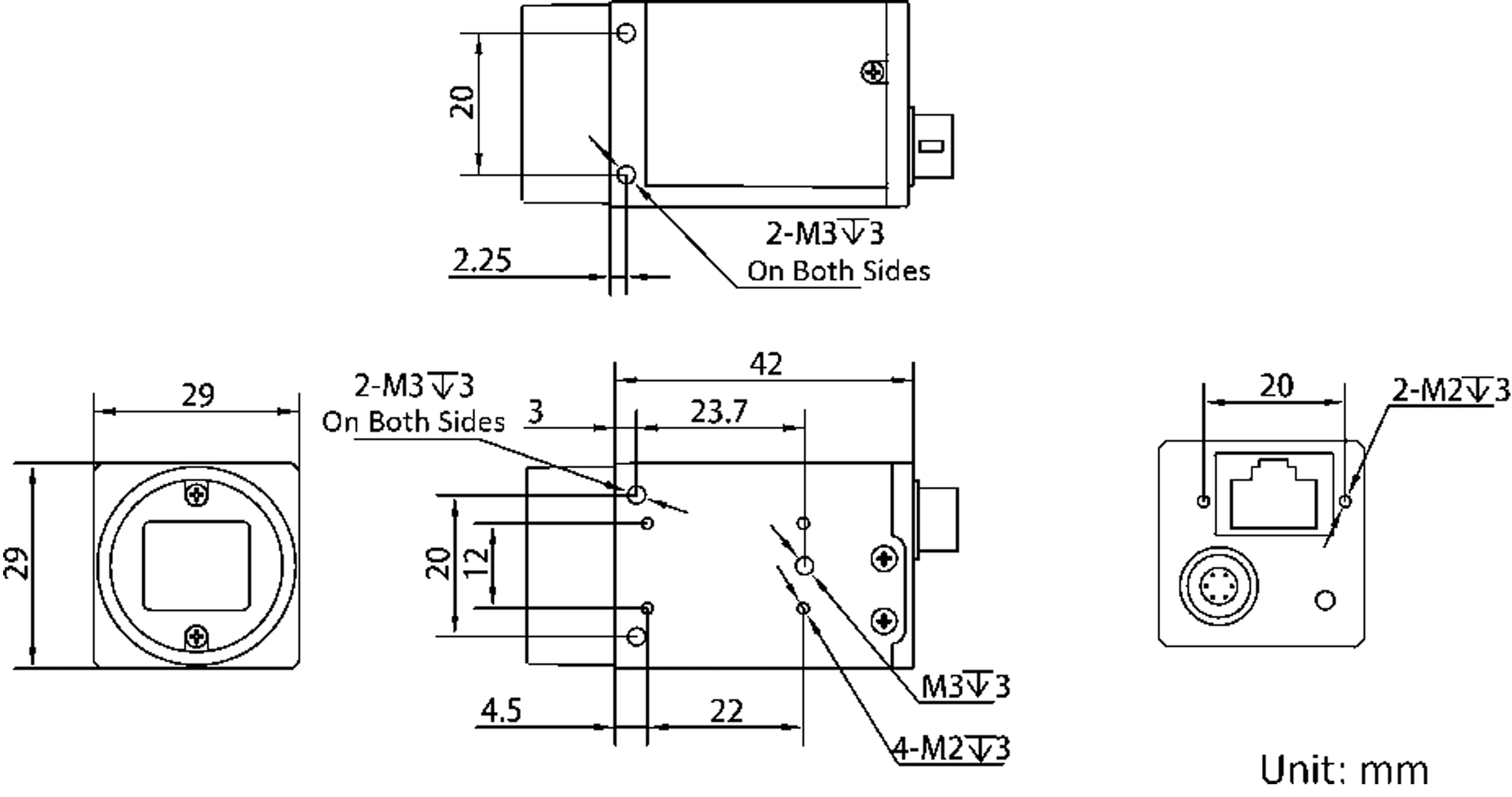

Dimensional drawing
