HIKROBOT

Area scan camera MV-CS013-60GN

Manufacturer part number: MV-CS013-60GN · 306302387

Resolution: 1.3 MP
Pixels: 1224 × 1024
Max. frame rate: 59.2 fps
Color / mono: NIR
Shutter type: Global Shutter
Sensor format: 2/3"
Pixel size: 6.9 µm × 6.9 µm
Interface: GigE
Lens mount: C-Mount

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CS013-60GN
Type	1.3MP Area Scan Camera, GigE, NIR
Sensor type	CMOS, global shutter
Sensor model	Stacked BSI
Pixel size	6.9 µm × 6.9 µm
Sensor size	2/3"
Resolution	1224 × 1024
Max. frame rate	59.2 fps @ 1224 × 1024 Mono 8
Dynamic range	73.9 dB
SNR	42.4 dB
Gain	0 dB to 20 dB
Exposure time	30 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Near-infrared
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Not supported
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 1.9 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 100 g (0.2 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20 % RH to 95 % RH (No condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

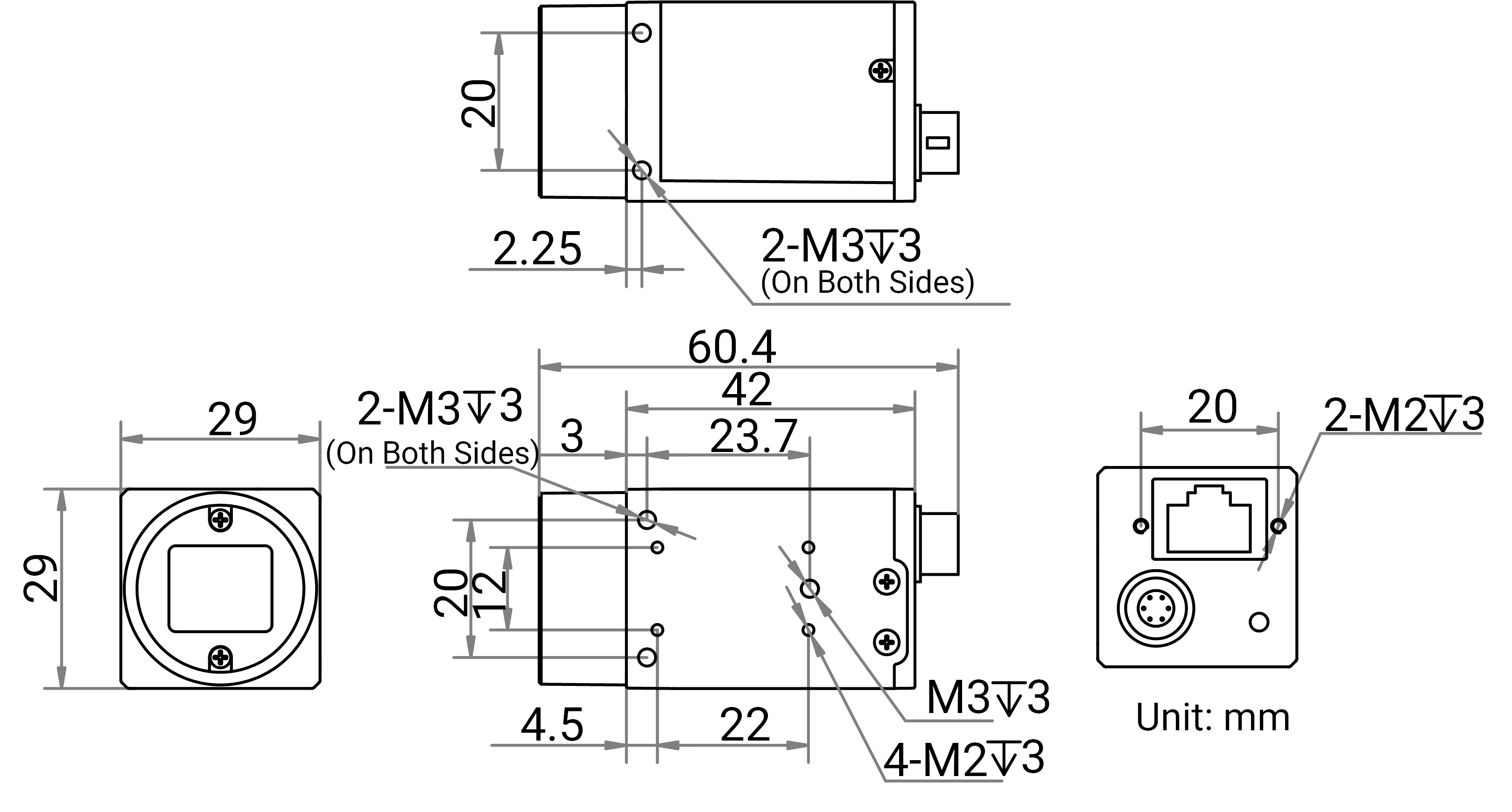

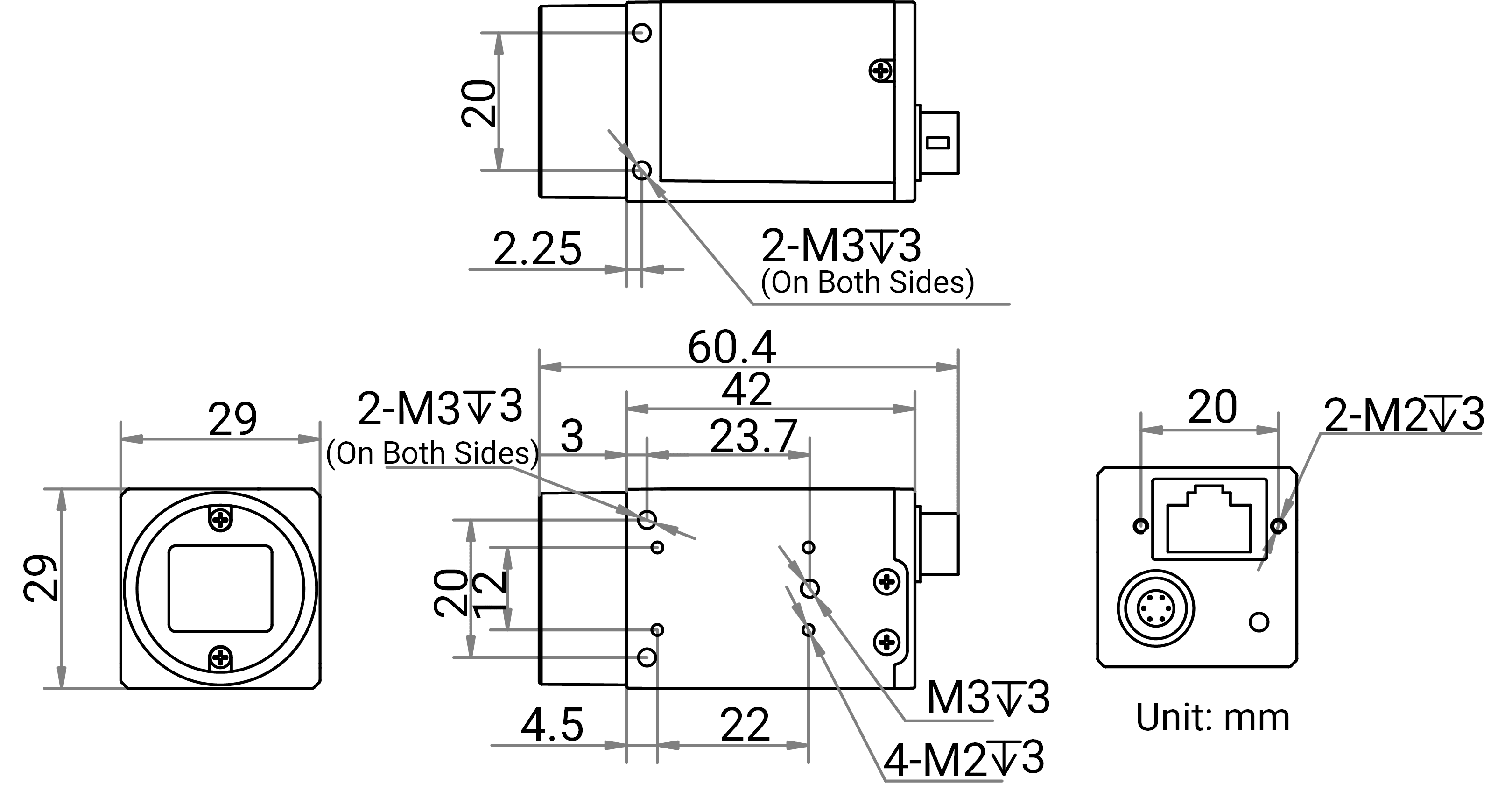

Dimensional drawing

Maßzeichnung Hikrobot Flächenkamera MV-CS013-60GN

Documents

Datasheet Hikrobot Flächenkamera MV-CS013-60GN
Datasheet · EN · 530 KB
Download datasheet
Technical drawing Hikrobot Flächenkamera MV-CS013-60GN
Technical drawing · EN · 8150 KB
Download
Software / Firmware V4.0.38 Hikrobot Flächenkamera MV-CS013-60GN
Software / firmware · EN · 1339 KB
Download
Manual Hikrobot Flächenkamera MV-CS013-60GN
Manual · EN · 3930 KB
Download

Accessories

Data cables(25)

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 1 m

RJ45 (with locking stud) · 1 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 60 m

RJ45 (with locking stud) · 60 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Datenkabel

Description

Key Feature - Adopts brand new design to reduce power consumption. - Supports auto or manual adjustment of gain, exposure time, LUT, etc., and supports Sequencer function. - Compact design with mounting holes on panels for flexible mounting from 4 sides. - Adopts GigE interface and max. transmission distance of 100 meters without relay. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
