HIKROBOT

Area scan camera MV-CI003-GL-T6

Manufacturer part number: MV-CI003-GL-T6 · 306302441

Resolution: 0.3 MP
Pixels: 640 × 512
Max. frame rate: 50 fps
Color / mono: Color, Mono
Pixel size: 17 µm
Interface: GigE
Spectral range: LWIR
Focal length: 6.3 mm

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CI003-GL-T6
Sensor type	Vanadium oxide uncooled detector
Pixel size	17 µm
Resolution	640 × 512
Max. frame rate	50 fps @ 640 × 512
NETD	< 50 mk (F1.0, 30 °C)
Pixel format	Mono 16, Float 32, YUV422(YUYV)Packed, YUV 422 Packed
Color palettes	White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot
Image process	Supports brightness, contrast, Gamma correction
Focal length	6.3 mm
Field of view	88.5° × 73.2°
Space resolution	2.70
Aperture	1.0
Thermal object distance	0.6 m
Temperature measurement range	–20 °C to 150 °C or 0 °C to 550 °C (–4 °F to 302 °F or 32 °F to 1022 °F)
Temperature measurement accuracy	± 2 °C (35.6 °F) or ± 2 % of the readings
Max. temperature measurement distance	5 m (@ target size 01 × 0.1 m2)
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC
Power consumption	Typ. 2.8 W @ 12 VDC
Installation method	Supports installation from 4 sides
Dimension	48 mm × 48 mm × 117.9 mm (1.9" × 1.9" × 4.6")
Weight	Approx. 370 g (0.8 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 60 °C (–4 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20 % RH to 80 % RH (no condensation)
Client software	MVS
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux.
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

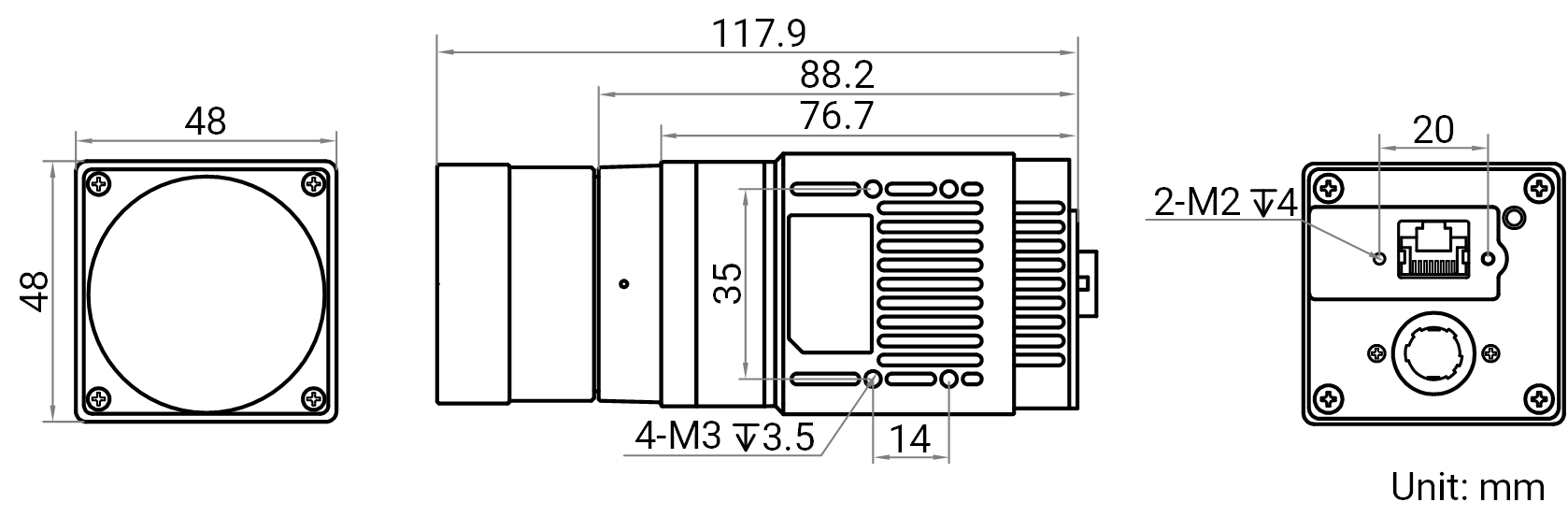

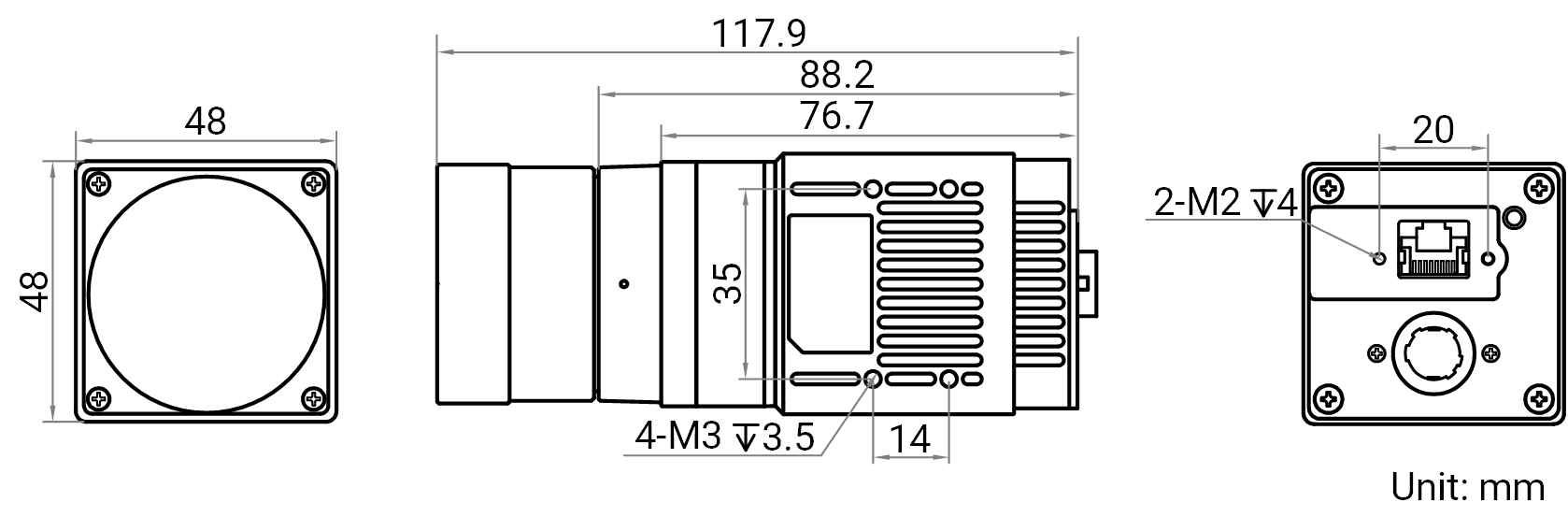

Dimensional drawing

Maßzeichnung HikRobot Flächenkamera MV-CI003-GL-T6

Documents

Datasheet HikRobot Flächenkamera MV-CI003-GL-T6
Datasheet · EN · 464 KB
Download datasheet
Technical drawing HikRobot Flächenkamera MV-CI003-GL-T6
Technical drawing · EN · 3601 KB
Download
Software / Firmware V1.0.2 HikRobot Flächenkamera MV-CI003-GL-T6
Software / firmware · EN · 14163 KB
Download
Manual HikRobot Flächenkamera MV-CI003-GL-T6
Manual · EN · 2864 KB
Download

Accessories

Data cables(25)

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 1 m

RJ45 (with locking stud) · 1 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 60 m

RJ45 (with locking stud) · 60 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Datenkabel

Description

Key Feature - Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP. - Supports temperature measurement rules of point, polygon, line and circle. - Supports single-region and multi-region temperature measurement alarm settings. - Compact design with mounting holes on panels for flexible mounting from 4 sides. - Adopts GigE interface and max. transmission distance of 100 meters without relay. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
