Area scan camera MV-CH1510-10FM-M72-TF
Manufacturer part number: MV-CH1510-10FM-M72-TF · 306301499
- Resolution
- 151 MP
- Pixels
- 14208 × 10640
- Max. frame rate
- 6.2 fps
- Color / mono
- Mono
- Shutter type
- Rolling Shutter
- Sensor format
- 66.7 mm
- Pixel size
- 3.76 µm × 3.76 µm
- Interface
- GigE
- Lens mount
- M72 × 0.75
- Global reset
- Yes
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH1510-10FM-M72-TF |
|---|---|
| Type | 151MP Area Scan Camera, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX411 |
| Pixel size | 3.76 µm × 3.76 µm |
| Sensor size | 66.7 mm |
| Resolution | 14208 × 10640 |
| Max. frame rate | 6.2 fps @ 14208 × 10640 Mono 8 |
| Dynamic range | 78.8 dB |
| SNR | 45 dB |
| Gain | 0 dB to 36 dB |
| Exposure time | 30 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling mode and Global Reset |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed/16 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | Typ. 11.28 W @ 24 VDC (non-TEC mode) Typ. 48.96 W @ 24 VDC (TEC mode) |
| Lens mount | M72*0.75, flange back length 19.55 mm |
| Dimension | 120 mm × 120 mm × 89 mm (4.7" × 4.7" × 3.5") |
| Weight | Approx. 2.5 kg (5.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

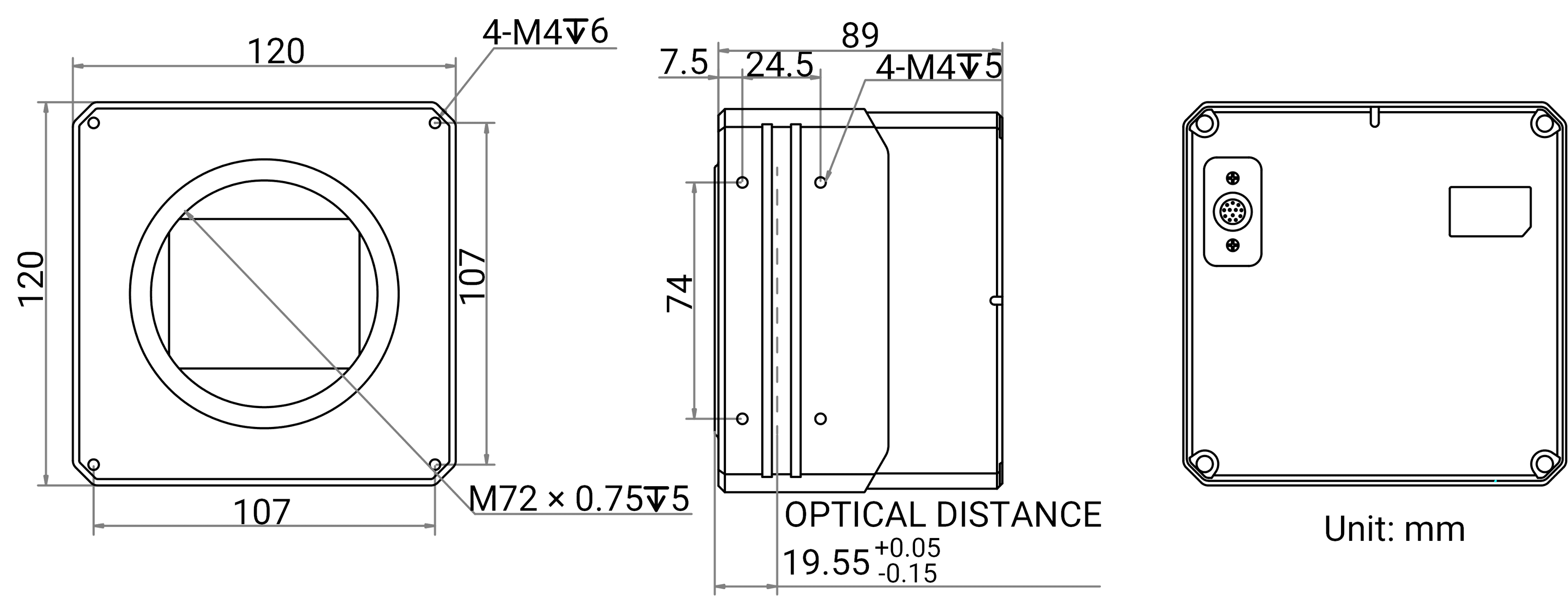

Dimensional drawing
