Area scan camera MV-CH120-20GC
Manufacturer part number: MV-CH120-20GC
- Resolution
- 12 MP
- Pixels
- 4096 × 3072
- Max. frame rate
- 9.6 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1"
- Pixel size
- 3.2 µm × 3.2 µm
- Interface
- GigE
- Lens mount
- C-Mount
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH120-20GC |
|---|---|
| Type | 12MP Area Scan Camera, GigE, XGS12000, Color, V4 |
| Sensor type | CMOS, global shutter |
| Sensor model | OnSemi XGS12000 |
| Pixel size | 3.2 µm × 3.2 µm |
| Sensor size | 1" |
| Resolution | 4096 × 3072 |
| Max. frame rate | 9.6 fps @ 4096 × 3072 Bayer RG 8 |
| Dynamic range | 66.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 18 dB |
| Exposure time | UltraShort exposure mode: 52 µs to 161 µs Standard exposure mode: 162 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.7 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision 2.0, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

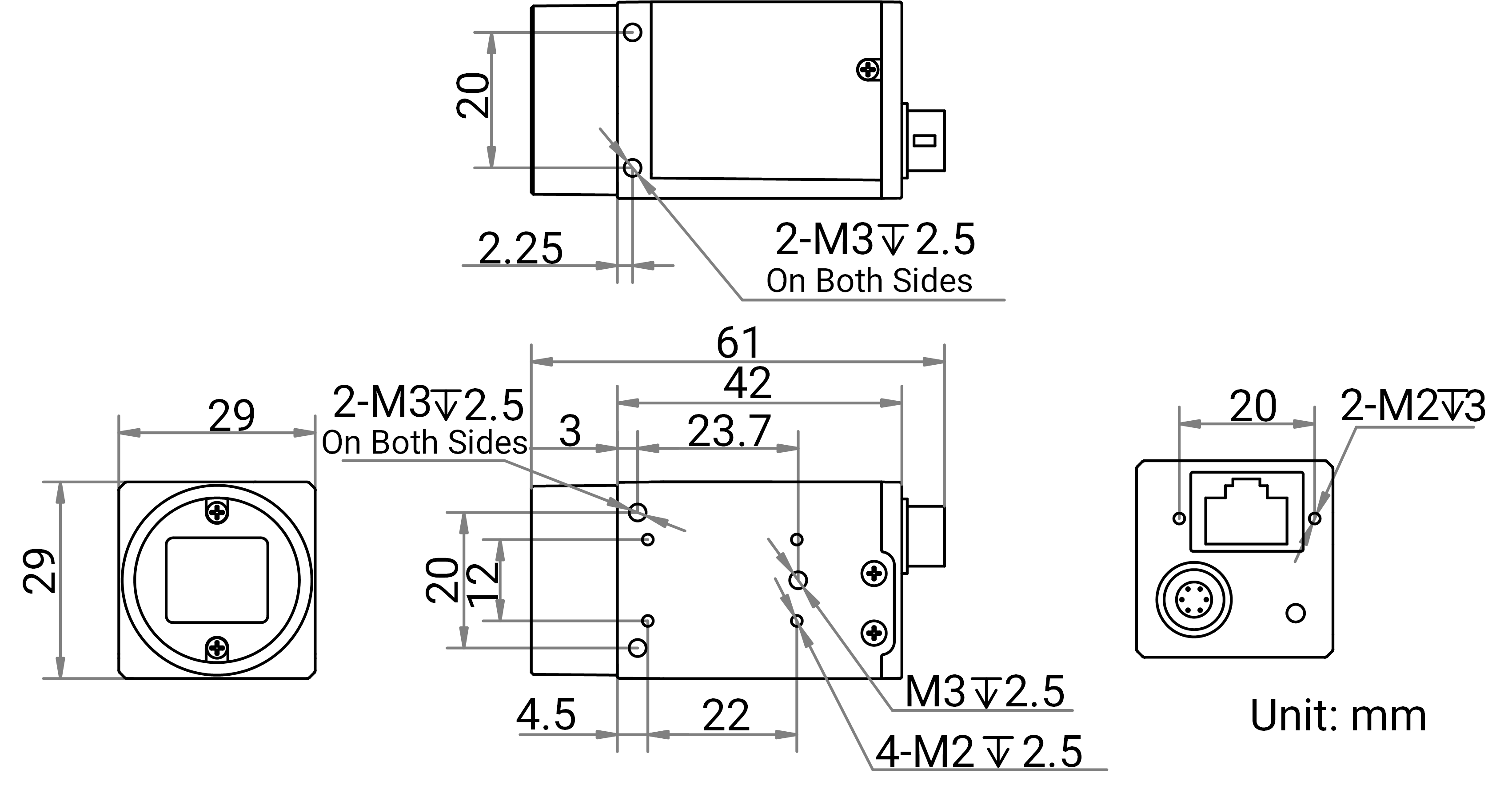

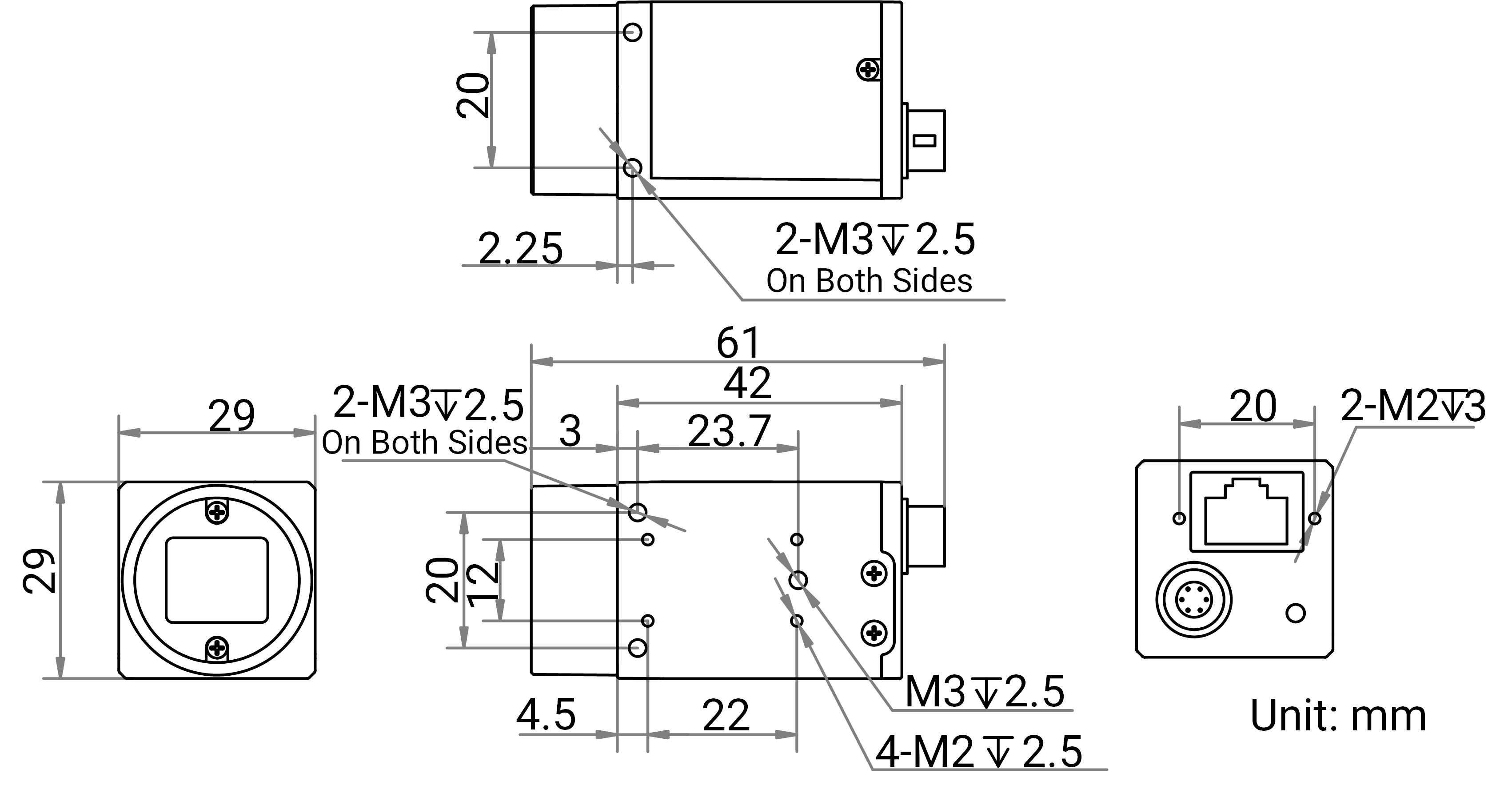

Dimensional drawing
