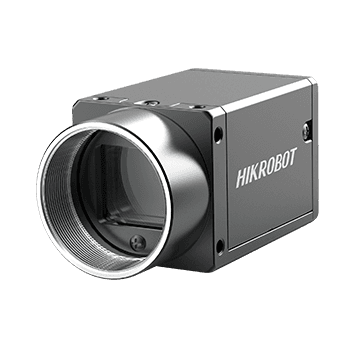

Area scan camera MV-CH120-10GM V5
Manufacturer part number: MV-CH120-10GM V5
- Resolution
- 12.3 MP
- Pixels
- 4096 × 3000
- Max. frame rate
- 9.9 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 1.1"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH120-10GM V5 |
|---|---|
| Type | 12MP Area Scan Camera, GigE, IMX304, Mono, V5 |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX304 |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 9.9 fps @ 4096 × 3000 Mono 8 |
| Dynamic range | 70.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 µs to 14 µs Standard exposure mode: 15 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, and supports Trigger Width |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.3 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 98 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision 2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Input voltage | 9 VDC to 24 VDC, supports PoE |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CH120-10GM V5
Datasheet · EN · 524 KB
- Download
Technical drawing Hikrobot Flächenkamera MV-CH120-10GM V5
Technical drawing · EN · 3500 KB
Description
Key Feature
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Supports auto and manual adjustment of gain, exposure control, and manual adjustment of LUT and Gamma correction.
- Supports LSC, Sequencer, transfer passive mode, etc.
- Color camera supports interpolation, white balance, CCM, Super Palette, and Super Bayer, etc.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.
MV-CH120-10GM V5
