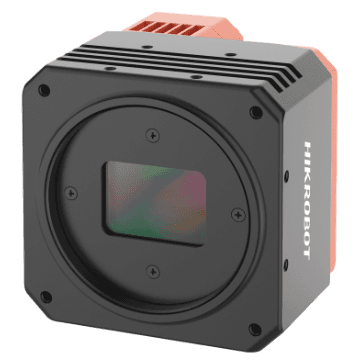

Area scan camera MV-CH650-90TM-M58S-NF V2

Manufacturer part number: MV-CH650-90TM-M58S-NF V2

Resolution: 65.4 MP
Pixels: 9344 × 7000
Max. frame rate: 17.4 fps
Color / mono: Mono
Shutter type: Global Shutter
Sensor format: 29.9 mm × 22.4 mm
Pixel size: 3.2 µm × 3.2 µm
Interface: 10 GigE
Lens mount: M58 × 0.75

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CH650-90TM-M58S-NF V2
Type	65MP Area Scan Camera, 10GigE, GMAX3265, Mono, M58-mount, with fan
Sensor type	CMOS, global shutter
Sensor model	Gpixel GMAX3265
Pixel size	3.2 µm × 3.2 µm
Sensor size	29.9 mm × 22.4 mm
Resolution	9344 × 7000
Max. frame rate	17.4 fps @ 9344 × 7000 Mono 8
Dynamic range	64.4 dB
SNR	40 dB
Gain	1.25× to 6×
Exposure time	18 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply	9 VDC to 24 VDC
Power consumption	Typ. 11.8 W @ 12 VDC
Lens mount	M58*0.75, flange back length 11.48 mm
Dimension	M58-mount with fan: 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
Weight	M58-mount with fan: approx. 550 g (1.2 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenlCam
Certification	CE, RoHS, KC
Input voltage	9 VDC to 24 VDC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

Datasheet Hikrobot Flächenkamera MV-CH650-90TM-M58S-NF V2
Datasheet · EN · 558 KB
Download datasheet
Technical drawing Hikrobot Flächenkamera MV-CH650-90TM-M58S-NF V2
Technical drawing · EN · 8 MB
Download

Software and SDK (12)

MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
Download

Description

Key Feature

- Resolution of 9344 × 7000, and pixel size of 3.2 µm × 3.2 µm.

- Adopts 10 GigE interface, compatible with GigE.

- Supports auto or manual adjustment of white balance, exposure time, and manual adjustment of gain, LUT, Gamma correction, etc.

- Compact design with mounting holes on panels for flexible mounting.

- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.

MV-CH650-90TM-M58S-NF V2
