Area scan camera MV-CH1030-90TC-M58S-NN
Manufacturer part number: MV-CH1030-90TC-M58S-NN · 306302479
- Resolution
- 103 MP
- Pixels
- 11264 × 9200
- Max. frame rate
- 11 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 46.6 mm
- Pixel size
- 3.2 µm × 3.2 µm
- Interface
- 10 GigE
- Lens mount
- M58 × 0.75
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH1030-90TC-M58S-NN |
|---|---|
| Type | 103MP Area Scan Camera, 10GigE, GMAX32103, Color |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX32103 |
| Pixel size | 3.2 µm × 3.2 µm |
| Sensor size | 46.6 mm |
| Resolution | 11264 × 9200 |
| Max. frame rate | 11 fps @ 11264 × 9200 Bayer GB 8 |
| Dynamic range | 64.86 dB |
| SNR | 39.88 dB |
| Gain | 1.4 × to 5.2 × |
| Exposure time | 20 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 13.3 W @ 12 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") |
| Weight | 738 g (1.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

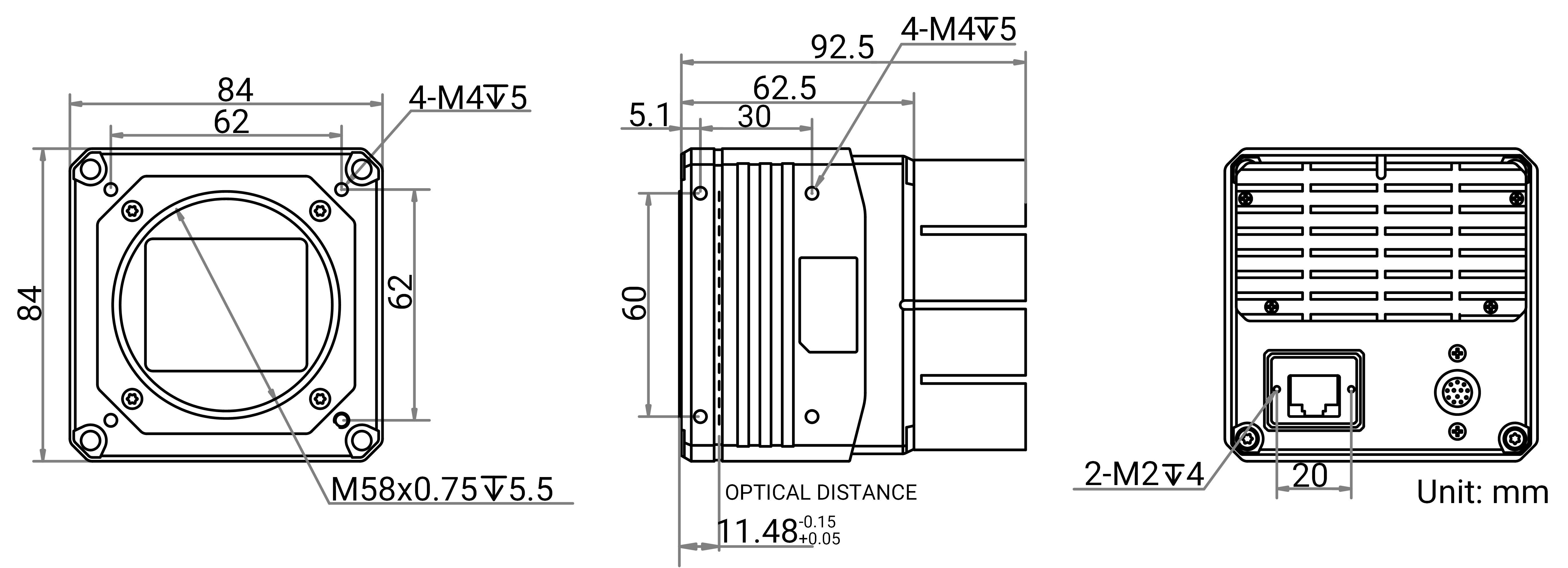

Dimensional drawing
