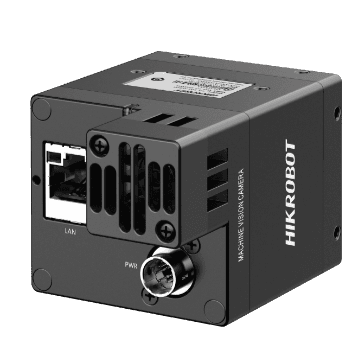

Area scan camera MV-CH050-90TM-C-NF
Manufacturer part number: MV-CH050-90TM-C-NF
- Resolution
- 5 MP
- Pixels
- 2448 × 2048
- Max. frame rate
- 163.4 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 2/3"
- Pixel size
- 3.4 µm × 3.4 µm
- Interface
- 10 GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH050-90TM-C-NF |
|---|---|
| Type | 5MP Area Scan Camera, GMAX3405, 10GigE, Mono, C-mount, with fan |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3405 |
| Pixel size | 3.4 µm × 3.4 µm |
| Sensor size | 2/3" |
| Resolution | 2448 × 2048 |
| Max. frame rate | 163.4 fps @ 2448 × 2048 Mono 8 |
| Dynamic range | 64.6 dB |
| SNR | 39.0 dB |
| Gain | 0 dB to 6.1 dB |
| Exposure time | 2 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Trigger Width |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 8.0 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 50 mm × 45 mm × 68.6 mm (2.0" × 1.8" × 2.7") |
| Weight | Approx. 212 g (0.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

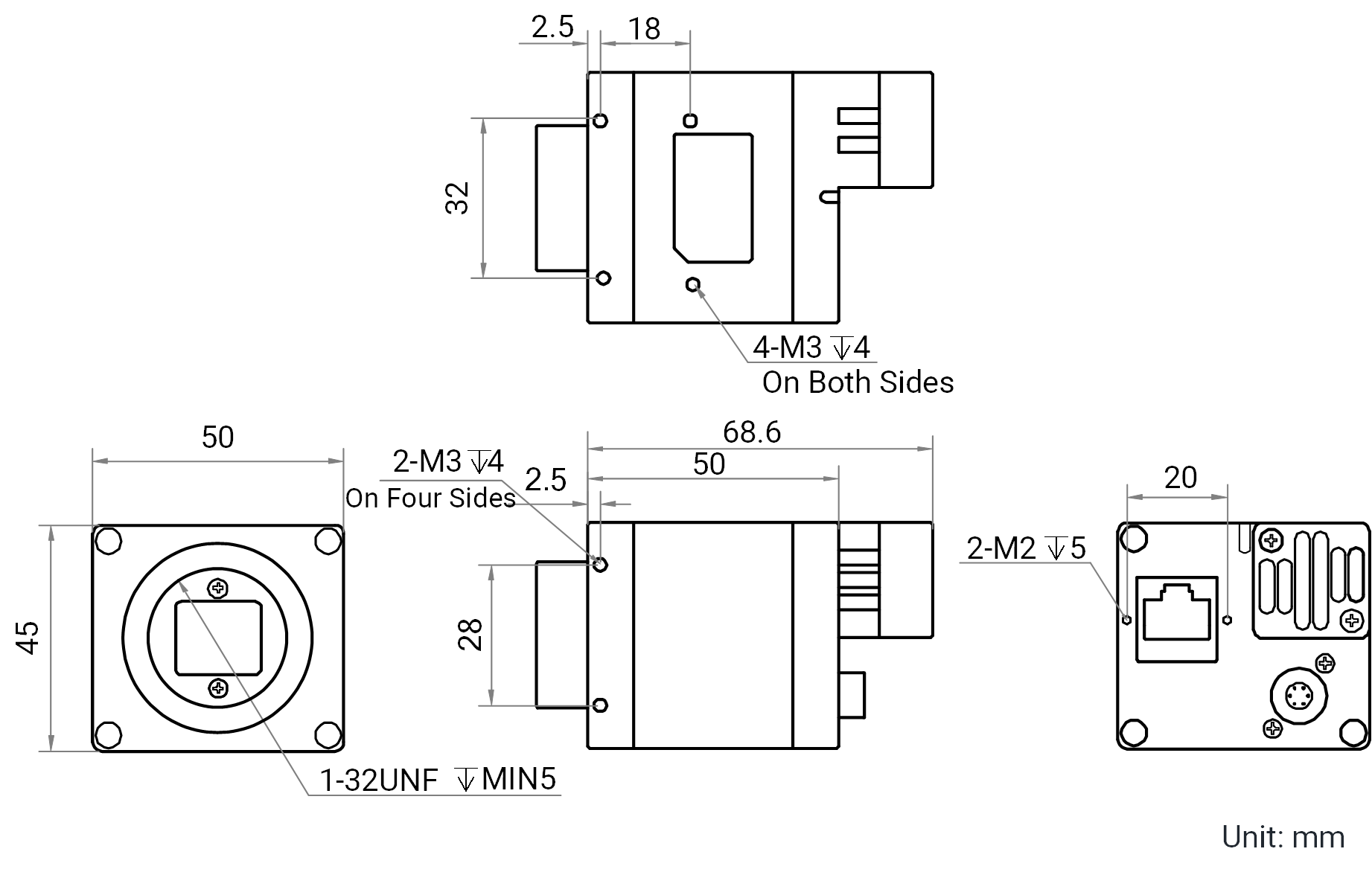

Dimensional drawing
