HIKROBOT
Area scan camera MV-CH050-90TC-C-NF
Manufacturer part number: MV-CH050-90TC-C-NF
- Resolution
- 5 MP
- Pixels
- 2448 × 2048
- Max. frame rate
- 163.4 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 2/3"
- Pixel size
- 3.4 µm × 3.4 µm
- Interface
- 10 GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH050-90TC-C-NF |
|---|---|
| Type | 5MP Area Scan Camera, GMAX3405, 10GigE, Color, C-mount, with fan |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3405 |
| Pixel size | 3.4 µm × 3.4 µm |
| Sensor size | 2/3" |
| Resolution | 2448 × 2048 |
| Max. frame rate | 163.4 fps @ 2448 × 2048 Bayer GB 8 |
| Dynamic range | 66.1 dB |
| SNR | 39.2 dB |
| Gain | 0 dB to 6.1 dB |
| Exposure time | 2 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Trigger Width |
| Mono/color | Color |
| Pixel format | Bayer GB 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 8.4 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 50 mm × 45 mm × 68.6 mm (2.0" × 1.8" × 2.7") |
| Weight | Approx. 212 g (0.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

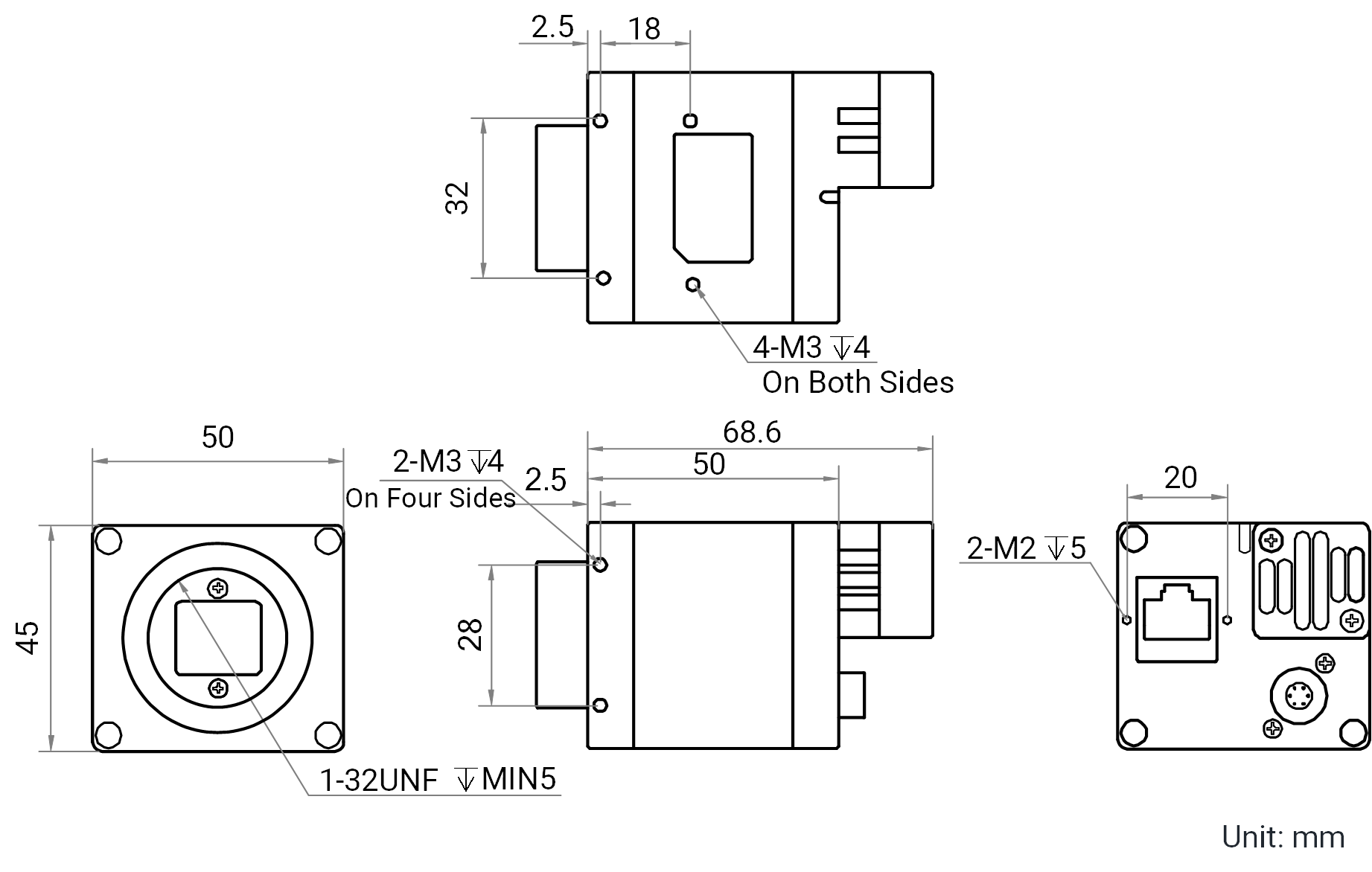

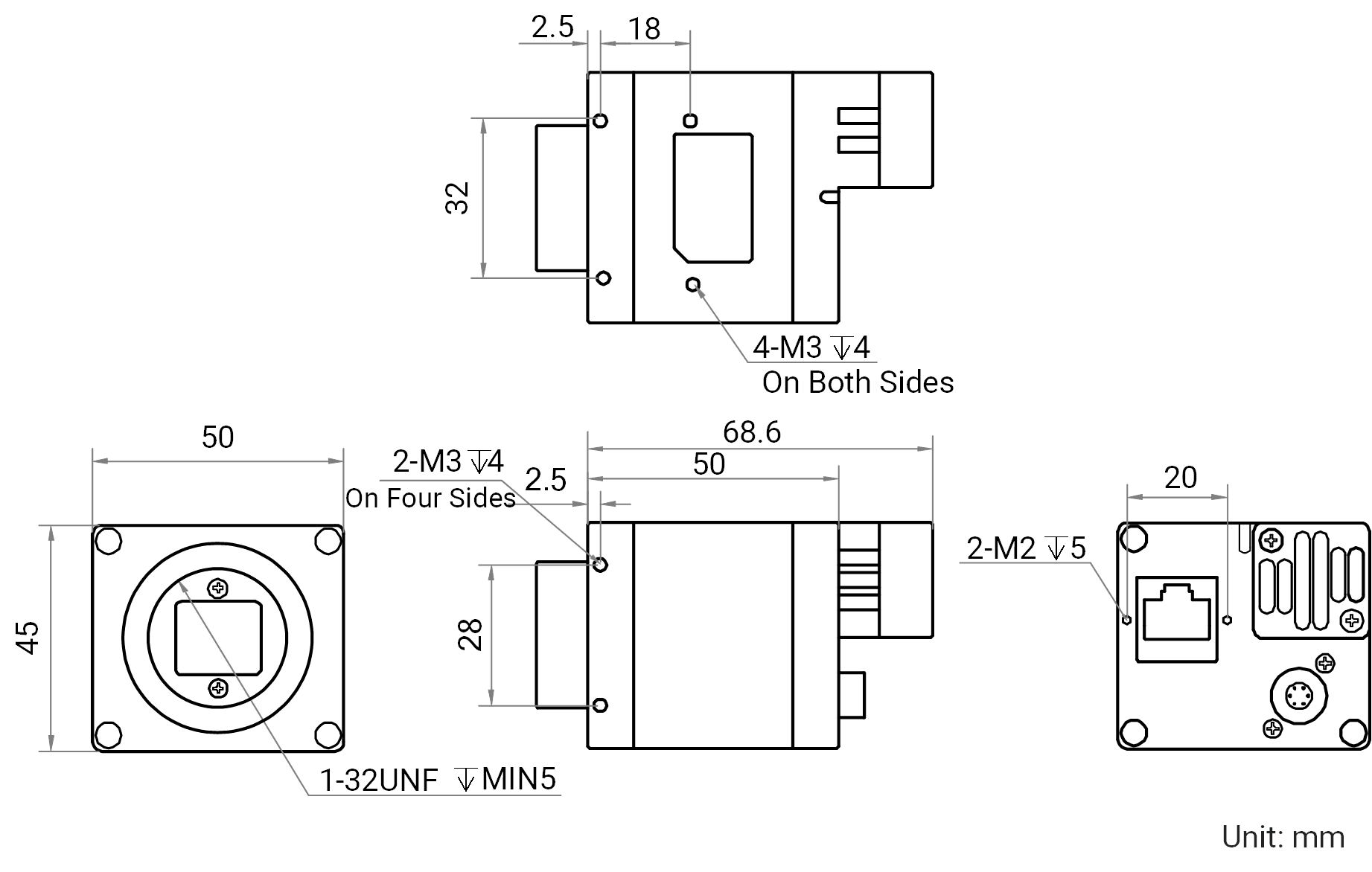

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH050-90TC-C-NF
Datasheet · EN · 554 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH050-90TC-C-NF
Technical drawing · EN · 3 MB
Software and SDK (13)
- Download
Software / Firmware V4.1.30 HikRobot Flächenkamera MV-CH050-90TC-C-NF
Software / firmware · EN · 2 MB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
Manual HikRobot Flächenkamera MV-CH050-90TC-C-NF
Manual · EN · 4 MB
Accessories
Data cables(31)
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
HIKROBOT
Hochflex 10GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
HIKROBOT
Hochflex 10GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
Standard 10GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Standard 10GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex 10GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 1 m
RJ45 (with locking stud) · 1 m
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 60 m
RJ45 (with locking stud) · 60 m
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
HIKROBOT
Standard 10GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Description
Key Feature - Resolution of 2448 × 2048, and pixel size of 3.4 µm × 3.4 µm. - Compatible with C-mount lens. - Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters. - Provides mounting holes on panels for flexible mounting. - Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
