Line light OPT-LSSX314-B
Manufacturer part number: OPT-LSSX314-B
Series: OPT-LSSX-Serie (Kreuz-Zeilenbeleuchtungen)
- Illuminated area
- 296 mm?
- Light color
- Blue
- Cooling
- Fan
- Drive / controller
- Controller empfohlen
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSSX314-B |
|---|---|
| Color | Blue |
| Current | 4.9 A |
| Power | 117.6 W |
| Stock Code | 11560100027 |
| Weight(KG) | 1.59 kg |
| Recommended Controller | OPT-DPA6024EB |
| Dimensions (L x W x H) | 314 × 50 × 94 mm |
| Product series | OPT-LSSX (gekreuzt) |
| Illumination arrangement | Crossed / two-sided cross lighting |
| Illuminated area | 296 mm |
| Cooling | Fan |
| Connection | ZQ GX16M-6A |
| Controller required | Recommended |
| Cable length | 1000 ± 20 mm |
| Min. bending radius of the cable | 40 mm |
| Housing length | 314 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

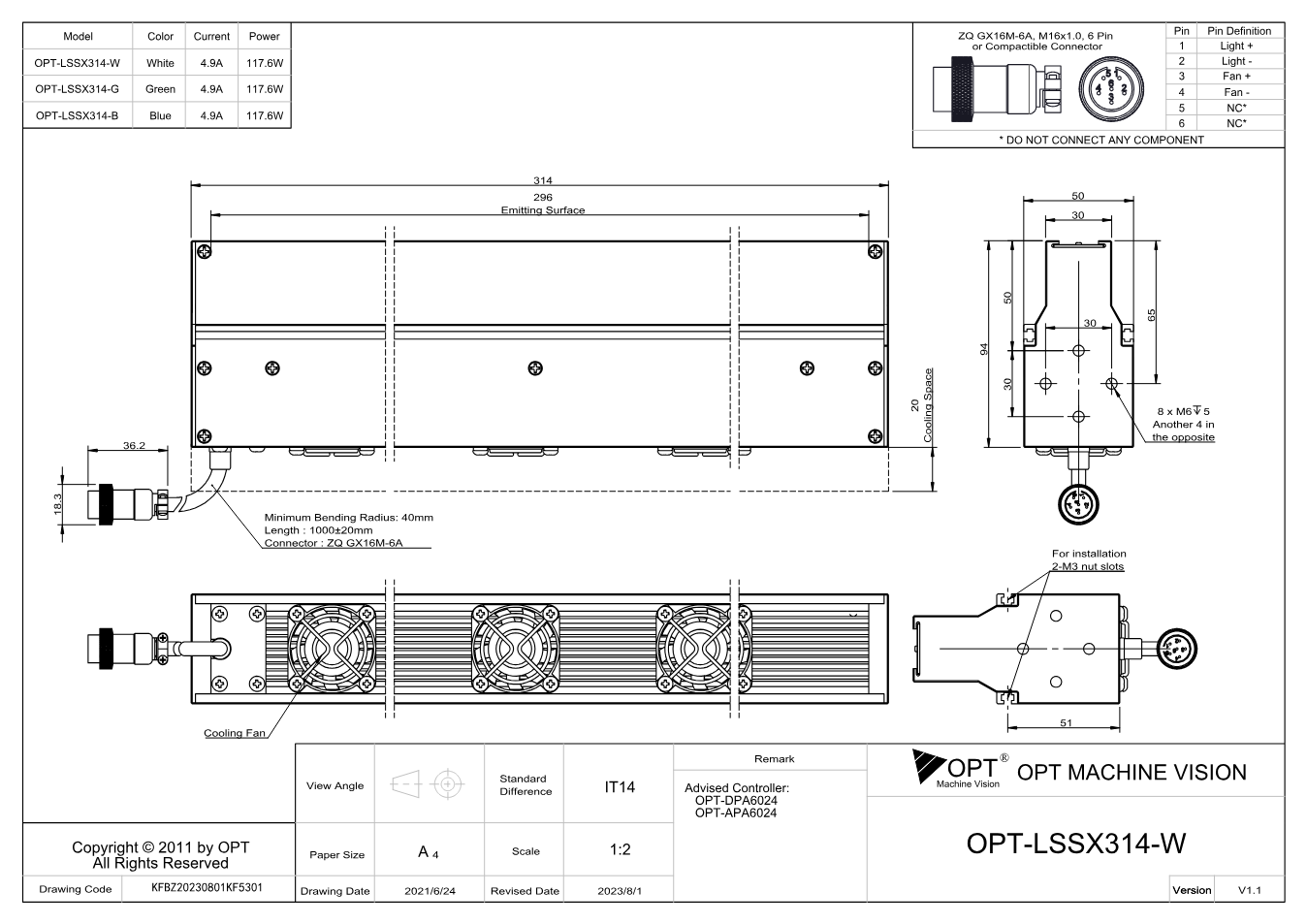

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-LSSX-Serie (PDF)
Datasheet · EN · 1819 KB
- Download
Maßzeichnung OPT-LSSX314 (V1.1) (PDF)
Technical drawing · EN · 189 KB
