Line light OPT-LSSC344-R

Manufacturer part number: OPT-LSSC344-R

Series: OPT-LSSC-Serie (koaxiale Zeilenbeleuchtungen sehr hoher Intensität)

Illuminated area: 326 mm?
Light color: Red
Optical layout: Koaxial?
Cooling: Fan
Drive / controller: Controller empfohlen

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-LSSC344-R
Color	Red
Current	4.2 A
Power	100.8 W
Stock Code	11480400133
Recommended Controller	OPT-DPA6024EB
Dimensions (L x W x H)	344 × 32 × 125.5 mm
Product series	OPT-LSSC (coaxial, high intensity)
Optical layout	Koaxial
Beam characteristic	Highly directional
Illuminated area	326 mm
Cooling	Fan
Connection	ZQ GX16M-6B
Controller required	Recommended
Housing length	344 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

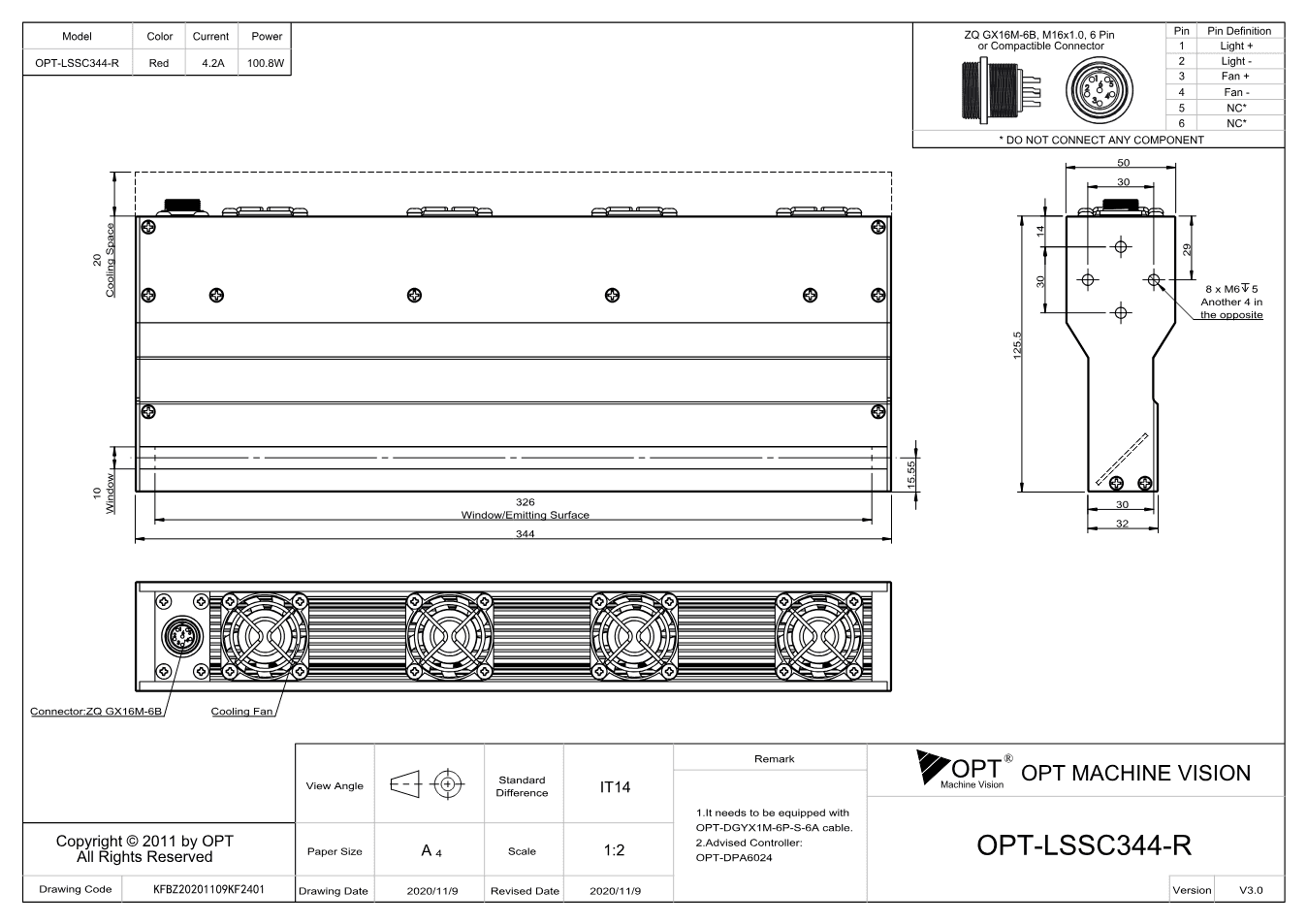

Dimensional drawing

Documents

OPT-LSSC-Serie (koaxiale Zeilenbeleuchtungen sehr hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 935 KB
Download datasheet
Maßzeichnung OPT-LSSC344 (V3.0) (PDF)
Technical drawing · EN · 149 KB
Download
Maßzeichnung OPT-LSSC344 (V3.0U) (PDF)
Technical drawing · EN · 149 KB
Download

Accessories

Beleuchtungskabel(4)

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m

ZQ GX16M-6A · 3 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m

ZQ GX16M-6A · 5 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m

ZQ GX16M-6A · 10 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m

ZQ GX16M-6A · 20 m

Light controllers(4)

OPT

Lichtcontroller OPT-DPA6024EB-2

OPT

Lichtcontroller OPT-DPA6024EB-4

OPT

Lichtcontroller OPT-DPA6024EB-8

OPT

Lichtcontroller OPT-DPA6024EB-16

Description

OPT-LSSC344-R is a coaxial line light from the OPT-LSSC series by OPT. Key figures according to the manufacturer: illumination range 326 mm at 344 mm housing length, light color red, power consumption 100.8 W, rated current 4.2 A, fan cooling, connector ZQ GX16M-6B. OPT recommends the controller OPT-DPA6024EB.

The OPT-LSSC series combines the line light with a coaxial beam splitter: the light hits the web perpendicularly and is reflected by smooth areas straight back into the line scan camera. On mirror-like strips, films and sheets this produces a uniformly bright image in which defects stand out dark.
