Line light OPT-LSSC188-B
Manufacturer part number: OPT-LSSC188-B
Series: OPT-LSSC-Serie (koaxiale Zeilenbeleuchtungen sehr hoher Intensität)
- Illuminated area
- 170 mm?
- Light color
- Blue
- Optical layout
- Koaxial?
- Cooling
- Fan
- Drive / controller
- Controller empfohlen
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSSC188-B |
|---|---|
| Color | Blue |
| Current | 2.8 A |
| Power | 67.2 W |
| Total Length A (mm) | 188 mm |
| Emitting Length B (mm) | 170 mm |
| Standard light source cable | OPT-DGYX1M-6P-S-6 A |
| Recommended controller | OPT-DPA6024EB |
| Stock Code | 11480400109 |
| Weight(KG) | 1.26 kg |
| Dimensions (L x W x H) | 188 × 32 × 125.5 mm |
| Product series | OPT-LSSC (coaxial, high intensity) |
| Optical layout | Koaxial |
| Beam characteristic | Highly directional |
| Cooling | Fan |
| Connection | ZQ GX16M-6B |
| Controller required | Recommended |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

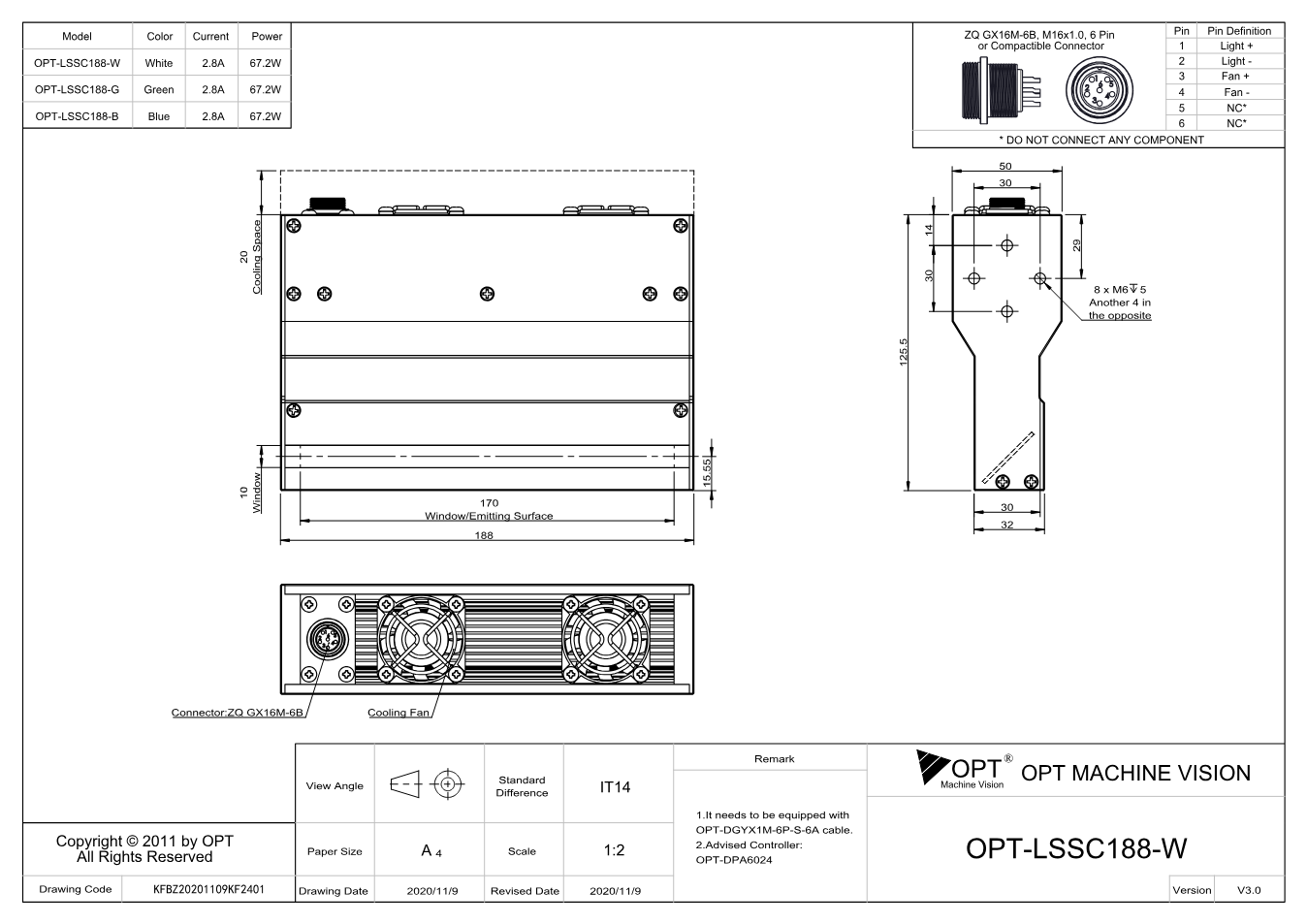

Dimensional drawing
Documents
- Download datasheet
OPT-LSSC-Serie (koaxiale Zeilenbeleuchtungen sehr hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 935 KB
- Download
Maßzeichnung OPT-LSSC188 (V3.0) (PDF)
Technical drawing · EN · 134 KB
- Download
Maßzeichnung OPT-LSSC188 (V3.0U) (PDF)
Technical drawing · EN · 135 KB
Accessories
Beleuchtungskabel(5)
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
Description
OPT-LSSC188-B is a coaxial line light from the OPT-LSSC series by OPT. Key figures according to the manufacturer: illumination range 170 mm at 188 mm housing length, light color blue, power consumption 67.2 W, rated current 2.8 A, fan cooling, connector ZQ GX16M-6B, weight 1.26 kg. OPT recommends the controller OPT-DPA6024EB.
The OPT-LSSC series combines the line light with a coaxial beam splitter: the light hits the web perpendicularly and is reflected by smooth areas straight back into the line scan camera. On mirror-like strips, films and sheets this produces a uniformly bright image in which defects stand out dark.
