Line light OPT-LSSC146-B
Manufacturer part number: OPT-LSSC146-B
Series: OPT-LSSC-Serie (koaxiale Zeilenbeleuchtungen sehr hoher Intensität)
- Illuminated area
- 128 mm?
- Light color
- Blue
- Optical layout
- Koaxial?
- Cooling
- Fan
- Drive / controller
- Controller empfohlen
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSSC146-B |
|---|---|
| Color | Blue |
| Current | 2.1 A |
| Power | 50.4 W |
| Total Length A (mm) | 146 mm |
| Emitting Length B (mm) | 128 mm |
| Standard light source cable | OPT-DGYX1M-6P-S-6 A |
| Recommended controller | OPT-DPA6024E(C) |
| Stock Code | 11480400101 |
| Weight(KG) | 1.0 kg |
| Dimensions (L x W x H) | 146 × 32 × 125.5 mm |
| Product series | OPT-LSSC (coaxial, high intensity) |
| Optical layout | Koaxial |
| Beam characteristic | Highly directional |
| Cooling | Fan |
| Connection | ZQ GX16M-6B |
| Controller required | Recommended |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

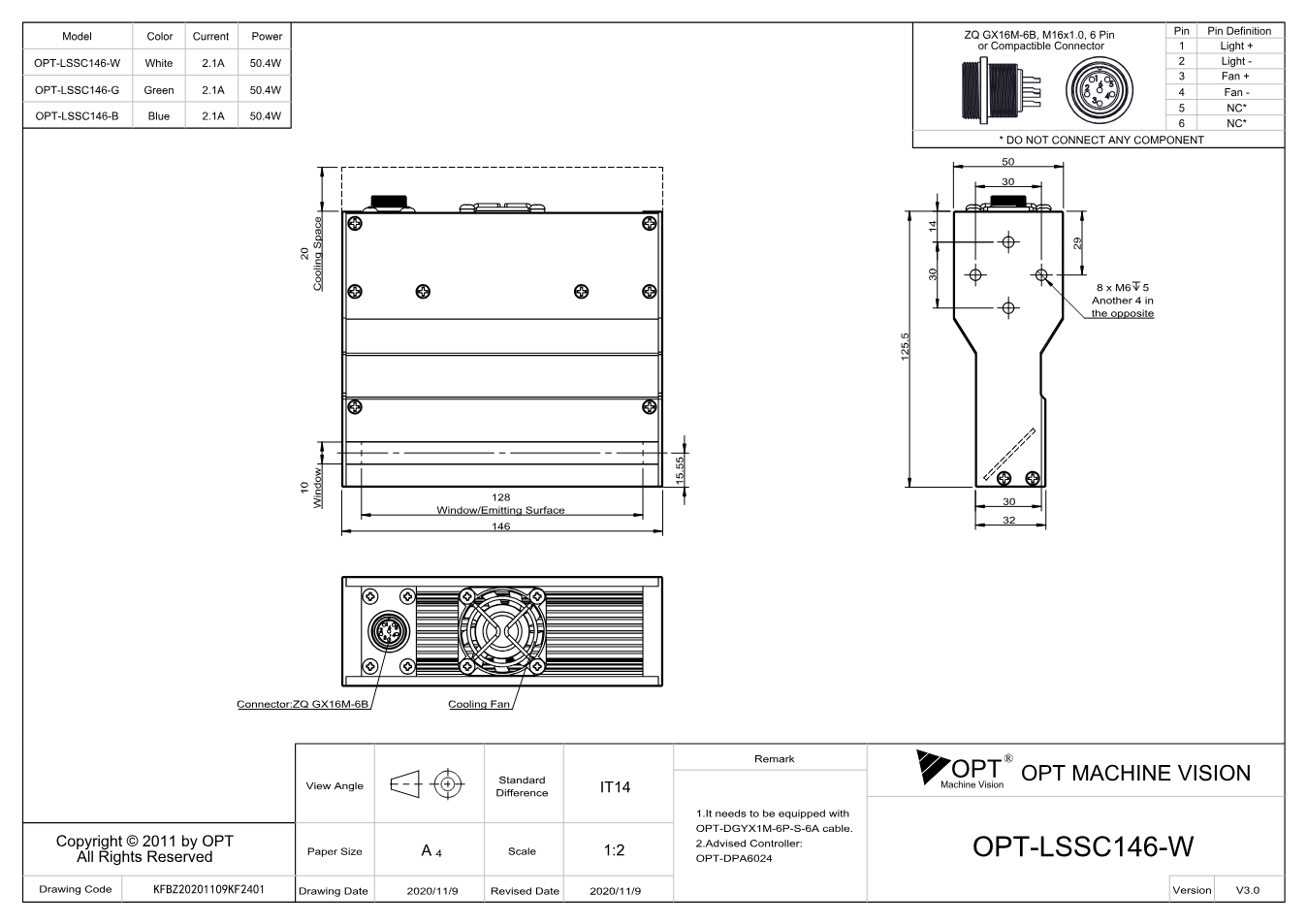

Dimensional drawing
Documents
- Download datasheet
OPT-LSSC-Serie (koaxiale Zeilenbeleuchtungen sehr hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 935 KB
- Download
Maßzeichnung OPT-LSSC146 (V3.0) (PDF)
Technical drawing · EN · 126 KB
- Download
Maßzeichnung OPT-LSSC146 (V3.0U) (PDF)
Technical drawing · EN · 126 KB
Accessories
Beleuchtungskabel(5)
OPT
Extension cable 6-pin, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Extension cable 6-pin, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Extension cable 6-pin, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Extension cable 6-pin, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Light cable 6-pin, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
More variants in this series
Description
OPT-LSSC146-B is a coaxial line light from the OPT-LSSC series by OPT. Key figures according to the manufacturer: illumination range 128 mm at 146 mm housing length, light color blue, power consumption 50.4 W, rated current 2.1 A, fan cooling, connector ZQ GX16M-6B, weight 1.0 kg. OPT recommends the controller OPT-DPA6024E(C).
The OPT-LSSC series combines the line light with a coaxial beam splitter: the light hits the web perpendicularly and is reflected by smooth areas straight back into the line scan camera. On mirror-like strips, films and sheets this produces a uniformly bright image in which defects stand out dark.
