Line light OPT-LSS830-R

Manufacturer part number: OPT-LSS830-R

Series: OPT-LSS-Serie (Zeilenbeleuchtungen sehr hoher Intensität)

Illuminated area: 812 mm?
Light color: Red
Cooling: Fan

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-LSS830-R
Color	red
Current	10.5 A
Power	252 W
Dimensions (L x W x H)	830 × 50 × 94 mm
Product series	OPT-LSS (high intensity)
Beam characteristic	Highly directional
Illuminated area	812 mm
Cooling	Fan
Connection	WS20K6Z
Housing length	830 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

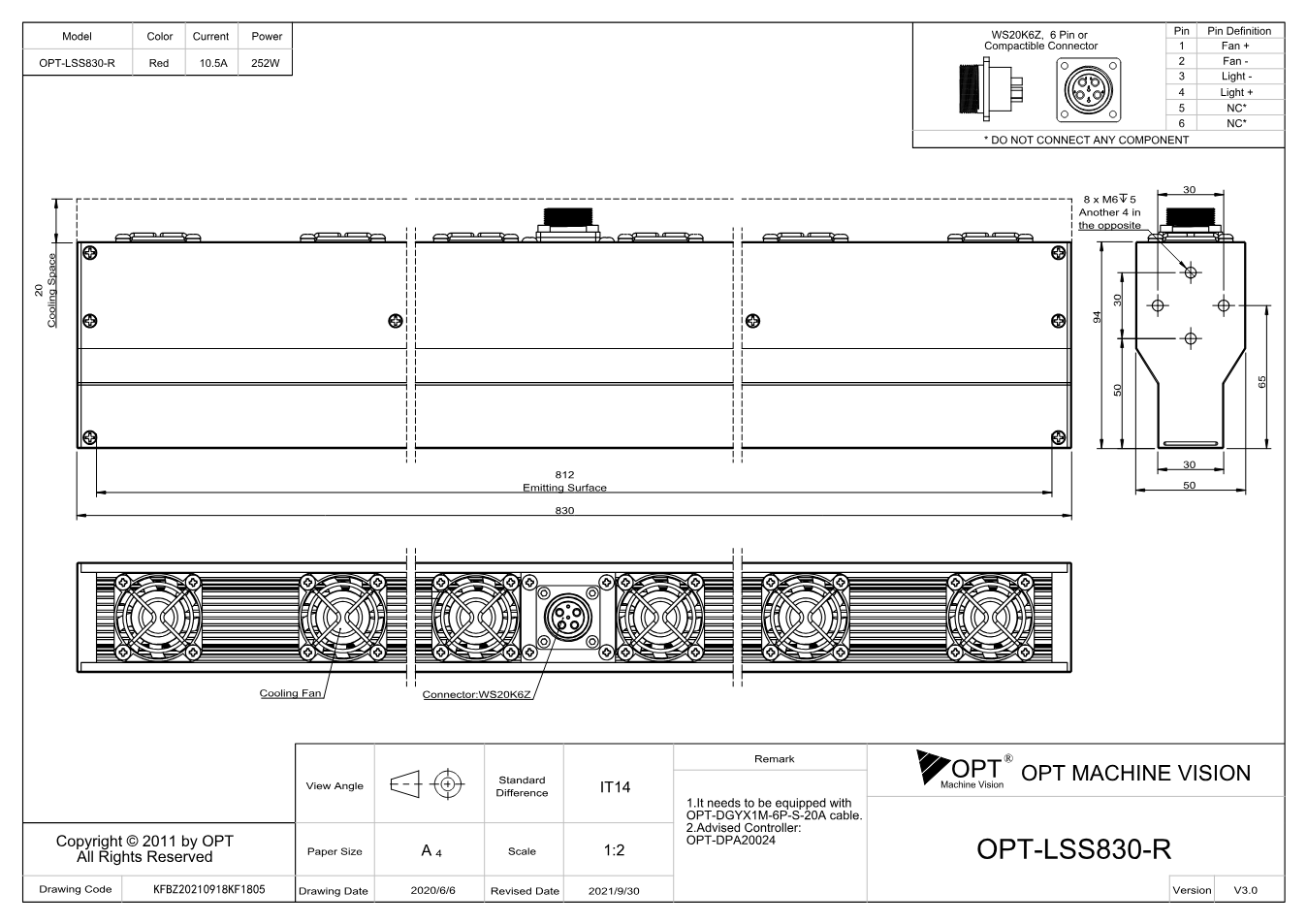

Dimensional drawing

Documents

OPT-LSS-Serie (Zeilenbeleuchtungen sehr hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 3010 KB
Download datasheet
Maßzeichnung OPT-LSS830 (V3.0) (PDF)
Technical drawing · EN · 189 KB
Download
Maßzeichnung OPT-LSS830 (V3.0U) (PDF)
Technical drawing · EN · 164 KB
Download

Accessories

Beleuchtungskabel(4)

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX3M-6P-S-20A, 3 m

WS20J6TQ · 3 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX5M-6P-S-20A, 5 m

WS20J6TQ · 5 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX10M-6P-S-20A, 10 m

WS20J6TQ · 10 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX20M-6P-S-20A, 20 m

WS20J6TQ · 20 m

Description

OPT-LSS830-R is a line light from the OPT-LSS series by OPT. Key figures according to the manufacturer: illumination range 812 mm at 830 mm housing length, light color red, power consumption 252 W, rated current 10.5 A, fan cooling, connector WS20K6Z.

The OPT-LSS series is OPT's high-power line light for line scan cameras. For the series the manufacturer states up to 2000 klx at 50 mm working distance (measured on four models, guide values according to the manufacturer). This is necessary because a line scan camera exposes each image line for only fractions of a second. The small divergence angle keeps the light concentrated even over larger distances.
