OPT

Line light OPT-LSS1196-B

Manufacturer part number: OPT-LSS1196-B

Series: OPT-LSS-Serie (Zeilenbeleuchtungen sehr hoher Intensität)

Illuminated area: 1178 mm?
Light color: Blue
Cooling: Fan

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-LSS1196-B
Color	blue
Current	19.6 A
Power	470.4 W
Dimensions (L x W x H)	1196 × 50 × 94 mm
Product series	OPT-LSS (high intensity)
Beam characteristic	Highly directional
Illuminated area	1178 mm
Cooling	Fan
Connection	WS20K6Z
Housing length	1196 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

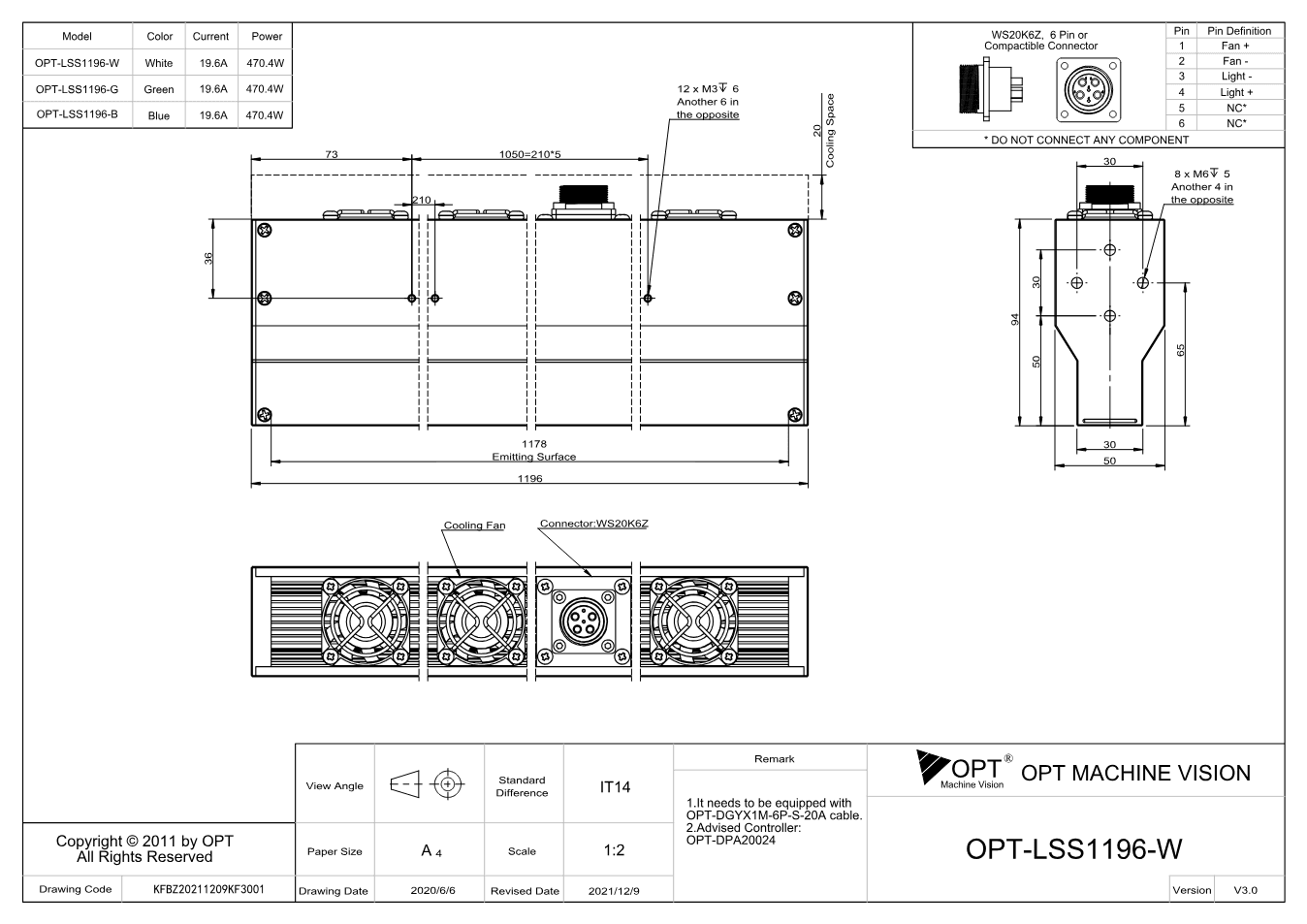

Dimensional drawing

Documents

OPT-LSS-Serie (Zeilenbeleuchtungen sehr hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 3 MB
Download datasheet
Maßzeichnung OPT-LSS1196 (V3.0) (PDF)
Technical drawing · EN · 135 KB
Download
Maßzeichnung OPT-LSS1196 (V3.0U) (PDF)
Technical drawing · EN · 132 KB
Download

Accessories

Beleuchtungskabel(4)

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX3M-6P-S-20A, 3 m

WS20J6TQ · 3 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX5M-6P-S-20A, 5 m

WS20J6TQ · 5 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX10M-6P-S-20A, 10 m

WS20J6TQ · 10 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX20M-6P-S-20A, 20 m

WS20J6TQ · 20 m

Description

OPT-LSS1196-B is a line light from the OPT-LSS series by OPT. Key figures according to the manufacturer: illumination range 1178 mm at 1196 mm housing length, light color blue, power consumption 470.4 W, rated current 19.6 A, fan cooling, connector WS20K6Z.
