Line light OPT-LSNS524-G
Manufacturer part number: OPT-LSNS524-G
Series: OPT-LSNS-Serie (passiv gekühlte Zeilenbeleuchtungen)
- Illuminated area
- 506 mm?
- Light color
- Green
- Cooling
- Passive / natural convection
- Drive / controller
- Controller empfohlen
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSNS524-G |
|---|---|
| Color | Green |
| Current | 2.2 A |
| Power | 52.8 W |
| Stock Code | 11540200178 |
| Weight(KG) | 1.38 kg |
| Recommended Controller | OPT-DPA6024E(C) |
| Dimensions (L x W x H) | 524 × 30 × 60 mm |
| Product series | OPT-LSNS (passively cooled) |
| Illuminated area | 506 mm |
| Cooling | Passive / natural convection |
| Connection | ZQ GX16M-6B |
| Controller required | Recommended |
| Housing length | 524 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

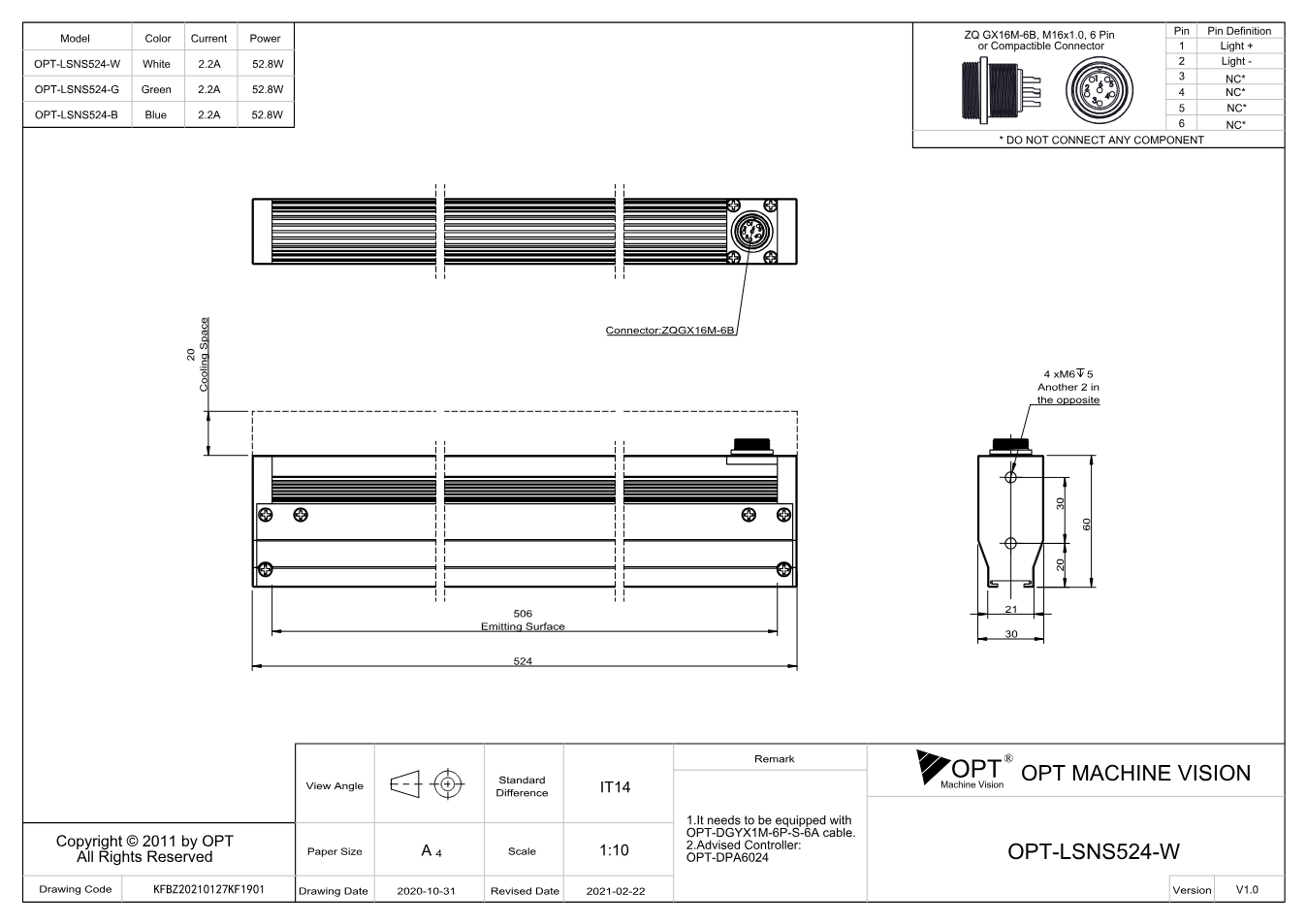

Dimensional drawing
Documents
- Download datasheet
OPT-LSNS-Serie (passiv gekühlte Zeilenbeleuchtungen): Serienbroschüre OPT (EN)
Datasheet · EN · 165 KB
- Download datasheet
OPT-LSNS-Serie (passiv gekühlte Zeilenbeleuchtungen): Serienbroschüre OPT (EN)
Datasheet · EN · 4480 KB
- Download
Maßzeichnung OPT-LSNS524 (V1.0) (PDF)
Technical drawing · EN · 109 KB
- Download
Maßzeichnung OPT-LSNS524 (V1.0U) (PDF)
Technical drawing · EN · 109 KB
Accessories
Beleuchtungskabel(4)
Light controllers(1)
Description
OPT-LSNS524-G is a line light from the OPT-LSNS series by OPT. Key figures according to the manufacturer: illumination range 506 mm at 524 mm housing length, light color green, power consumption 52.8 W, rated current 2.2 A, passive cooling, connector ZQ GX16M-6B, weight 1.38 kg. OPT recommends the controller OPT-DPA6024E(C).
The OPT-LSNS and OPT-LSNL series are line lights with passive cooling. The manufacturer calls the fanless design quiet and stable and recommends it for environments with special requirements regarding noise, vibration and air flow.
