OPT
Ring light OPT-RI6215-RGB
Manufacturer part number: OPT-RI6215-RGB
Series: OPT-RI-Serie (Ringbeleuchtungen)
- Lens opening / inner diameter
- 25.2 mm
- Outer diameter
- 62 mm
- Light color
- Green, Blue
- Ring design / angle of incidence
- Full ring
- Operating mode / controller required
- Controller recommended
- Connection
- JST SMR-0.2V-B
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-RI6215-RGB |
|---|---|
| Color | Green, blue |
| Voltage | 24 V | 24 V |
| Power | 1.1 W | 1.1 W |
| Emitting angle | 15° |
| Dimensions (dia. x H) | Ø 62 × 25.5 mm |
| Inner diameter | Ø 25.2 mm |
| Ring design | Full ring |
| Outer diameter | 62 mm |
| Controller required | Recommended |
| Connection | JST SMR-0.2V-B |
| Cable length | 800 ± 20 mm |
| Angle reference | Manufacturer definition |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

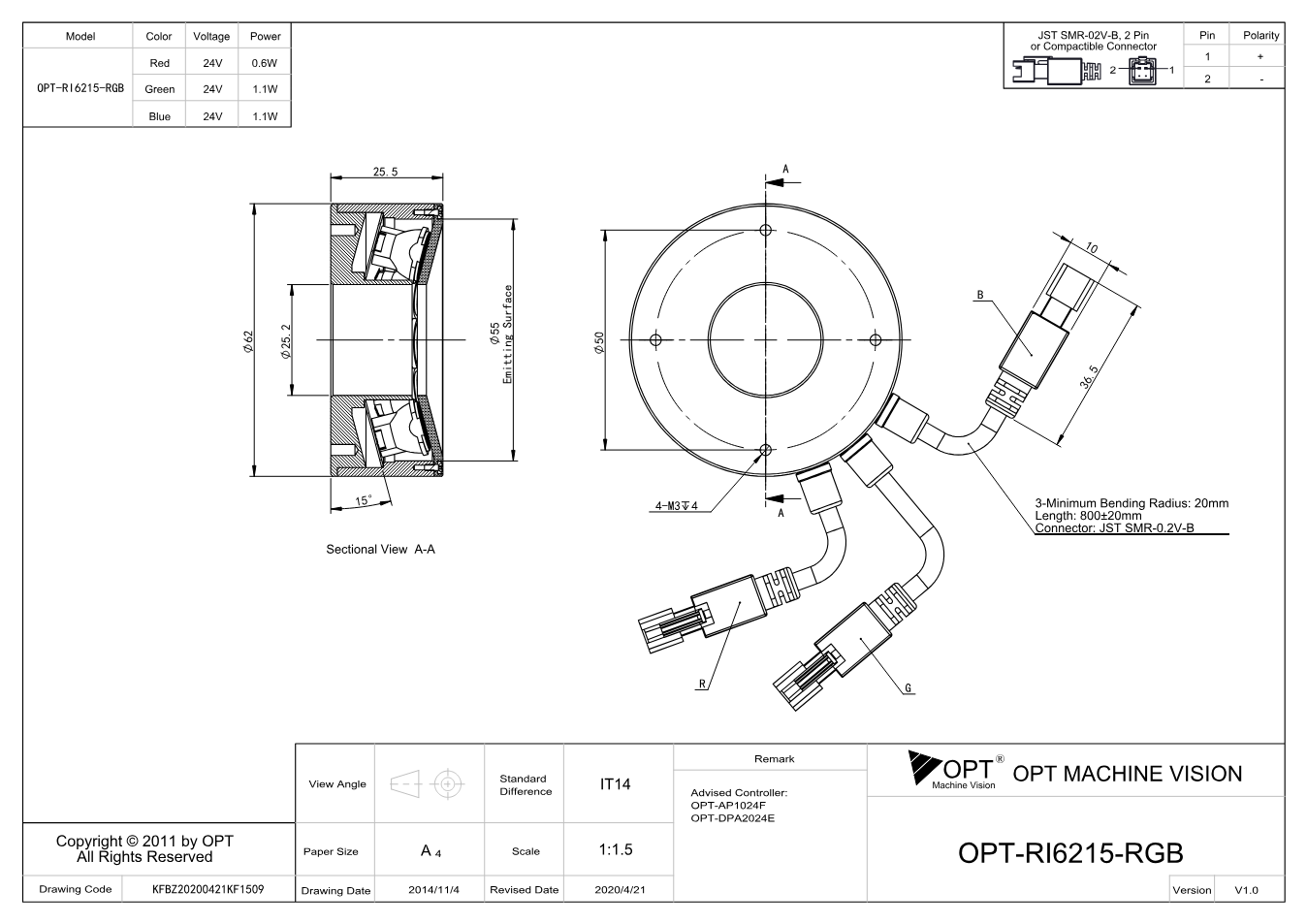

Dimensional drawing
Documents
- Download datasheet
OPT-RI-Serie (Ringbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 5 MB
- Download
Maßzeichnung OPT-RI6215 (V1.0) (PDF)
Technical drawing · EN · 195 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-RI6215-RGB denotes, within the OPT-RI series (ring lights) , the product type „ring light“. Key figures are light color green / blue, input voltage 24 V | 24 V, power 1.1 W | 1.1 W.
Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.
Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
