Ring light OPT-MSRI12045-G
Manufacturer part number: OPT-MSRI12045-G
Series: OPT-MS-Serie (Zonenbeleuchtungen)
- Lens opening / inner diameter
- 68 mm
- Outer diameter
- 120 mm
- Light color
- Green
- Ring design / angle of incidence
- Zone ring / multi-zone ring
- Operating mode / controller required
- Controller recommended
- Connection
- JST SMR-02V-B
- Supply voltage / power consumption
- 24 V, 12.2 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-MSRI12045-G |
|---|---|
| Color | green |
| Voltage | 24 V |
| Power | 12.2 W |
| Outer diameter | Ø 120 mm |
| Emitting angle | 45° |
| Dimensions (dia. x H) | Ø 120 × 26 mm |
| Inner diameter | Ø 68 mm |
| Ring design | Zone ring / multi-zone ring |
| Controller required | Recommended |
| Recommended controller | OPT-DPA2024E / OPT-AP1024F |
| Connection | JST SMR-02V-B |
| Cable length | 600 ± 20 mm |
| Number of zones / segments | 4 |
| Zones switchable individually | Yes |
| Angle reference | Manufacturer definition |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

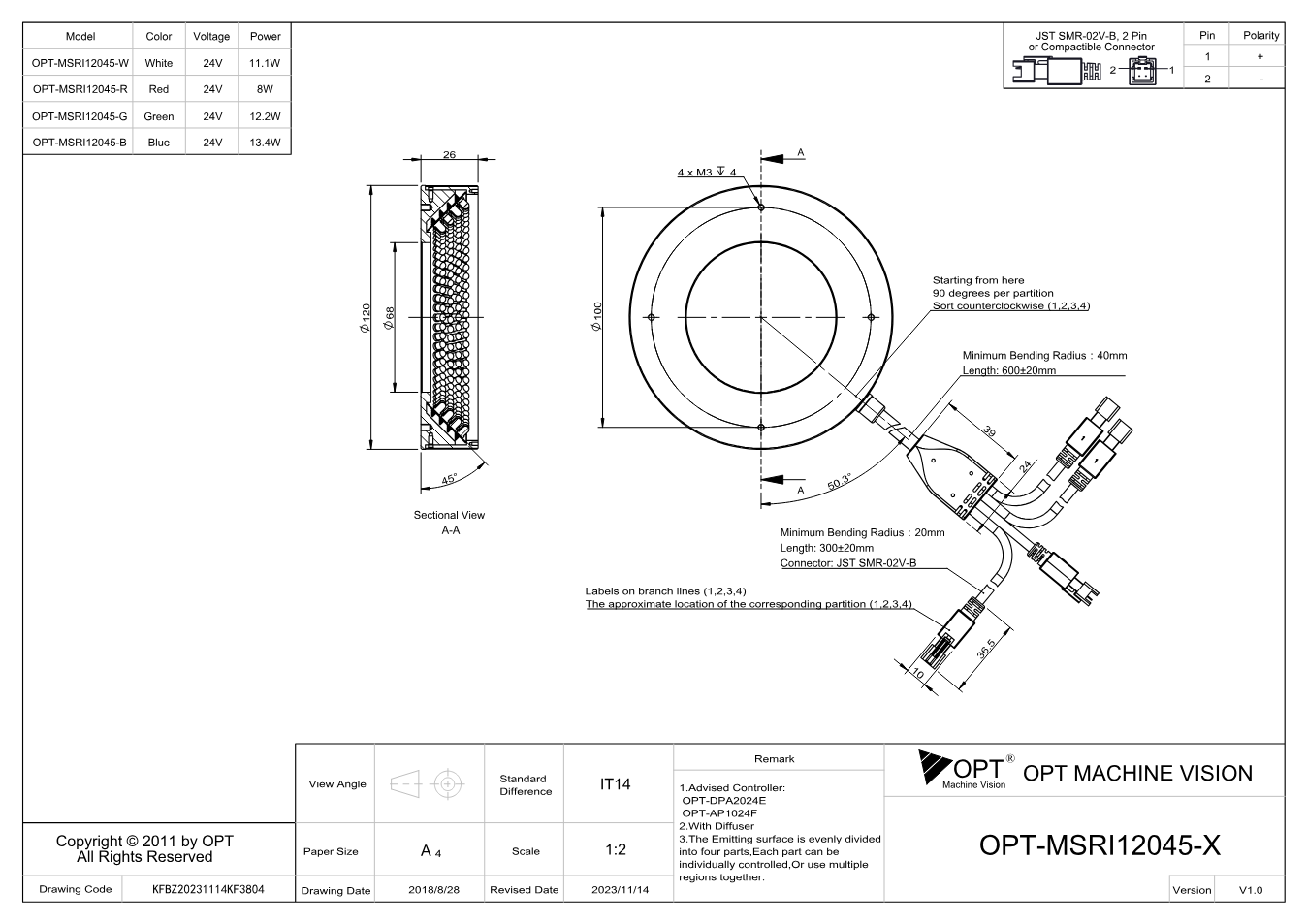

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-MSRI-Serie (PDF)
Datasheet · EN · 3074 KB
- Download
Maßzeichnung OPT-MSRI12045 (V1.0) (PDF)
Technical drawing · EN · 236 KB
- Download
Maßzeichnung OPT-MSRI12045 (V1.0U) (PDF)
Technical drawing · EN · 209 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-MSRI12045-G denotes, within the OPT-MS series (zone lights) , the product type „zone light“. Key figures are light color green, input voltage 24 V, power 12.2 W.
Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.
Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
