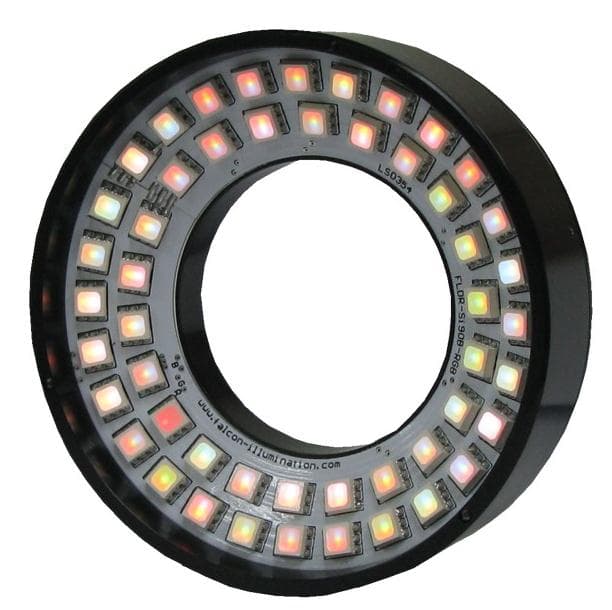

Gewinkelte Ringbeleuchtung FLDR-Si90B-RGB
Manufacturer part number: FLDR-Si90B-RGB
Series: FLDR-90B
- Lens opening / inner diameter
- Ø 50 mm
- Outer diameter
- Ø 93.5 mm
- Light color
- RGB
- Ring design / angle of incidence
- Full ring, Angled front light
- Operating mode / controller required
- Continuous and strobe, Controller recommended
- Recommended working distance
- 20 – 100 mm
- Connection
- JST SMR-03V
- Supply voltage / power consumption
- 24 V, 9.12 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | FLDR-Si90B-RGB |
|---|---|
| Type | Ring light |
| Version | Angled |
| Color | RGB |
| Size | Ø 93.5 × 24.60 mm |
| Illumination Surface | Ø 87 mm |
| Illumination Inside Dimension | 50 mm |
| FOV | Ø 50 mm |
| Working Distance | 20 – 100 mm |
| Operating Voltage | 24 V |
| Power Consumption | 9.12 W |
| Current | 0.38 A |
| Ripple Voltage | ≤ Vs ± 5 % |
| Reverse Battery Protection | Yes |
| LED Package | Each SMD-LED in RGB |
| LED Life Span Continous | 20000 hours |
| LED Life Span Strobe | approx. > 50,000 hours (to 50 % remaining intensity at 25 °C ambient temperature) |
| Eye safety | Exempt group |
| Housing | Aluminum |
| Weight | 205 g |
| Connector | JST SMR-03V |
| Connector Pin | Pin 1: +; Pin 2: not connected; Pin 3: - |
| Cable | 450 mm |
| Operating Condition | 0–35 °C, 20–85 % relative humidity |
| Operating Temperature | after 60 minutes approx. 61 °C |
| Cooling Method | Mounting on a machine part for heat dissipation |
| Ring design | Full ring |
| Operating mode | Continuous and strobe |
| Controller required | Recommended |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Dimensional drawing
Documents
- Download datasheet
Datasheet FLDR-Si90B-RGB
Datasheet · EN · 294 KB
Description
FLDR-Si90B-RGB belongs to the FLDR-90B series by Falcon Illumination. The light emits RGB light. The manufacturer states a working distance of 20 - 100 mm. The emitting surface measures Ø 87 mm. The outer dimensions are Ø 93.5 × 24.60 mm.
In an angled ring light the LEDs are tilted inward. The light reaches the part at a shallower angle and converges at a defined distance below the light. Raised features, embossing and scratches therefore cast short shadows and stand out from the background without the surface as a whole becoming too bright.
The light runs on 24 V and draws 9.12 W, the connection is JST SMR-03V with 450 mm cable and the housing is aluminum.
The angle sets the working distance at which the illumination is most even. Working noticeably closer or farther away moves the bright ring away from the center of the image. The data sheet and the dimensional drawing are in the download area. We are glad to advise you on matching light, lens and light controller. Just ask for price and delivery time.
