Falcon

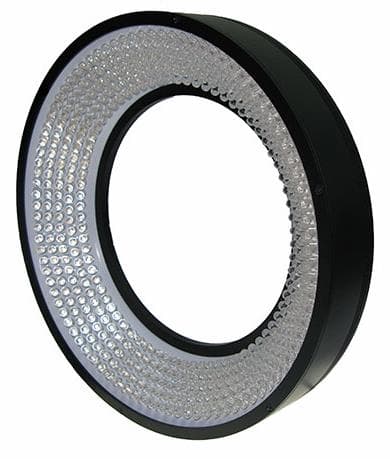

Gewinkelte Ringbeleuchtung FLDR-i230B-IR24-5
Manufacturer part number: FLDR-i230B-IR24-5
Series: FLDR-230B
- Lens opening / inner diameter
- Ø 145 mm
- Outer diameter
- Ø 235 mm
- Light color
- Infrared, 875 nm
- Ring design / angle of incidence
- Full ring, Angled front light
- Operating mode / controller required
- Strobe, Controller recommended
- Recommended working distance
- 30 – 200 mm
- Connection
- JST SMR-03V
- Supply voltage / power consumption
- 24 V, 31.2 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | FLDR-i230B-IR24-5 |
|---|---|
| Type | Ring light |
| Version | Angled |
| Color | Infrared |
| Wavelength | 875 nm |
| Size | Ø 235 × 40 mm |
| Illumination Surface | 220 mm |
| Illumination Inside Dimension | 145 mm |
| FOV | Ø 145 mm |
| Working Distance | 30 – 200 mm |
| Operating Voltage | 24 V |
| Power Consumption | 31.20 W |
| Current | 1.3 A |
| Ripple Voltage | ≤ Vs ± 5 % |
| Reverse Battery Protection | Yes |
| Total Number of LED | 416 |
| LED Package | T1 3/4 5 mm |
| LED Life Span Continous | 20000 hours |
| LED Life Span Strobe | approx. > 50,000 hours (to 50 % remaining intensity at 25 °C ambient temperature) |
| Eye safety | Risk group 1 (low risk) |
| Housing | Aluminum |
| Weight | approx. 1710 g |
| Connector | JST SMR-03V |
| Connector Pin | Pin 1: +; Pin 2: not connected; Pin 3: - |
| Cable | 600 mm |
| Operating Condition | 0–35 °C, 20–85 % relative humidity |
| Operating Temperature | 50 °C |
| Cooling Method | Mounting on a large machine part for heat dissipation |
| Ring design | Full ring |
| Operating mode | Strobe |
| Controller required | Recommended |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Dimensional drawing
Documents
- Download datasheet
Datasheet FLDR-i230B-IR24-5
Datasheet · EN · 400 KB
Description
FLDR-i230B-IR24-5 belongs to the FLDR-230B series by Falcon Illumination. The light emits infrared light (875 nm). The manufacturer states a working distance of 30 - 200 mm. The emitting surface measures 220 mm. The outer dimensions are Ø 235 × 40 mm.
In an angled ring light the LEDs are tilted inward. The light reaches the part at a shallower angle and converges at a defined distance below the light. Raised features, embossing and scratches therefore cast short shadows and stand out from the background without the surface as a whole becoming too bright.
The light runs on 24 V and draws 31.20 W, 416 LEDs of package type T1 3/4 5 mm are fitted, the connection is JST SMR-03V with 600 mm cable and the housing is aluminum.
The angle sets the working distance at which the illumination is most even. Working noticeably closer or farther away moves the bright ring away from the center of the image. The data sheet and the dimensional drawing are in the download area. We are glad to advise you on matching light, lens and light controller. Just ask for price and delivery time.
