Area light OPT-FP180160-B
Manufacturer part number: OPT-FP180160-B
Series: OPT-FP-Serie (kollimierte Hintergrundbeleuchtungen)
- Lighting type
- Backlight
- Emitting area
- 150 × 150 mm
- Light color
- Blue
- Beam characteristic
- Collimated / highly directional
- Drive / supply
- 24 V
- Connection
- JST SMR-02V-B
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-FP180160-B |
|---|---|
| Color | Blue |
| Voltage | 24 V |
| Power | 21.6 W |
| Recommended controller | OPT-DPA2024E |
| Weight(KG) | 1 kg |
| Leuchtfläche | 150 × 150 mm |
| Dimensions (L x W x H) | 180 × 160 × 80 mm |
| Lighting type | Backlight |
| Beam characteristic | Collimated / highly directional |
| Controller required | Recommended |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
| Min. bending radius of the cable | 20 mm |
| Housing length | 180 mm |
| Housing width | 160 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

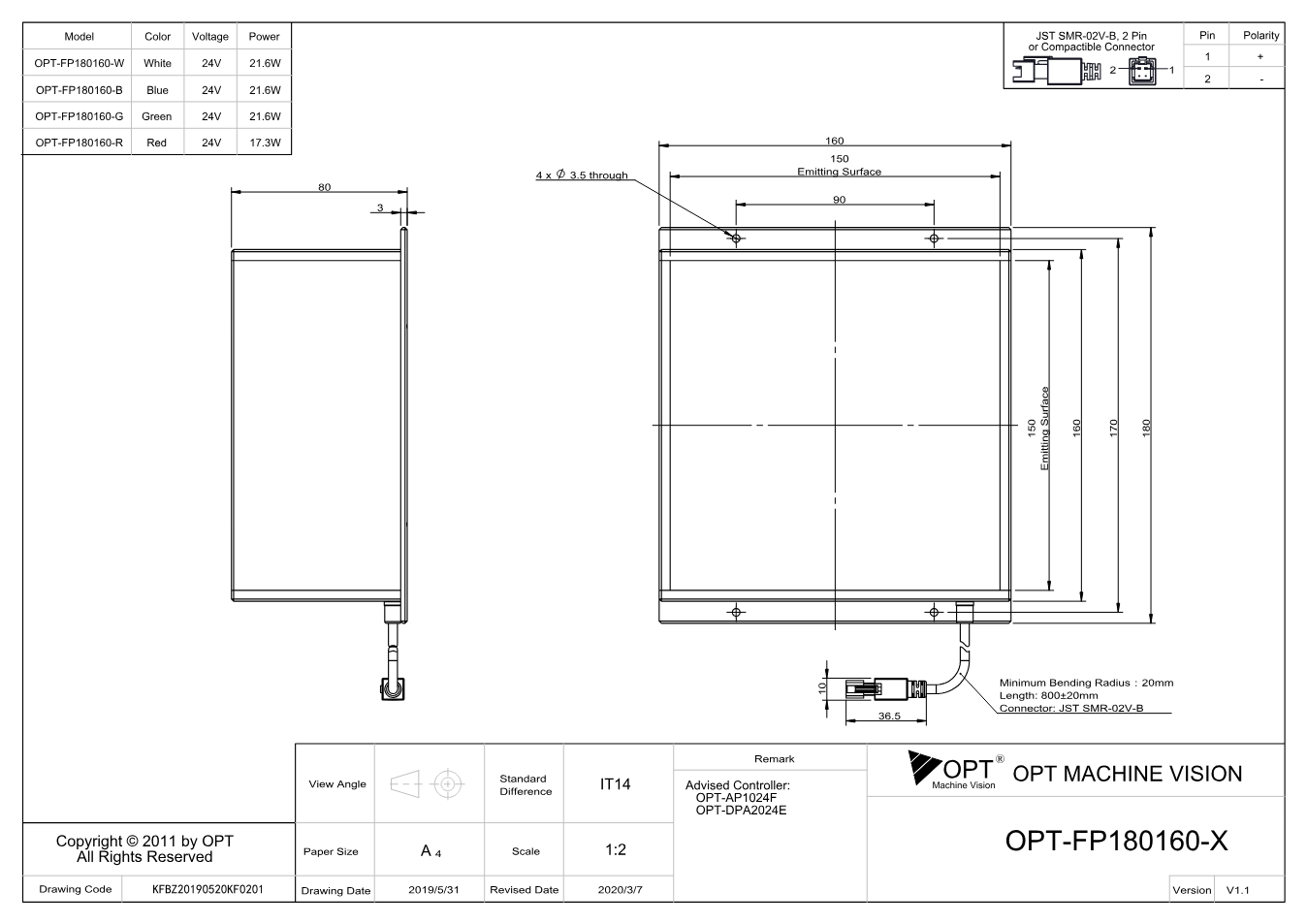

Dimensional drawing
Documents
- Download datasheet
OPT-FP-Serie (kollimierte Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 320 KB
- Download
Maßzeichnung OPT-FP180160 (V1.1) (PDF)
Technical drawing · EN · 157 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-FP180160-B belongs to the lighting range of OPT. light color: blue, input voltage: 24 V, power consumption: 21.6 W (at 24 V).
Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
