Area light OPT-FL9090-B
Manufacturer part number: OPT-FL9090-B
Series: OPT-FL-Serie (direkte Hintergrundbeleuchtungen)
- Lighting type
- Backlight
- Emitting area
- 72 × 82 mm
- Light color
- Blue
- Drive / supply
- 24 V
- Connection
- JST SMR-02V-B
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-FL9090-B |
|---|---|
| Color | Blue |
| Voltage | 24 V |
| Power | 8 W |
| Recommended controller | OPT-DPA2024E |
| Stock Code | 11061562200 |
| Weight(KG) | 0.17 kg |
| Leuchtfläche | 72 × 82 mm |
| Lighting type | Backlight |
| Light guidance / design | Direct-Lit |
| Controller required | Recommended |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
| Min. bending radius of the cable | 20 mm |
| Housing length | 90 mm |
| Housing width | 90 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

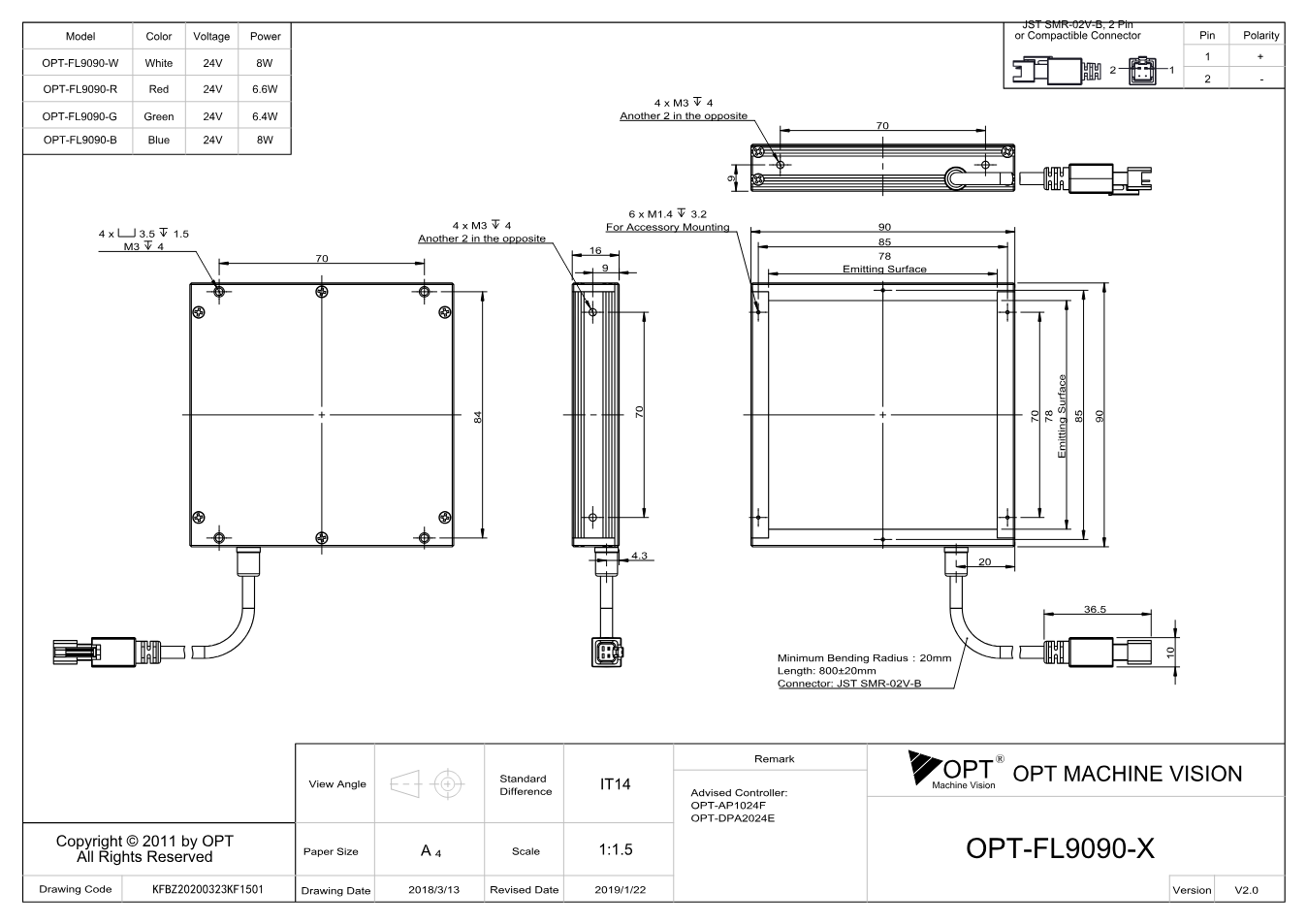

Dimensional drawing
Documents
- Download datasheet
OPT-FL-Serie (direkte Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 2053 KB
- Download
Maßzeichnung OPT-FL9090 (V2.0) (PDF)
Technical drawing · EN · 181 KB
- Download
Maßzeichnung OPT-FL9090 (V1.0) (PDF)
Technical drawing · EN · 175 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-FL9090-B belongs to the OPT-FL series by OPT - backlight. light color: blue, input voltage: 24 V, power consumption: 8 W, weight: 0.17 kg.
The OPT-FL series is OPT's directly lit backlight: the LEDs sit directly behind the diffuser plate, which gives high brightness with a uniformity of over 85 %. Backlighting is the first choice when outlines are measured, edges are inspected or parts are counted - the contrast between object and background is at its maximum.
Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
